VEHICLE OVERVIEW

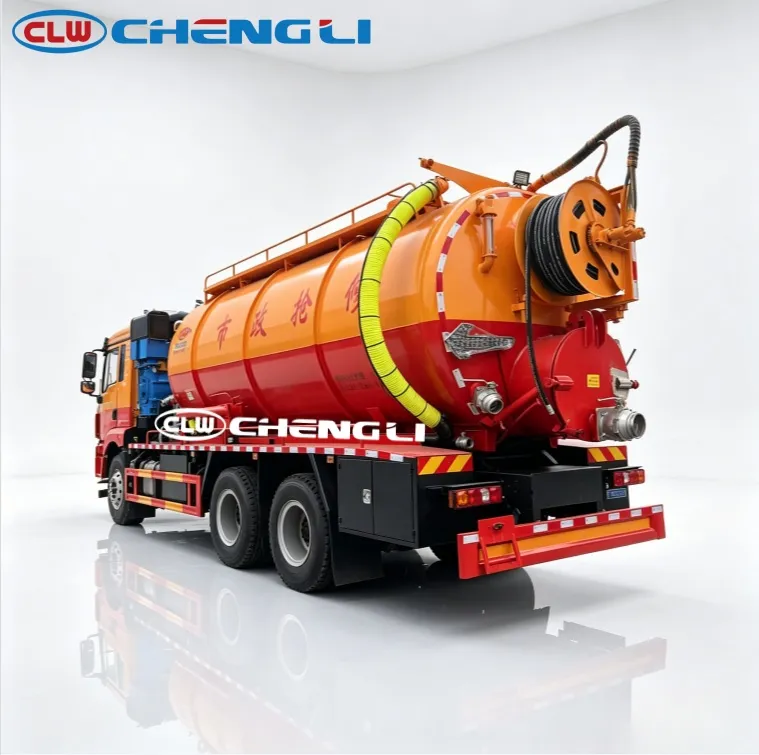

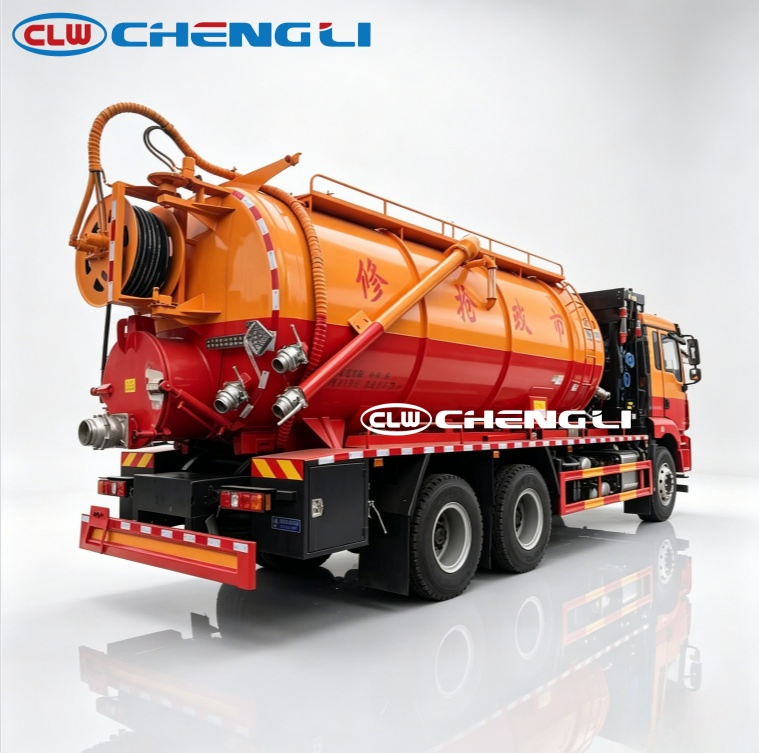

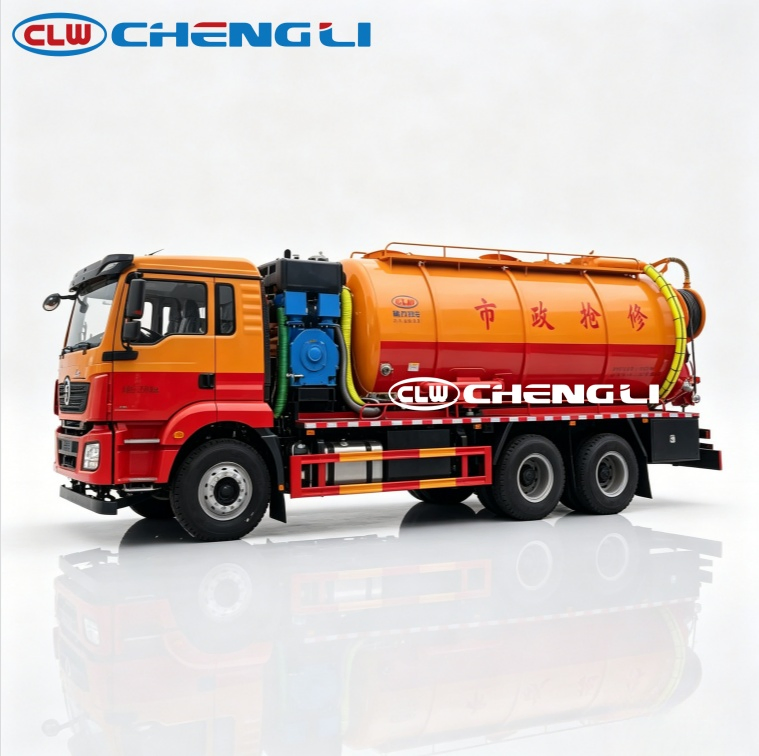

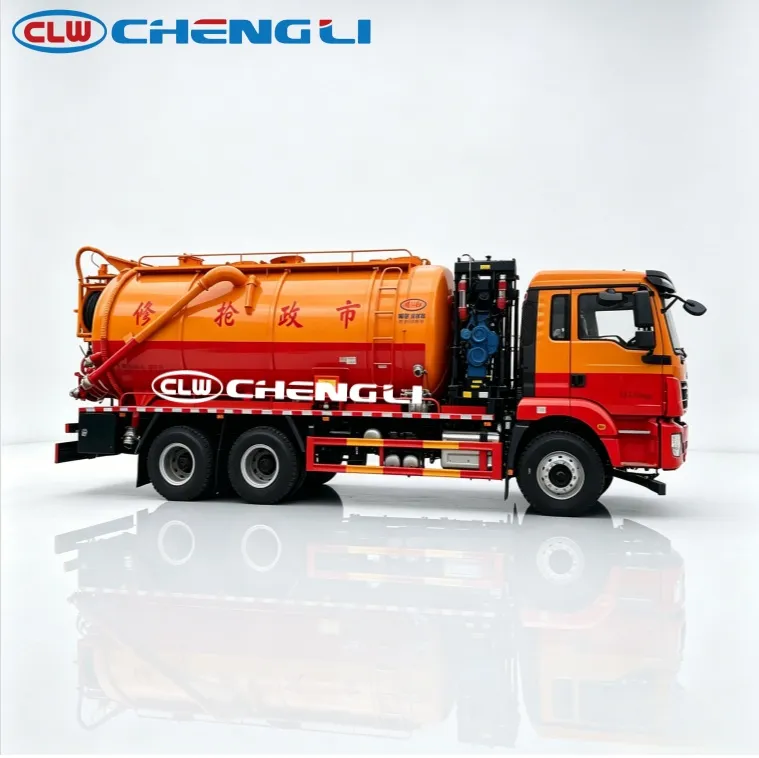

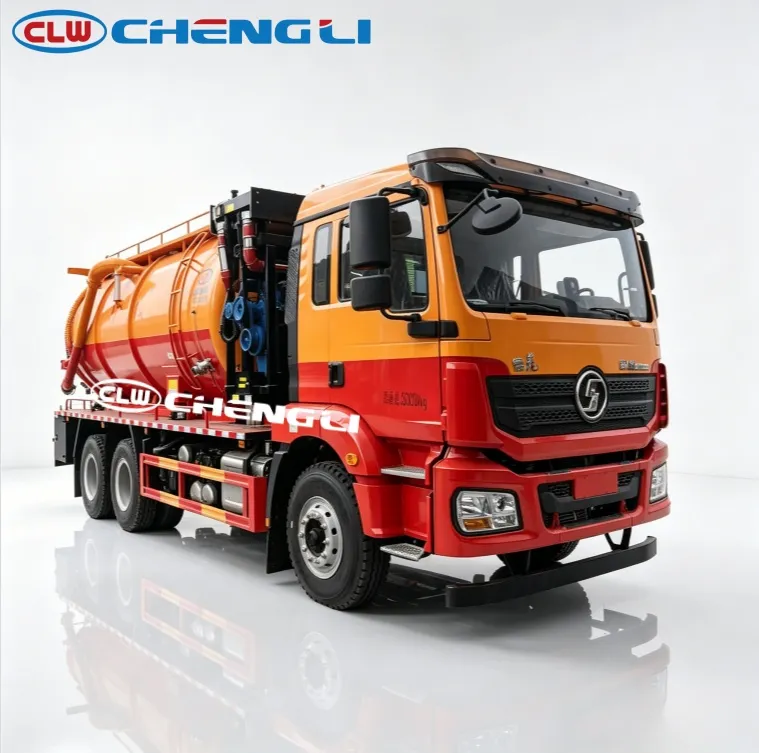

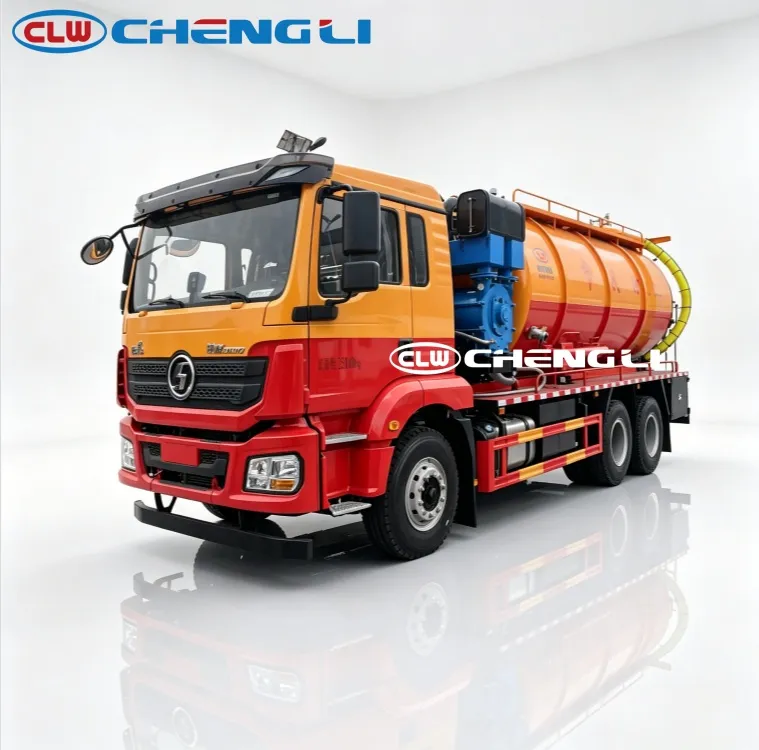

The Shacman 11.5 cbm combined truck cleans and evacuates sewers in a single operation: an 11,500-litre sewage tank collects sludge under vacuum while a 9,000-litre clean water tank supplies the jetting water, on a 6x4 double-layer frame chassis at 25,000 kg GVW.
Typical applications: Sewer dredging, blockage removal, storm-drain and pumping-station maintenance.
KEY FEATURES
What this configuration offers
11.5 + 9 cbm dual tanks
Sludge collection and jetting water in one 25 t chassis.
Epoxy anti-corrosion (listed)
Double-layer epoxy inside and out against sewage attack.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- Shacman Delong 6x4, 4,600+1,350 mm wheelbase
- Dimensions
- 10,200 x 2,550 x 3,750 mm (description; dimension field prints a corrupted value)
- Engine
- 251-350 hp class (listed as range)
- Equipment
- Anti-overflow valve, pressure gauge, liquid sight glass, working light, warning light (listed)
- Transmission
- 10-speed manual (listed)
- Tyres
- 11.00R20 18PR
Body and tank
- Clean water tank
- 9,000 L (listed)
- Coating
- Double-layer epoxy (supplier FAQ)
- Frame
- Double-layer frame supporting both tanks (listed)
- Sewage tank
- 11,500 L Q235 anti-rust
- Water tank
- 9,000 L
Working equipment
- Control
- Manual and electrical
- Optional
- High-pressure cleaning function, hose reel, high-pressure pump
- Standard set
- Anti-overflow valve, pressure gauge, sight glass, lights
Operating performance
- GVW / curb weight
- 25,000 kg / 17,450 kg
- Max speed
- 89 km/h (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Pipe diameters, blockage types, daily route length, water refill access
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How does it clean and evacuate at once?
The vacuum system fills the 11,500 L sludge tank while the 9,000 L water tank feeds the jetting side - one truck, one visit, for sewer dredging and blockage removal.
Is it suited to septic work?
The supplier FAQ states effective capacity after baffles suits septic tanks and sewage wells; confirm jetting fittings for your duty.
What anti-corrosion does the tank have?
The listing describes thickened carbon steel with double-layer heavy-duty epoxy anti-corrosion paint inside and outside against sewage corrosion (supplier FAQ).
What control does the operator use?
Manual and electrical control is listed, with hydraulic tank lifting for discharge.
