VEHICLE OVERVIEW

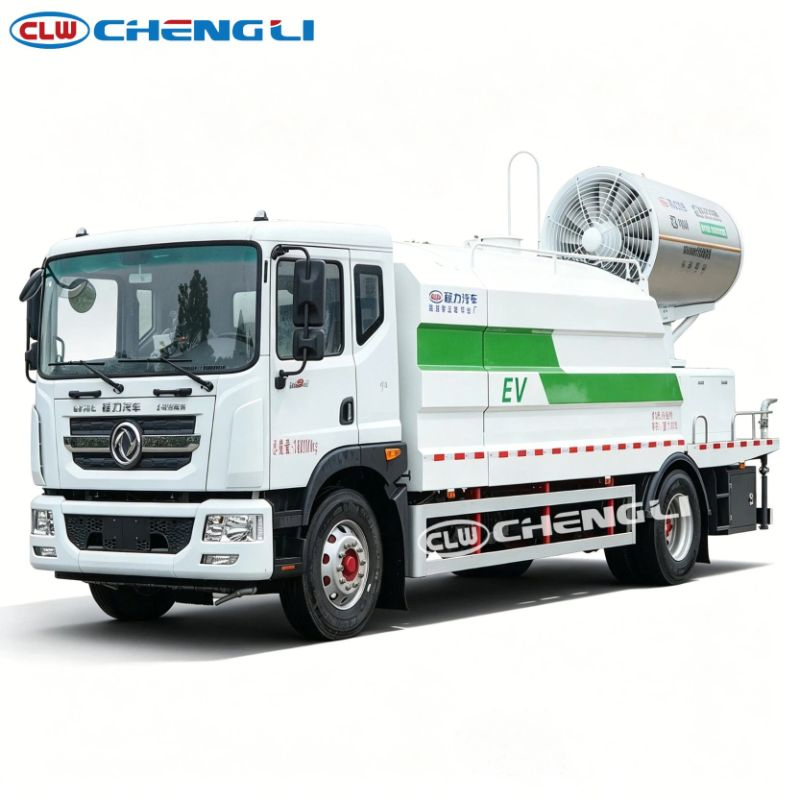

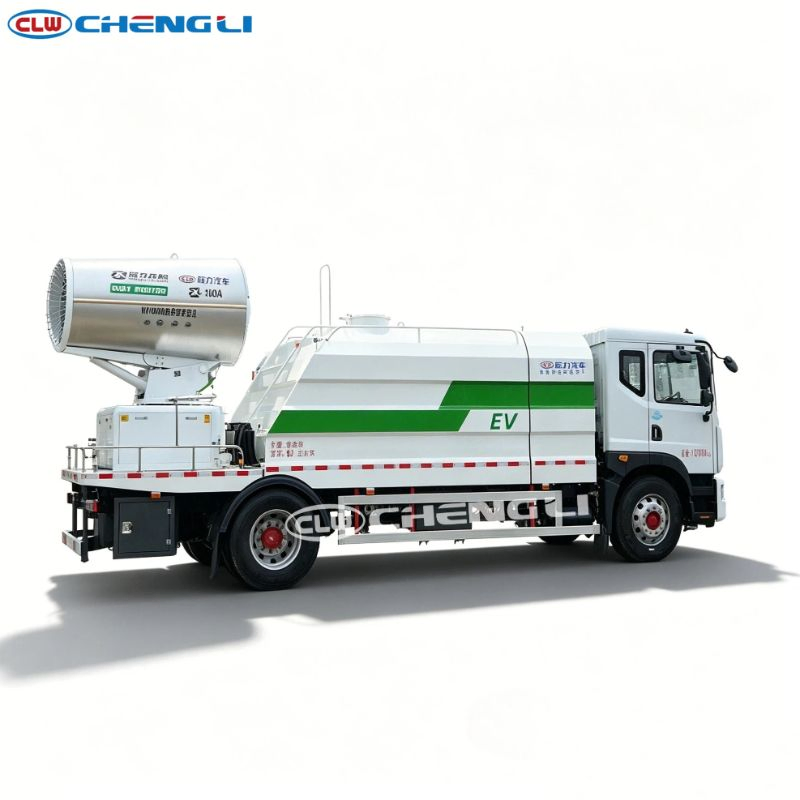

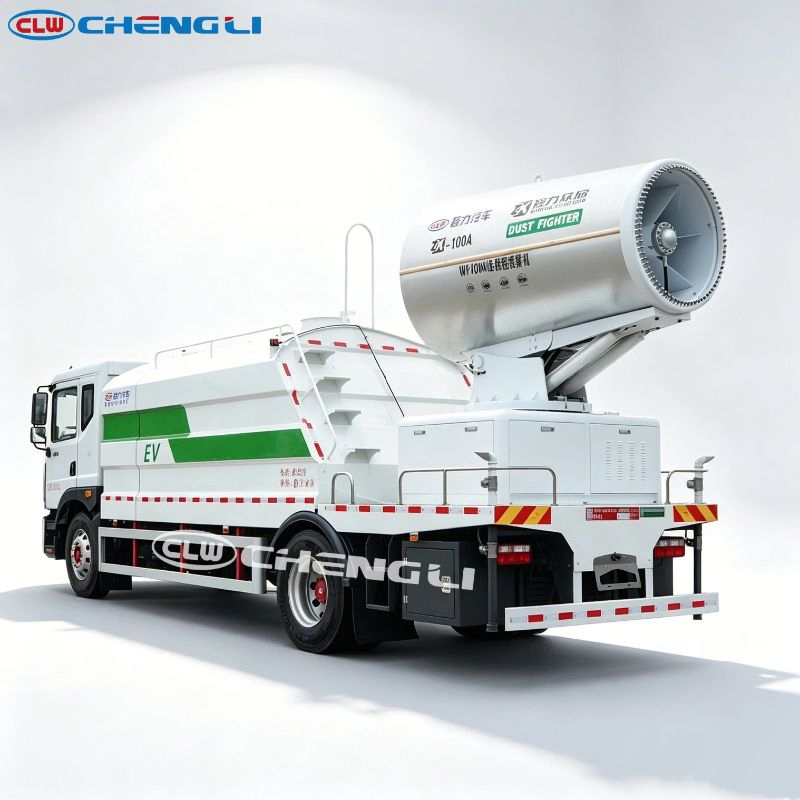

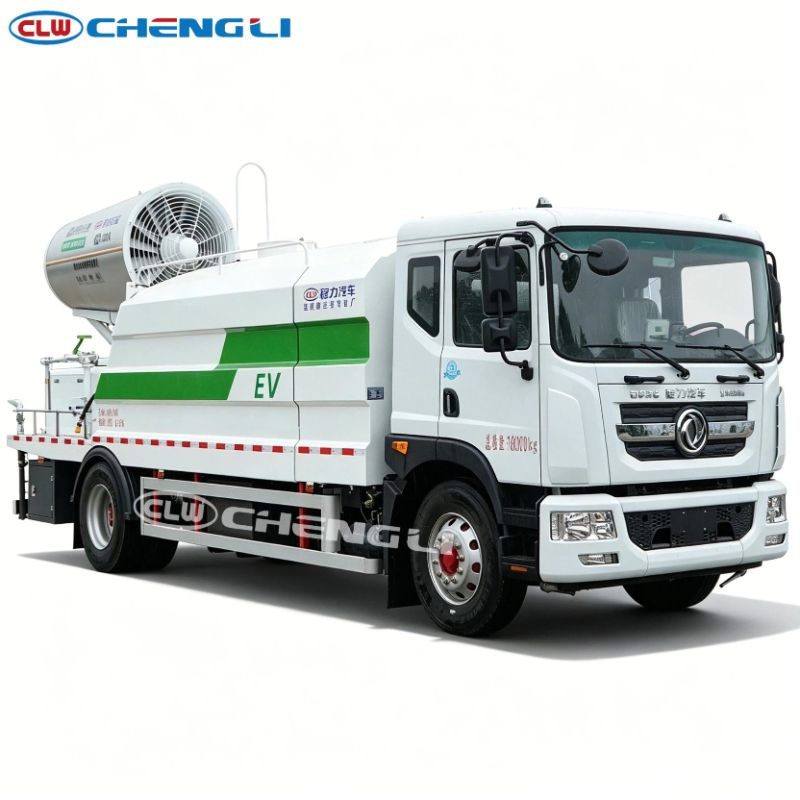

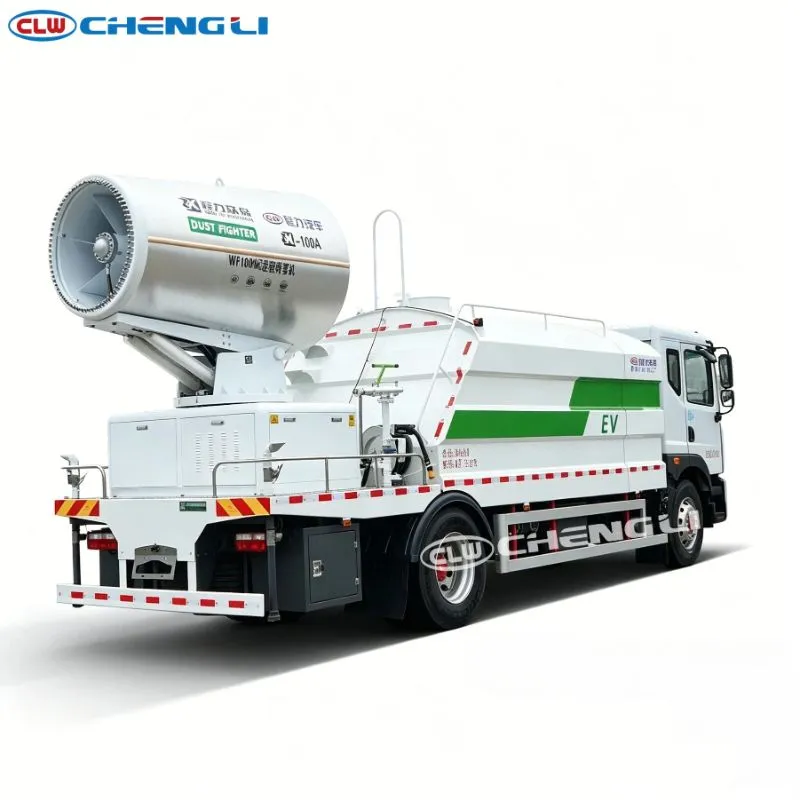

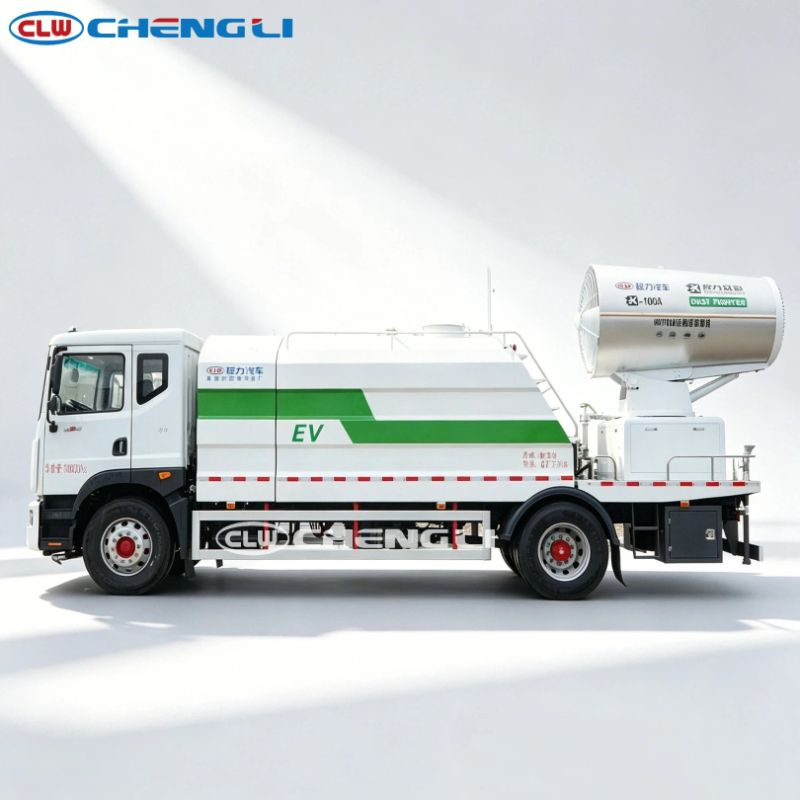

The pure electric fog cannon truck suppresses dust with zero exhaust and low noise: an 11.5 cbm epoxy-coated tank, an optional 80 m or 100 m long-range mist cannon, a CATL 282 kWh lithium-iron-phosphate battery and a 110/180 kW permanent-magnet motor on a Dongfeng 5,300 mm-wheelbase EV chassis.
Typical applications: Dust suppression, road flushing, greening and humidification in emission-regulated zones.
KEY FEATURES
What this configuration offers
80/100 m cannon options
Long-range mist for open construction and mining areas.
Zero-exhaust operation
CATL 282 kWh battery with 110/180 kW motor; access to restricted city zones (listed).
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Cab
- Heating and cooling air conditioning, power windows, central lock (listed)
- Chassis
- Dongfeng EV, 4x2, wheelbase 5,300 mm, axles 6 t front / 10 t rear
- Dimensions
- 8,930 / 9,580 / 9,830 x 2,550 x 3,800 mm (three lengths)
- Tyres
- 295/80R22.5 18PR
Body and tank
- Coating warranty
- 2 years listed
- Tank
- 11.5 cbm, epoxy glass-flake coating
Working equipment
- Battery
- CATL 282 kWh lithium iron phosphate, rated 540 V (listed)
- Control
- T-type pneumatic valves, in-cab
- Controller
- Inovance power controller, rated 540 V (listed)
- Fog cannon
- Optional 80 m or 100 m (listed)
- Motor
- TZ342 permanent-magnet synchronous, peak 110/180 kW, torque 500/1,000 Nm (listed)
- Spray set
- Front flush, rear spray, side sprinklers, greenbelt gun, overhead nozzle
Operating performance
- GVW / curb weight
- 18,000 kg / 10,290 or 10,690 kg (two variants)
- Payload
- 7,515 or 7,115 kg (two variants listed)
Safety
- Braking
- Air cut-off with ABS (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Site dust area, noise/emission rules, charging availability, cannon range needed
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How long can it work per charge?
The CATL 282 kWh battery is listed as supporting all-day continuous operation; runtime depends on cannon and pump duty - confirm duty cycle for your site.
What does it spray besides fog?
Front flushing, rear wide spray, side sprinklers, greenbelt high-pressure gun and overhead watering nozzle, all cab-controlled.
What is the cannon range?
The long-range mist cannon is offered in 80 m or 100 m options (listed).
Why choose electric?
Zero exhaust, low noise and freedom from urban traffic restrictions, per the listing - suited to regulated city zones, residential districts and scenic spots.
