VEHICLE OVERVIEW
Liquid waste, sludge and manure collection on urban and rural routes

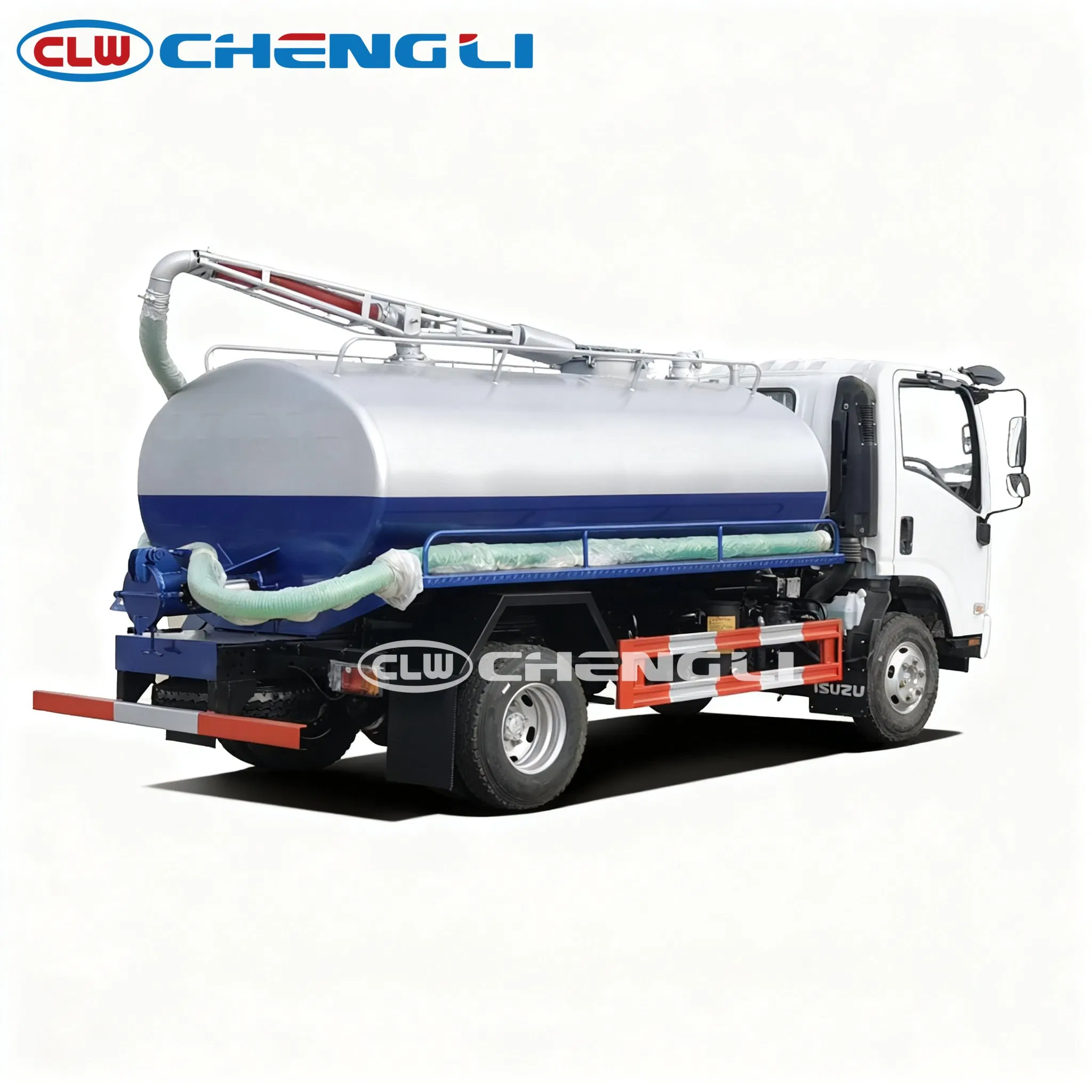

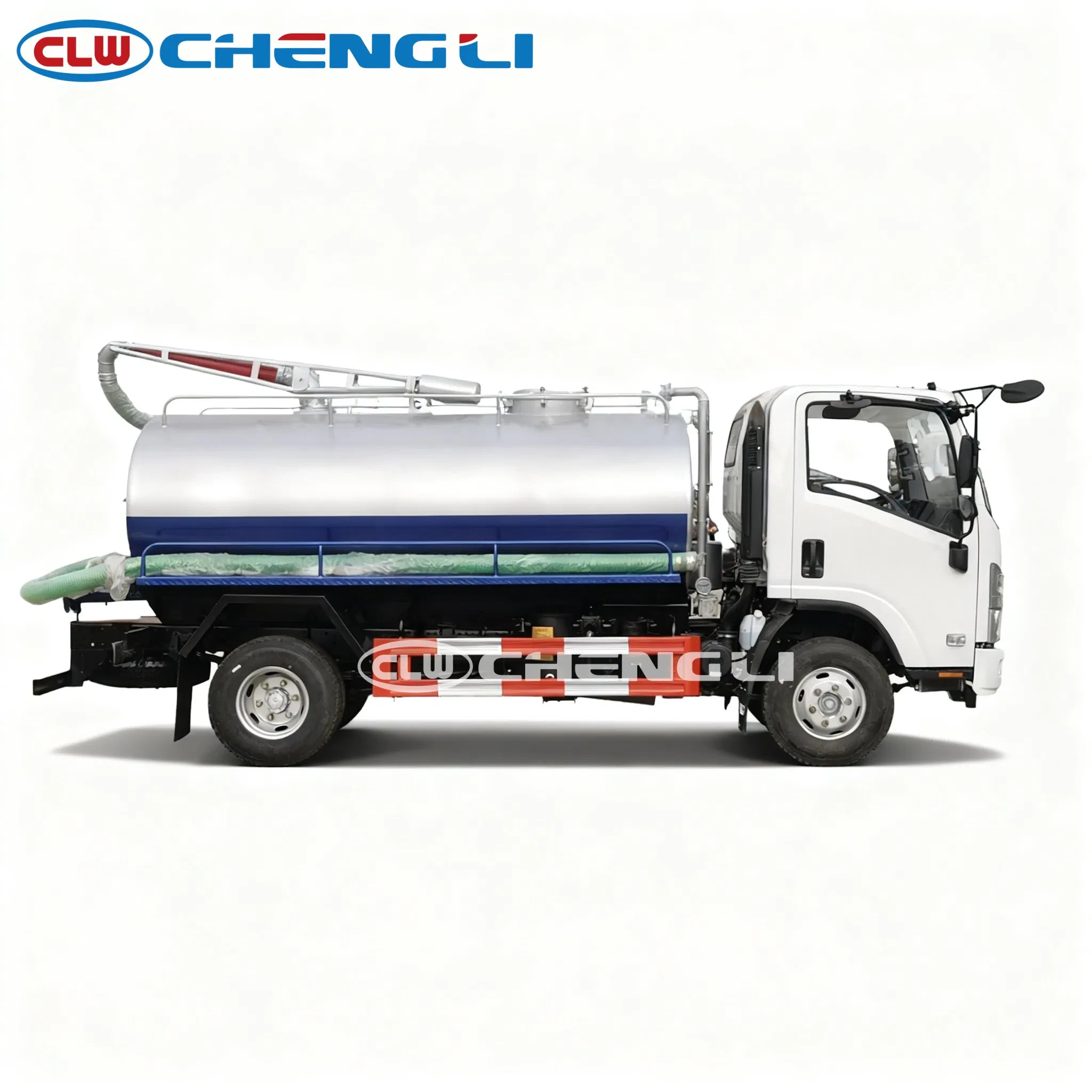

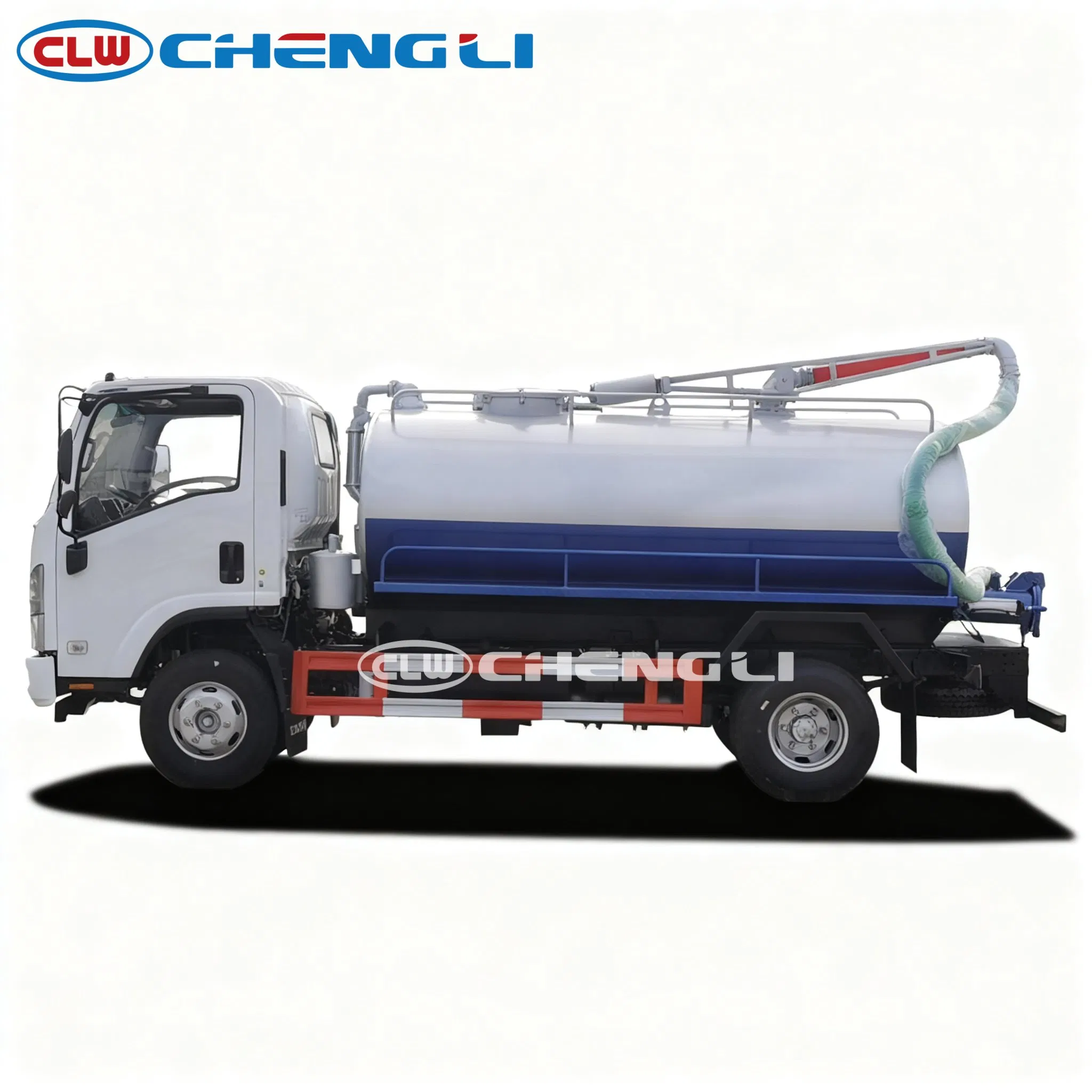

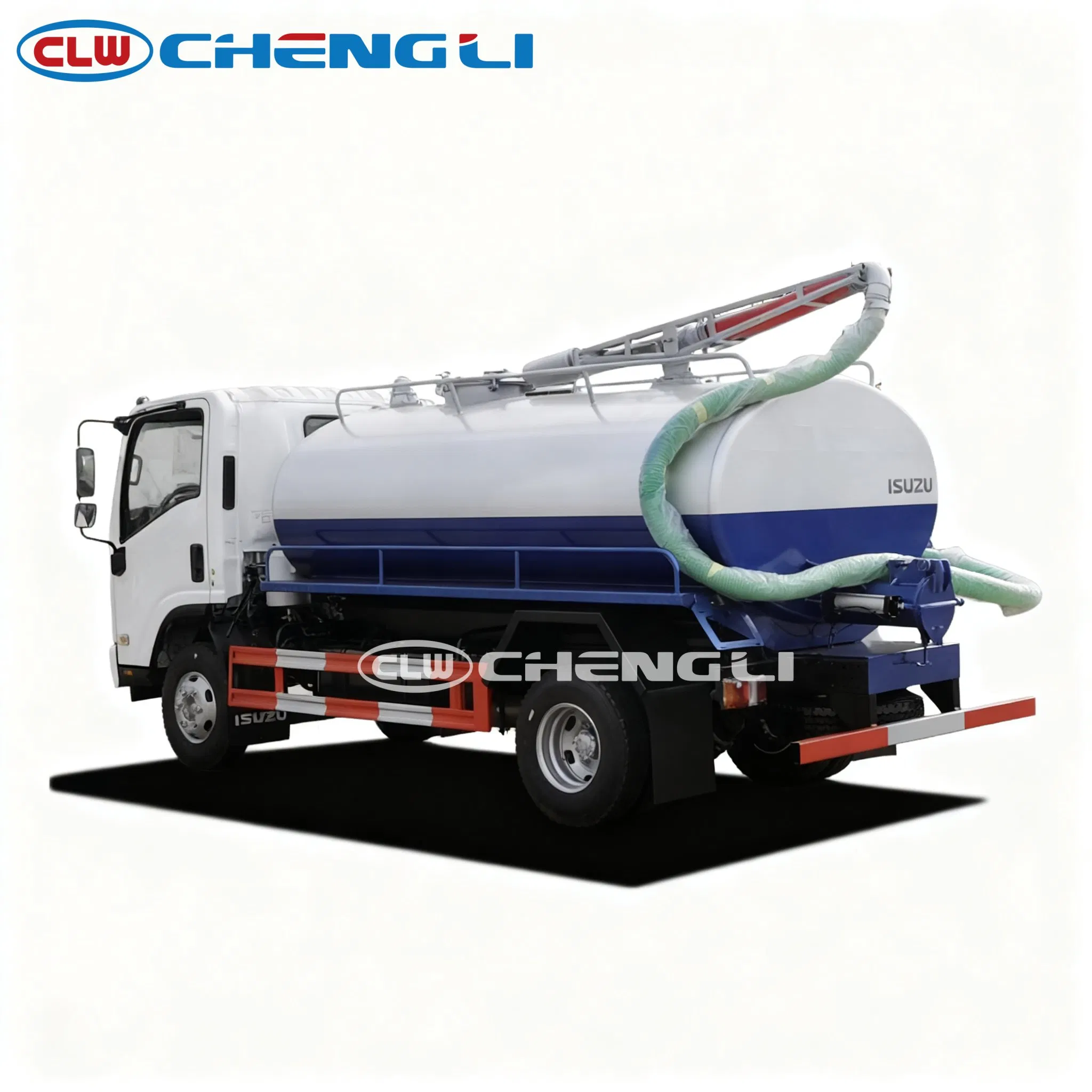

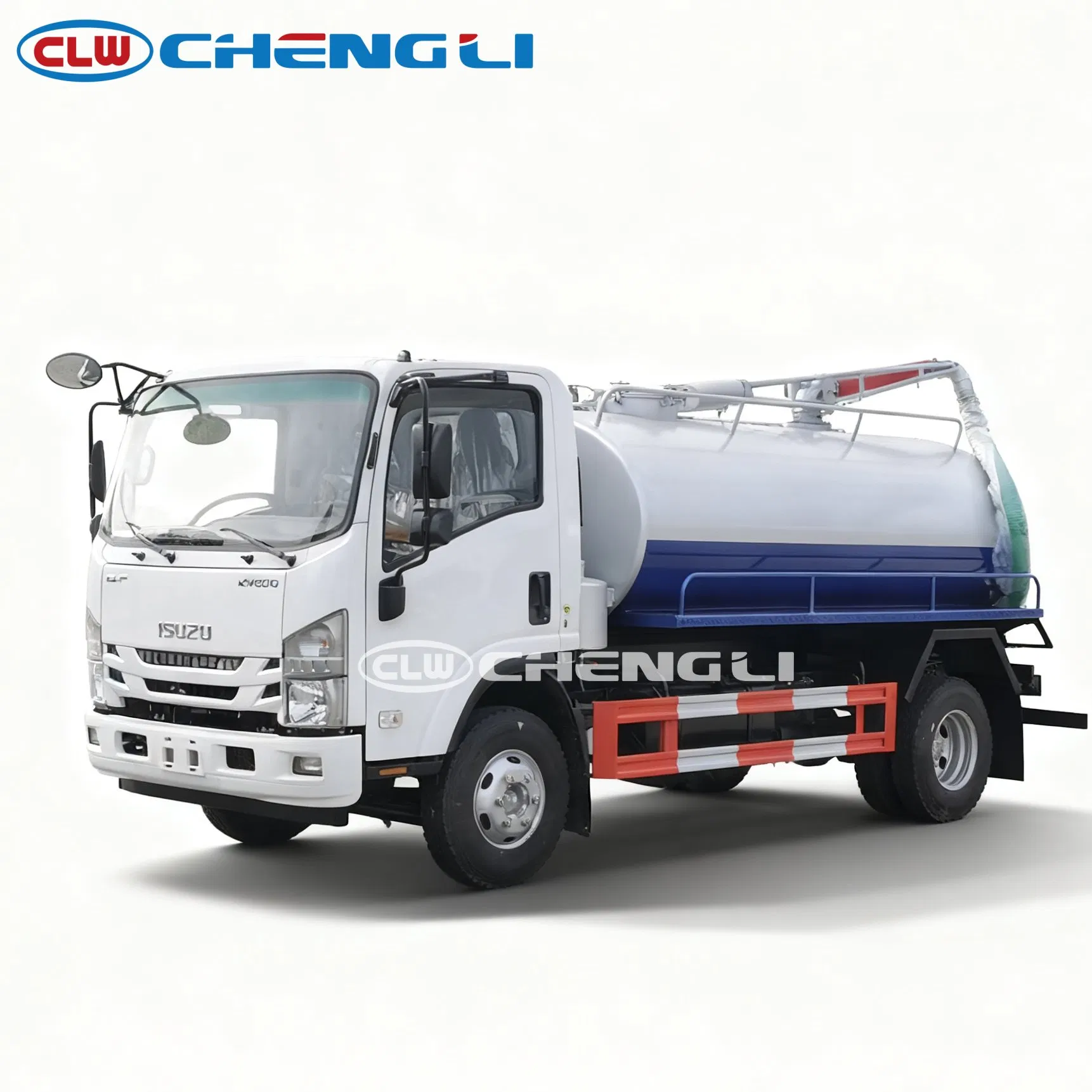

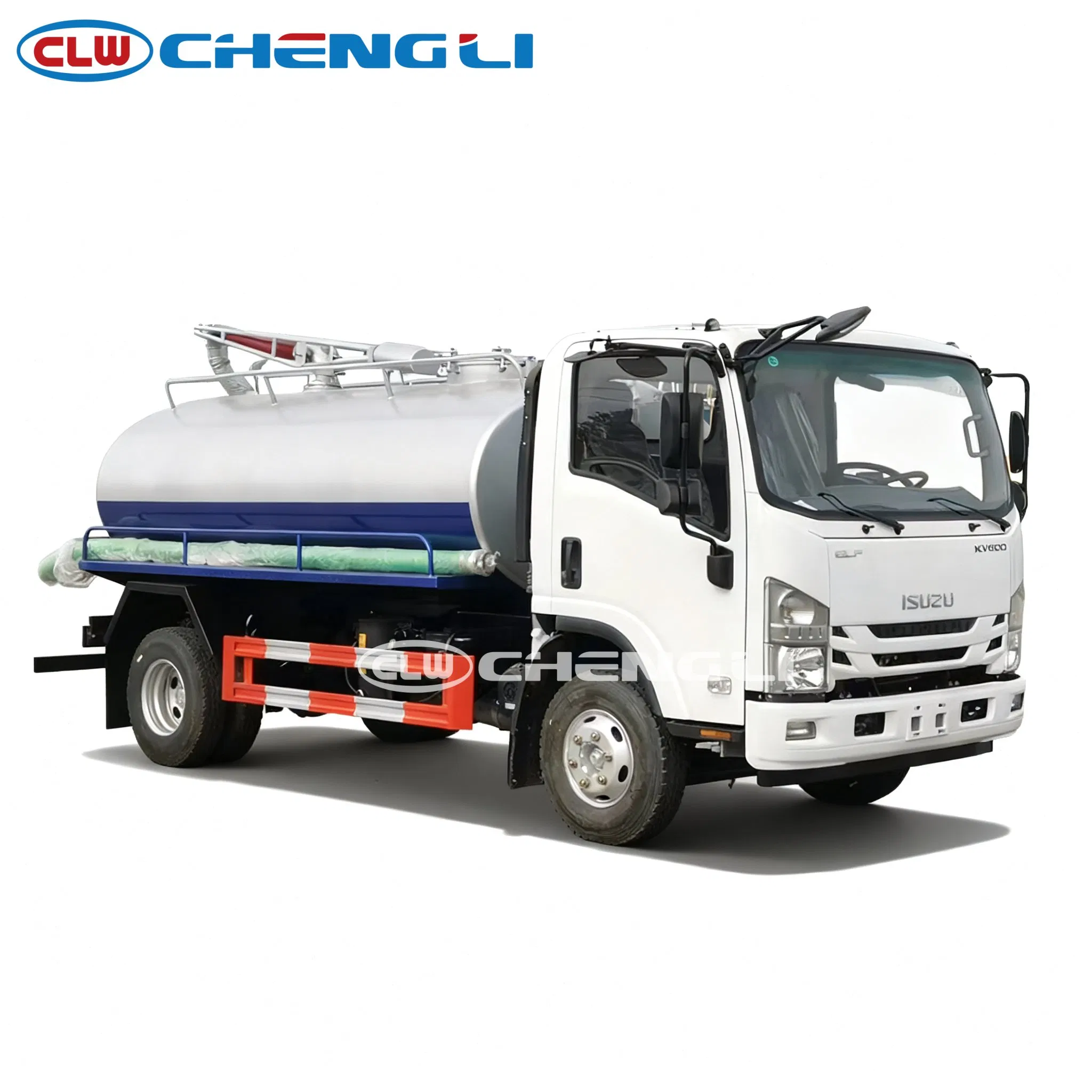

This 6,000 L vacuum sewage truck uses a light-duty Isuzu-class chassis as listed, with a carbon-steel tank for liquid waste, sludge and manure. Confirm the final chassis, rated payload and local licence requirements before ordering.
Typical applications: Collecting and transporting liquid waste, sludge and manure for urban sanitation and farm use; suits operators that want more volume than a mini truck without a full-size lorry.
KEY FEATURES
What this configuration offers
Monitoring fittings included (listed)
Anti-overflow valve, pressure gauge and liquid sight glass support safe daily operation.
Optional jetting package
High-pressure cleaning function, hose reel, water pump and clean water tank can be specified.
Between mini and full-size
A 6,000 L tank on a light-duty chassis fills the gap between 2,200 L mini trucks and 8,000 L two-axle lorries.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- 4x2 light-duty, 3,300 mm wheelbase, 7.50R16LT tyres, 2-3 seats
- Drive
- Diesel, manual, 88 km/h top speed
- Engine options
- Yuchai or Yunnei (supplier options; no single confirmed model)
- Overall dimensions
- 5,995 x 2,080 x 2,640 mm
- Seating capacity
- 2-3 persons (listed)
- Tire specification
- 7.50R16LT (three ply-rating variants listed)
Body and tank
- Engine / gearbox
- Yuchai or Yunnei options (listed); 6-speed manual
- Tank build
- Q235 carbon steel, anti-rust treated, anti-corrosion and waterproof coating (listed)
- Tank capacity
- 6,000 L (fields agree)
- Tank coating
- Anti-corrosion and waterproof coating (listed)
- Tank material
- Q235 carbon steel, anti-rust treated
- Tank size
- 3,500 x 1,800 x 1,300 mm (listed)
Working equipment
- Fittings (listed)
- Anti-overflow valve, pressure gauge, liquid sight glass, working light, warning light
- Working principle
- Vacuum suction tanker with manual and electrical control (listed)
Operating performance
- Curb weight
- 3,895 kg / 4,095 kg (two configurations listed)
- Gross vehicle weight
- 8,270 kg
- Rated payload
- Variants listed at 4,245 / 4,180 / 4,045 / 3,980 kg; the 1 t basic value contradicts these and was excluded - confirm your variant
Operating notes
Nominal tank volume is not payload. Payload variants of 3,980-4,245 kg are listed against an 8,270 kg GVW; plan fills within your confirmed variant and legal axle loads.
Equipment and options
Listed equipment
- Anti-overflow valve
- Pressure gauge
- Liquid sight glass
- Working light
- Warning light
Available choices
- High-pressure cleaning function
- Hose reel
- High-pressure water pump
- Clean water tank
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side, licence class limit.
- Operating brief
- Daily litres, material type (sewage, sludge, manure), suction depth, discharge site.
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the chassis make and model, engine option, payload variant, tank effective volume and vacuum unit on the agreed configuration.
Frequently asked questions
Can it be fitted with jetting equipment?
The listing offers optional high-pressure cleaning function, hose reel, high-pressure water pump and clean water tank; confirm the package and its payload impact in the quotation.
How much can it carry?
The detailed spec lists four payload variants (4,245 / 4,180 / 4,045 / 3,980 kg) against curb weights of 3,895 / 4,095 kg and an 8,270 kg GVW. The basic field value of 1 t contradicts these and was excluded; confirm your variant in the quotation.
Is this a genuine Isuzu chassis?
The listing titles an Isuzu-class 6-cbm light-duty chassis (spelled with a digit in the source listing). Verify the exact chassis make and model in the quotation before relying on the brand.
What engine and gearbox are listed?
Engine options are listed as Yuchai or Yunnei with a 6-speed manual gearbox; the supplier has not published a single confirmed engine model.
What tank capacity does it have?
The source lists 6,000 L consistently across its basic tank fields and the detailed tank specification (3,500 x 1,800 x 1,300 mm tank size).
