VEHICLE OVERVIEW

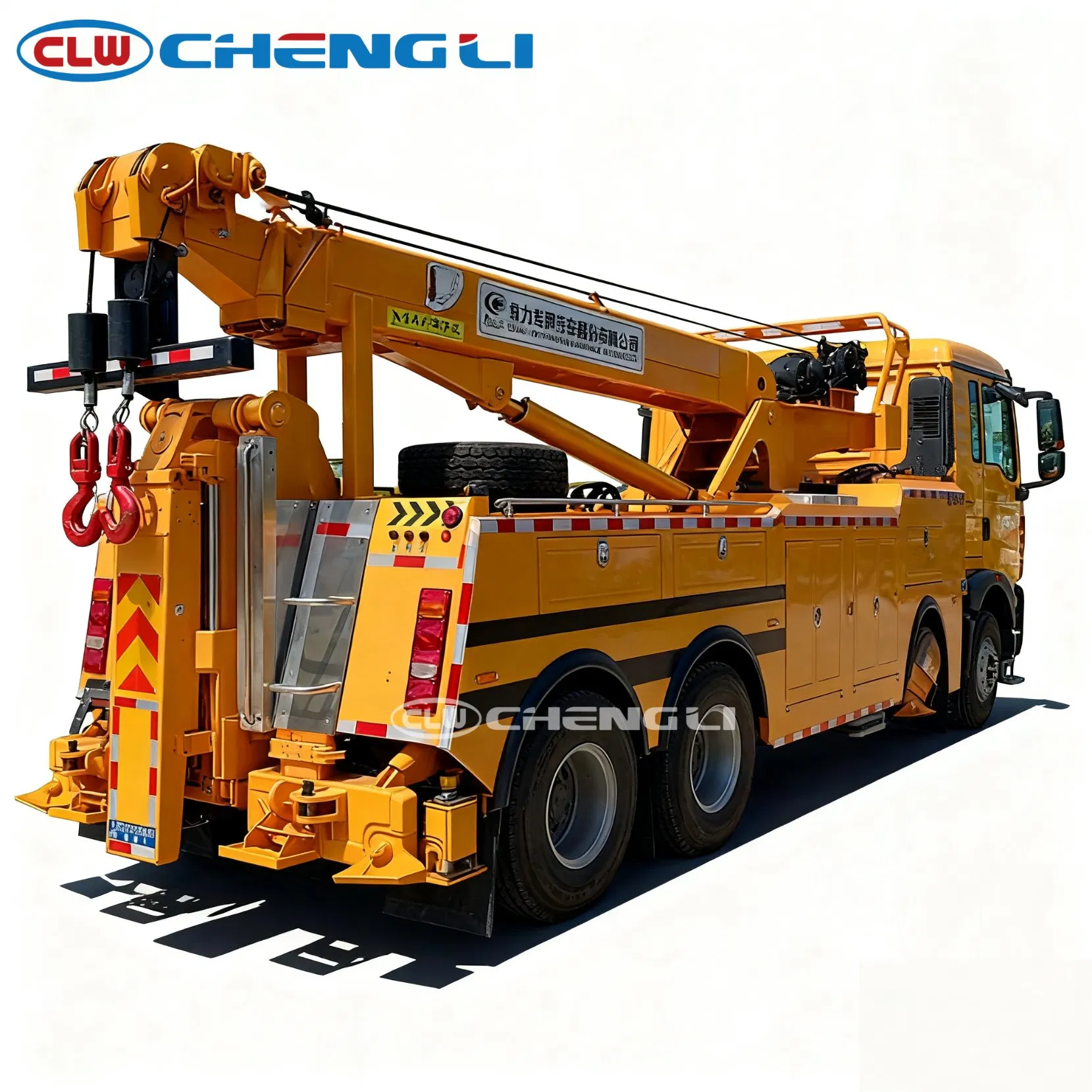

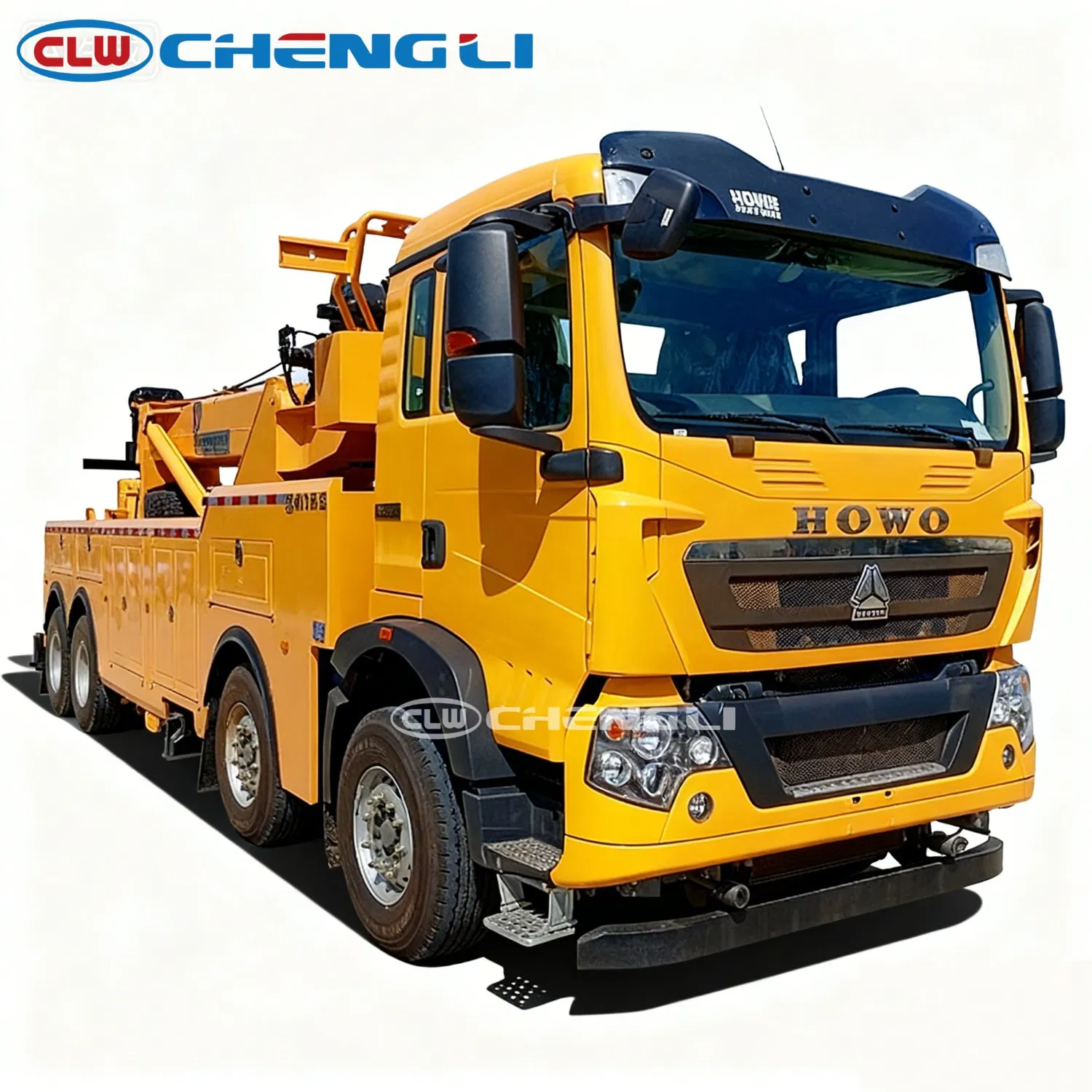

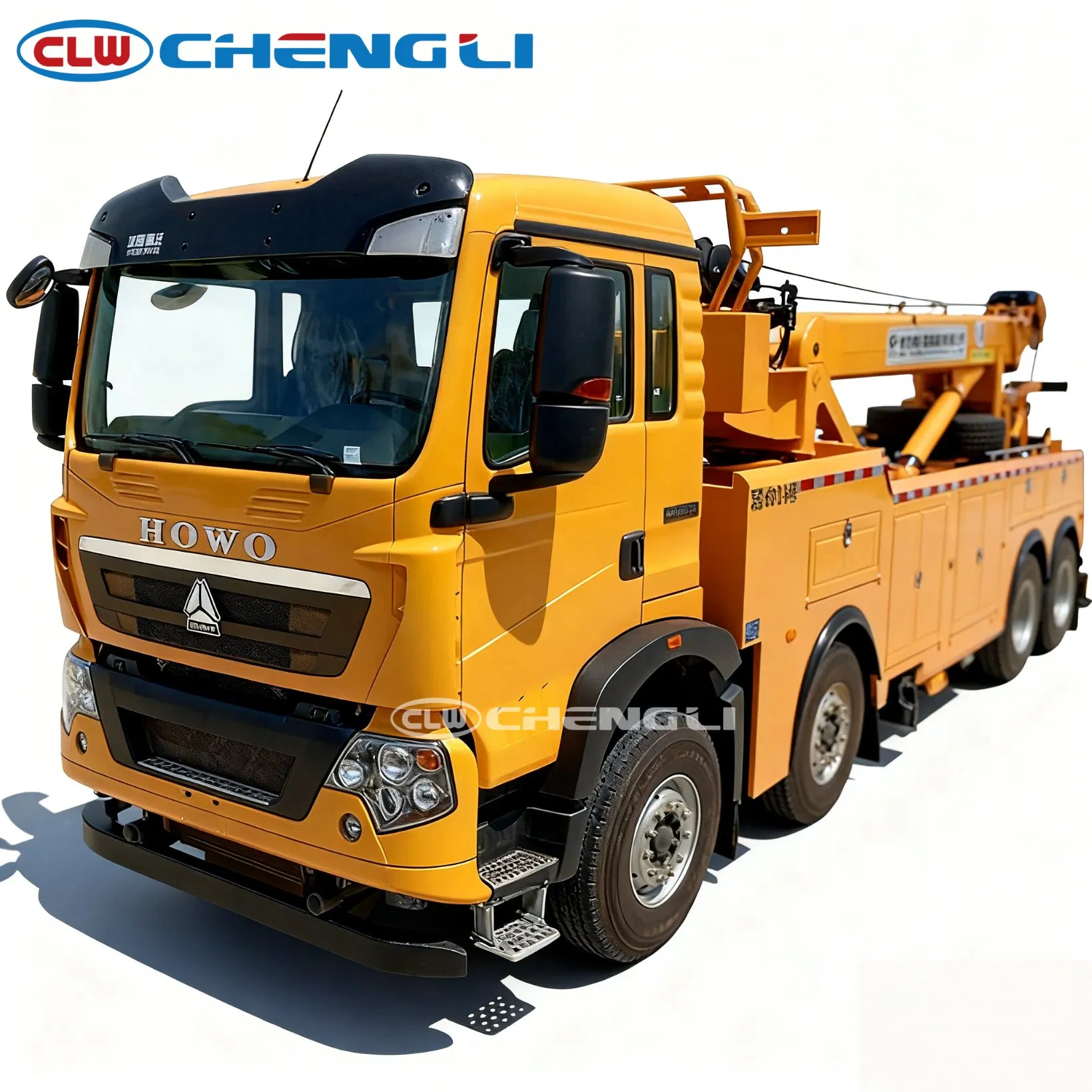

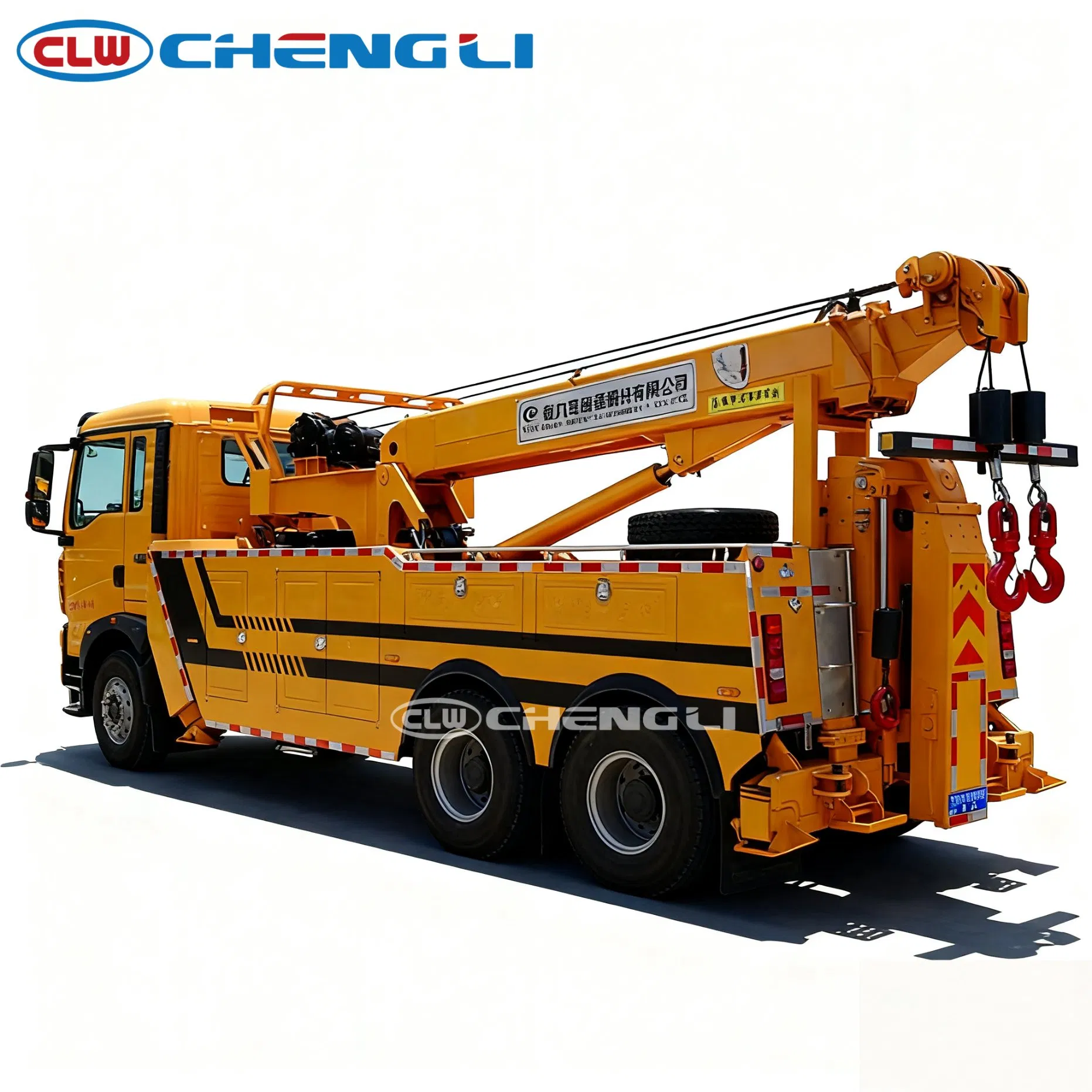

The HOWO 6x4 heavy wrecker recovers trucks, coaches and plant: a 20-ton integrated body with two-section hexagonal boom and reinforced three-section tow arms, dual 10-ton hydraulic winches with 45 m of wire rope, bilateral control stations plus triple wireless remote, on a 350 hp MC07H.35-60 chassis.

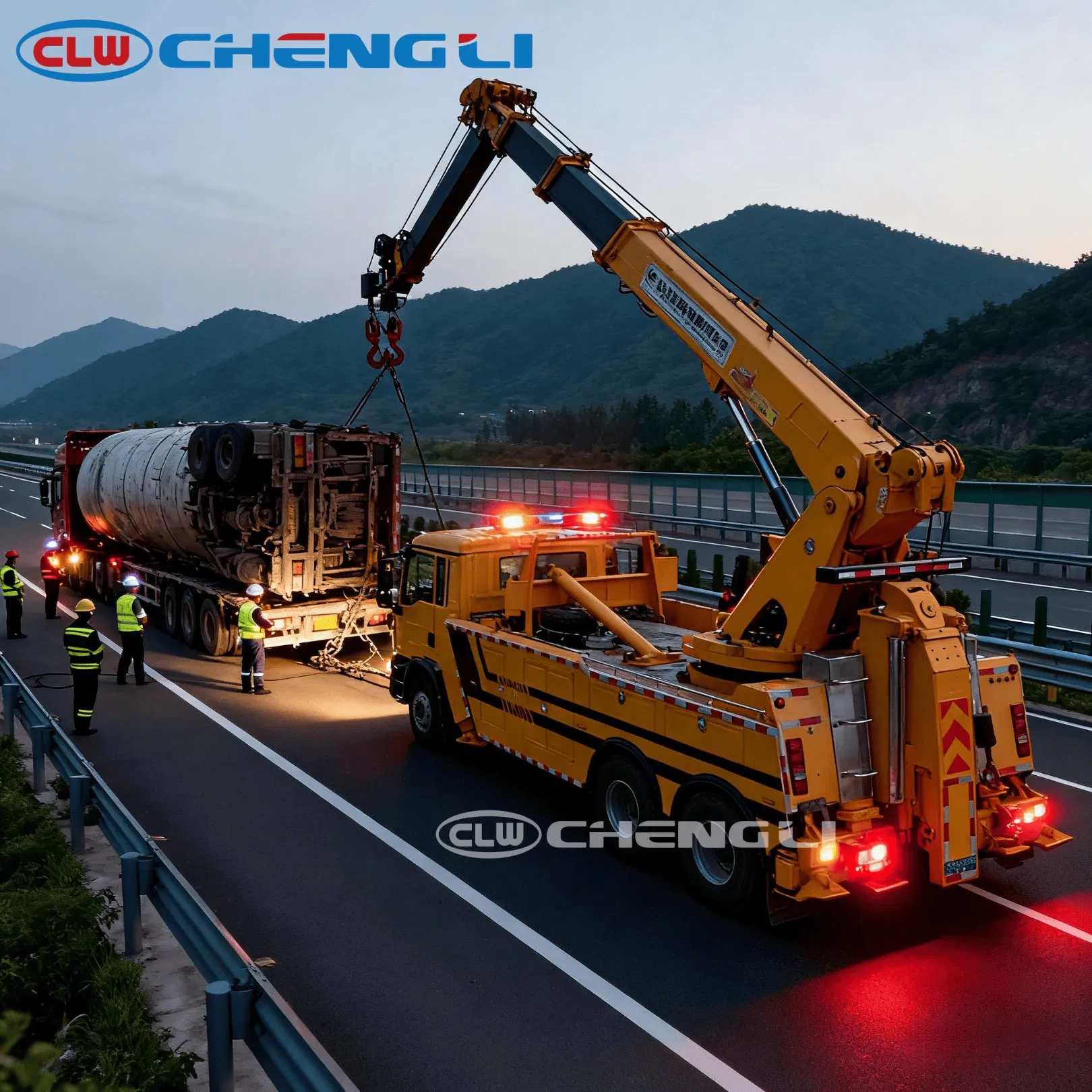

Typical applications: Recovery of heavy trucks, coaches and plant on highways and industrial routes.
KEY FEATURES
What this configuration offers
Triple wireless remote
Plus bilateral linked stations for precise positioning.
Dual 10 t winches, 45 m rope
Pulling power for laden truck recovery.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- VGD75 front / MAT16ZG tandem rear, axle ratio 4.42, 11/10 multi-leaf springs
- Chassis
- HOWO ZZ5447TXFV466MF1, 6x4, wheelbase 5,800+1,350 mm
- Engine
- Sinotruk MC07H.35-60, 350 hp (listed)
- Transmission
- HW19710 10-speed manual with HW70 PTO (listed)
Body and tank
- Body
- 20 t integrated, split compartments
- Tyres / fuel tank
- 12.00R20 / 400 L
- Wrecker body
- 20-ton integrated body with split compartments (listed)
Working equipment
- Boom
- Two-section hexagonal boom (listed)
- Control
- Bilateral stations, triple wireless remote
- Hydraulics
- WanYi double pump, HYDRAL valve

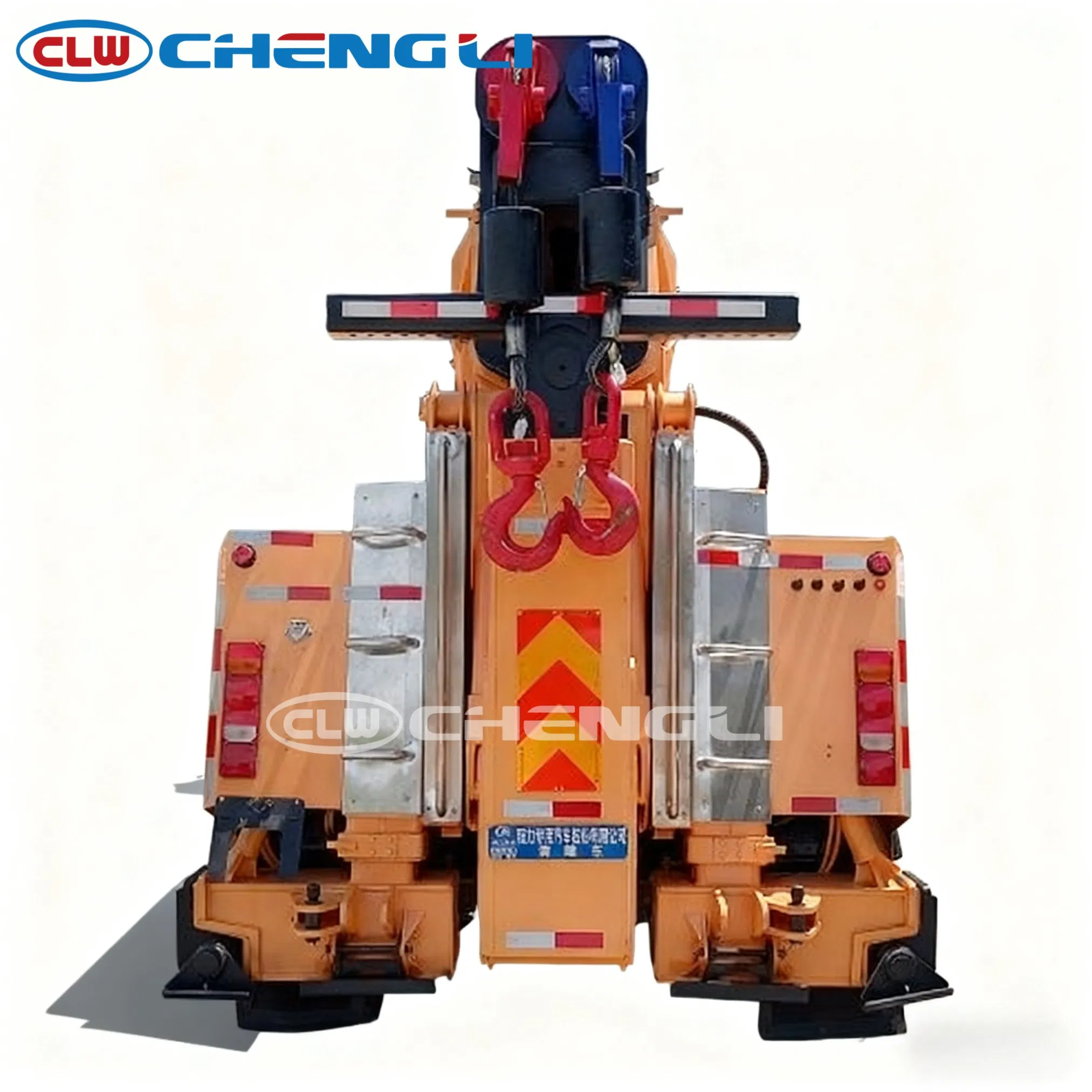

- Tow arms
- Three-section reinforced type with reinforced vertical arm (listed)
- Winches
- Dual 10 t hydraulic, 45 m rope
Operating performance
- GVW / curb weight
- 25,000 kg / 21,000 kg
- Recovery weight
- Approximately 40-80 tons depending on towed vehicle (listed)
Safety
- ABS
- 4S/4M (listed)
- Braking
- ABS 4S/4M; cab electrophoresis anti-corrosion (listed)
- Corrosion
- Cab electrophoresis (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Vehicles to recover (trucks, buses, plant), operating territory
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How is it controlled?
From bilateral linked control stations or a triple wireless remote (listed).
What can it recover?
Heavy trucks, coaches and plant equipment: maximum towing and recovery weight is listed at about 40-80 tons depending on the towed vehicle.
What is the boom?
A two-section hexagonal boom with a reinforced three-section tow arm and vertical arm.
What winches does it have?
Dual 10-ton hydraulic winches with 45 m of wire rope each, powered by a WanYi double pump through an imported HYDRAL valve.
