VEHICLE OVERVIEW

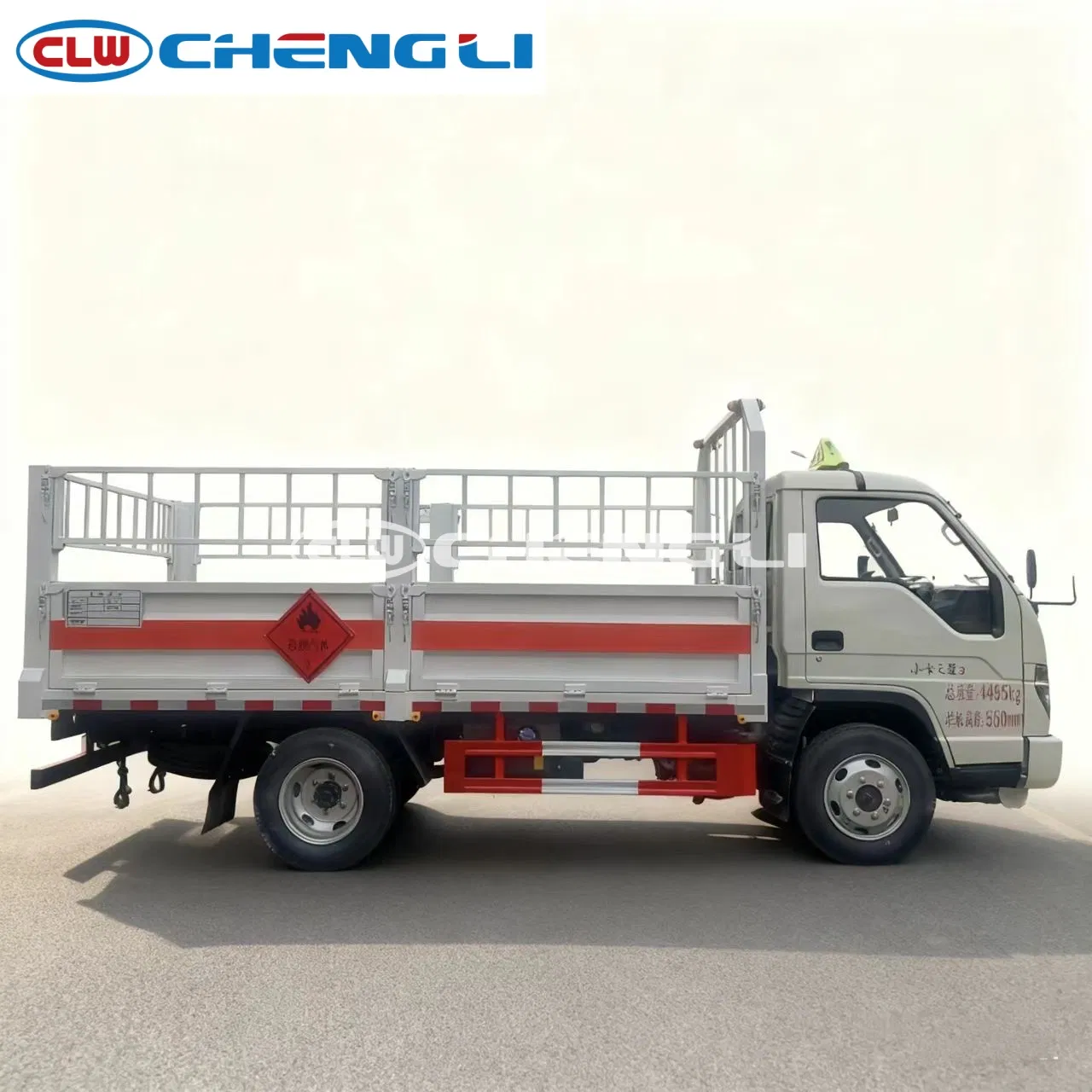

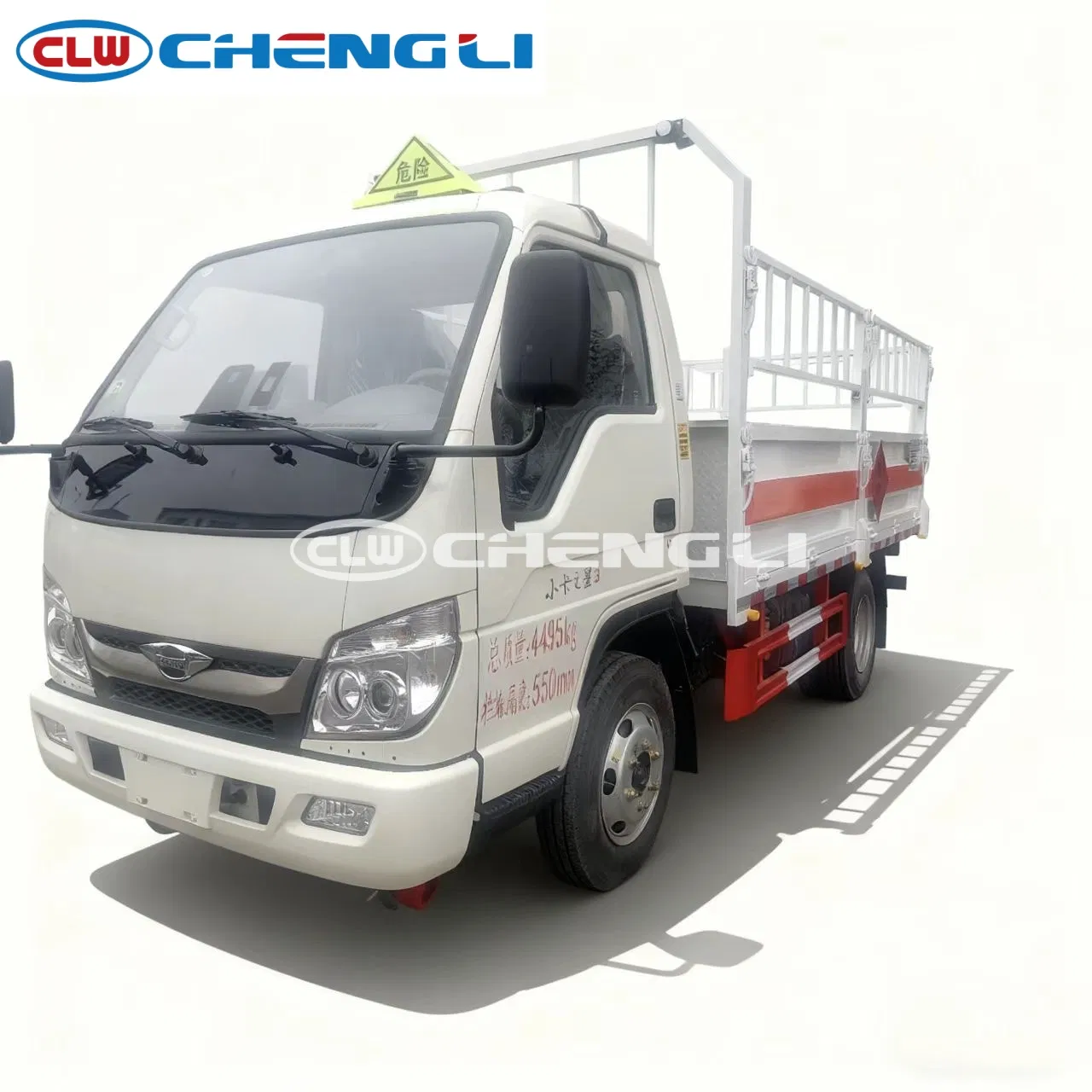

The open-body cylinder delivery truck moves bottled gas with a barrier-type cargo body: an open top and barred sides and rear make loading and unloading convenient and let the load ventilate and stay visible in transit. Payload variants of 1,800-2,023 kg ride on a 4,495 kg GVW light chassis, with a fire extinguisher fitted.
Typical applications: Bottled gas cylinder delivery with convenient loading and ventilated transit.
KEY FEATURES
What this configuration offers
Fire extinguisher fitted
Listed as standard equipment for gas-cylinder duty.

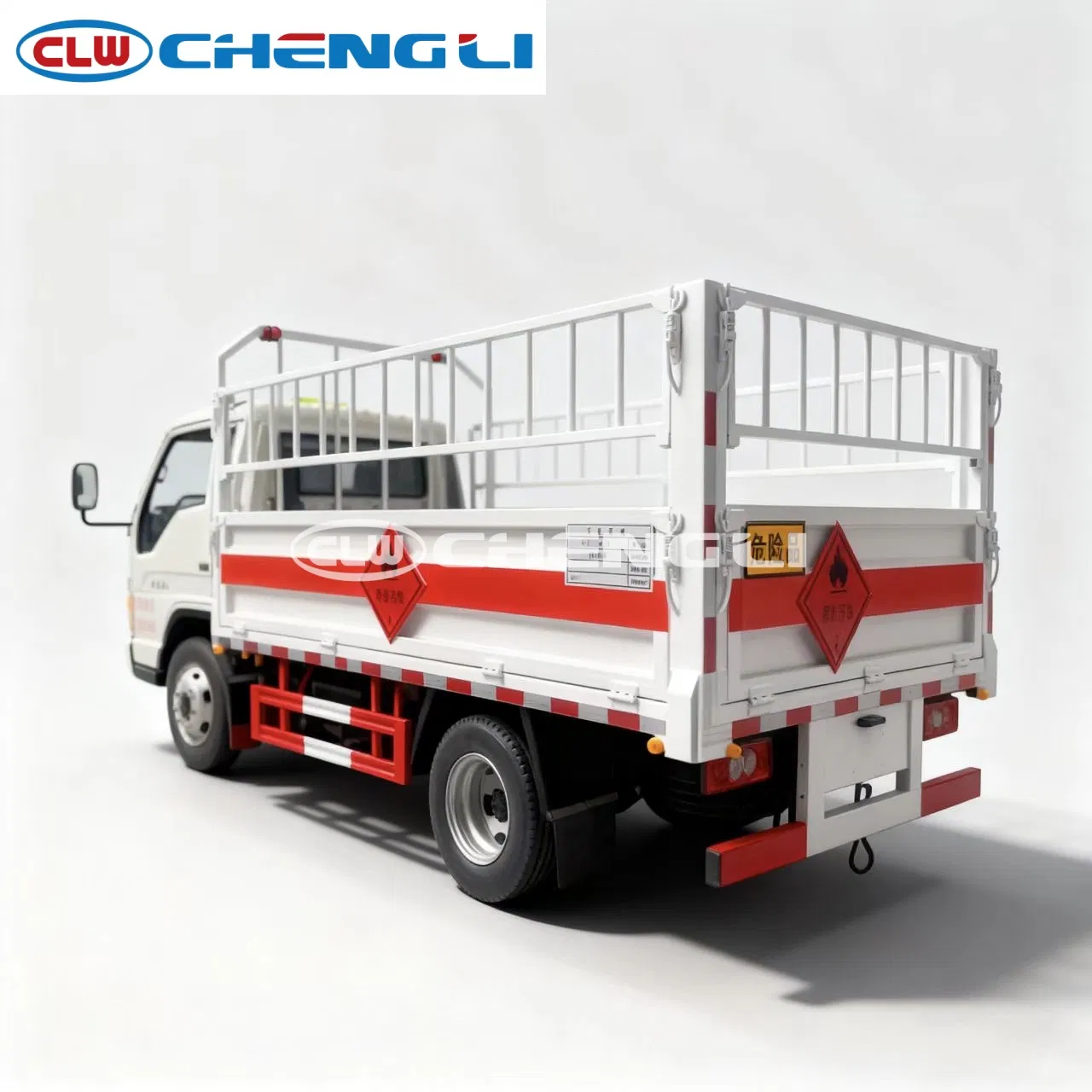

Barrier body for cylinders
Open top and barred sides for easy handling, ventilation and observation in transit.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- CL5042TQP6BXW, 4x2, wheelbase 2,800 / 2,850 / 3,360 mm options
- Engine
- Q23-115E60 diesel, below 150 hp (listed)
- Tyres
- 6.50R16LT 10PR or 195/75R16 10PR
Body and tank
- Body
- Open top with barrier-type sides and rear (listed); lengths 3,400-3,750 mm, widths 1,850/1,940 mm, side heights 400-550 mm
- Body sizes
- L 3,400-3,750 mm / W 1,850-1,940 mm / H 400-550 mm options
- Body type
- Open top, barrier-type sides and rear
Operating performance
- GVW / curb weight
- 4,495 kg / 2,342-2,565 kg (variants)
- Max speed
- 80 km/h (listed)
- Payload
- 1,800 / 1,865 / 2,023 kg (three variants)
Safety

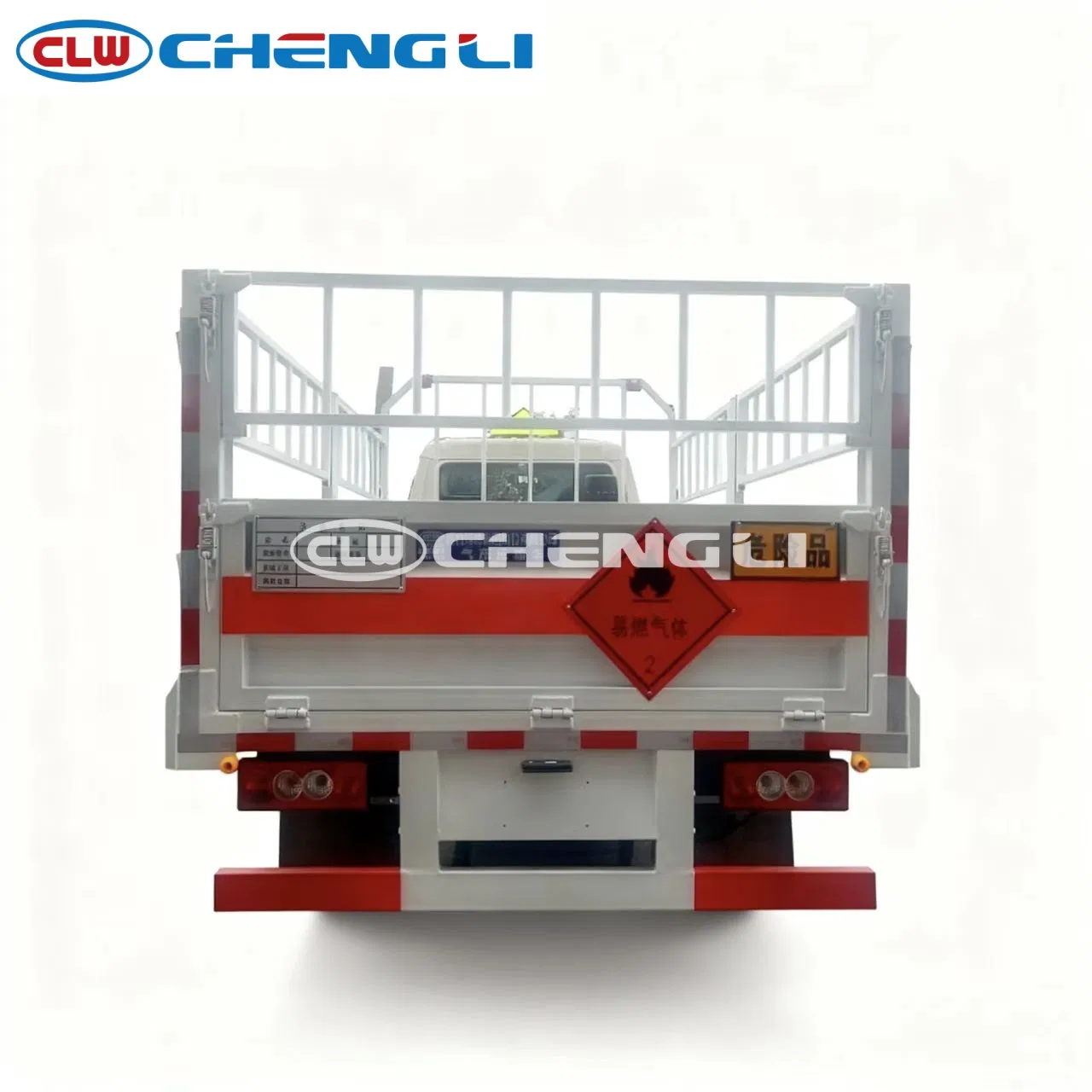

- Rear guard
- Q235B underrun guard, 120 mm section, 435 mm ground clearance (listed)
- Safety fitting
- Fire extinguisher fitted (listed)
Equipment and options
Listed equipment
- Barrier body
- Fire extinguisher
- Q235B rear underrun guard
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Daily cylinders delivered, body size needed, ventilation needs
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How much can it carry?
Payload variants of 1,800, 1,865 and 2,023 kg are listed against the 4,495 kg GVW.
What safety fitting is included?
A fire extinguisher is fitted as standard in the listing.
Which body sizes are offered?
Lengths 3,400-3,750 mm, widths 1,850 or 1,940 mm, side heights 400-550 mm.
Why an open barrier body?
The open top and barrier sides make cylinder loading and unloading convenient and allow ventilation and observation of the load in transit - the standard layout for bottled-gas work.
