VEHICLE OVERVIEW

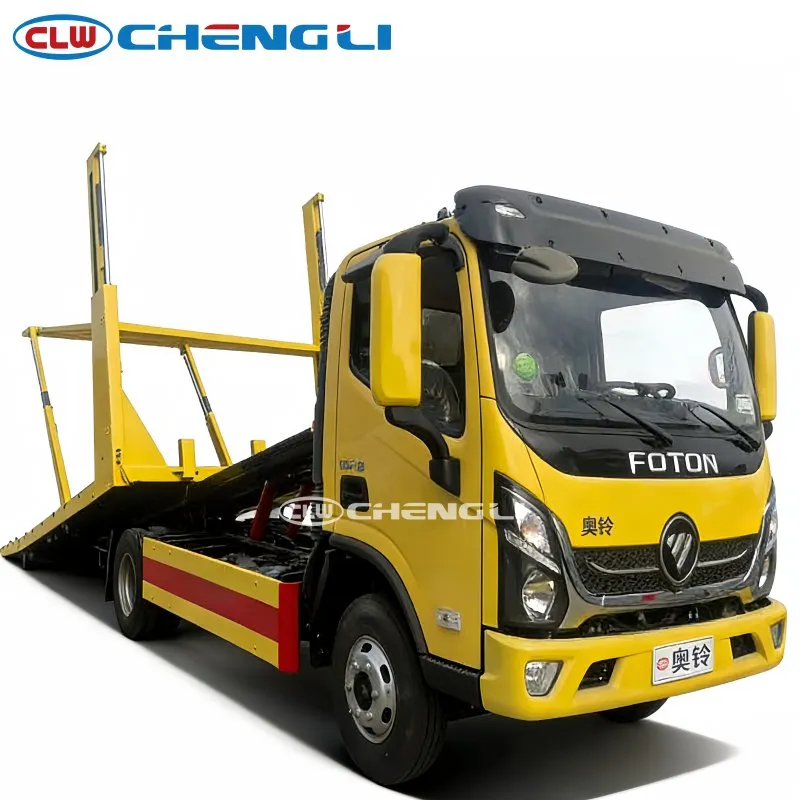

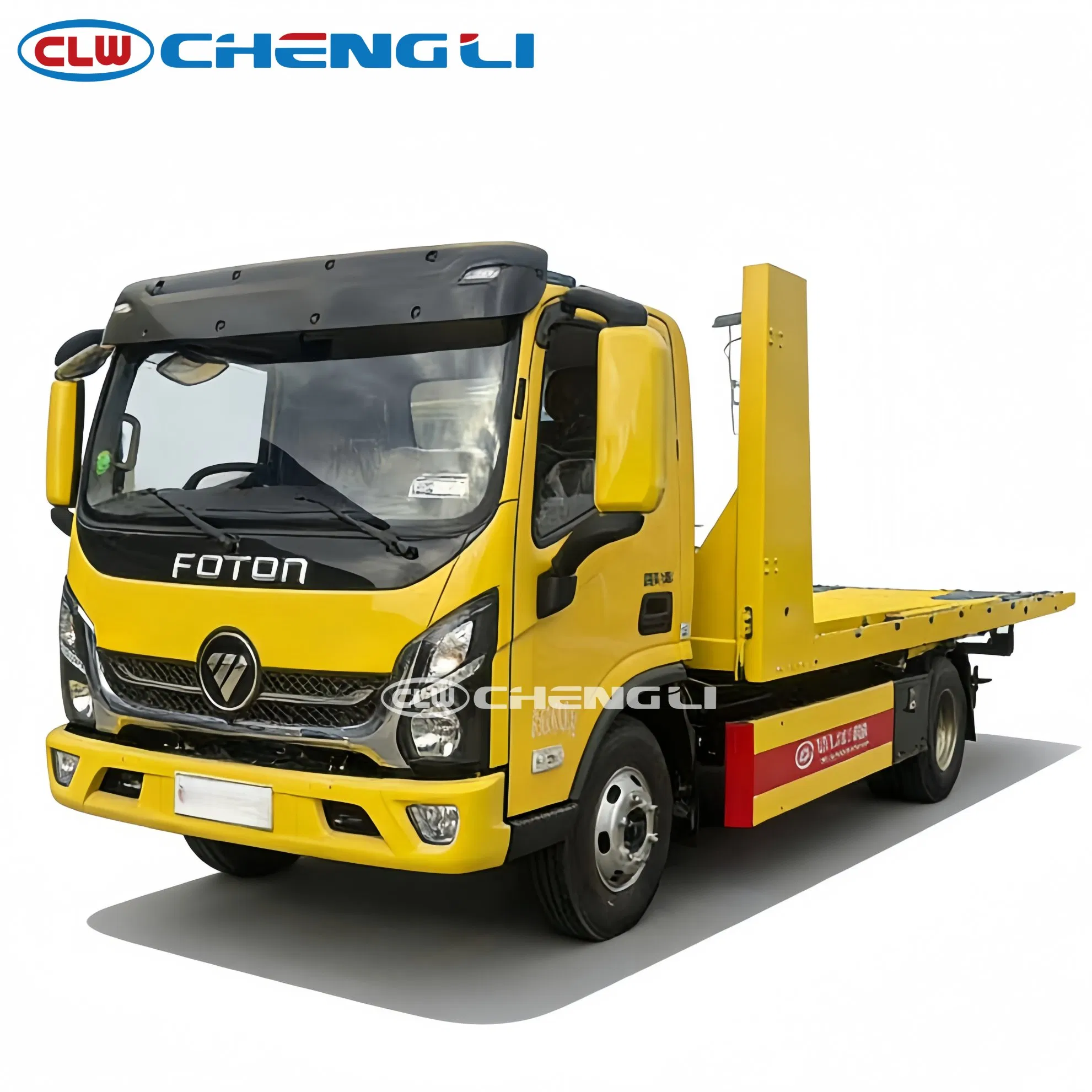

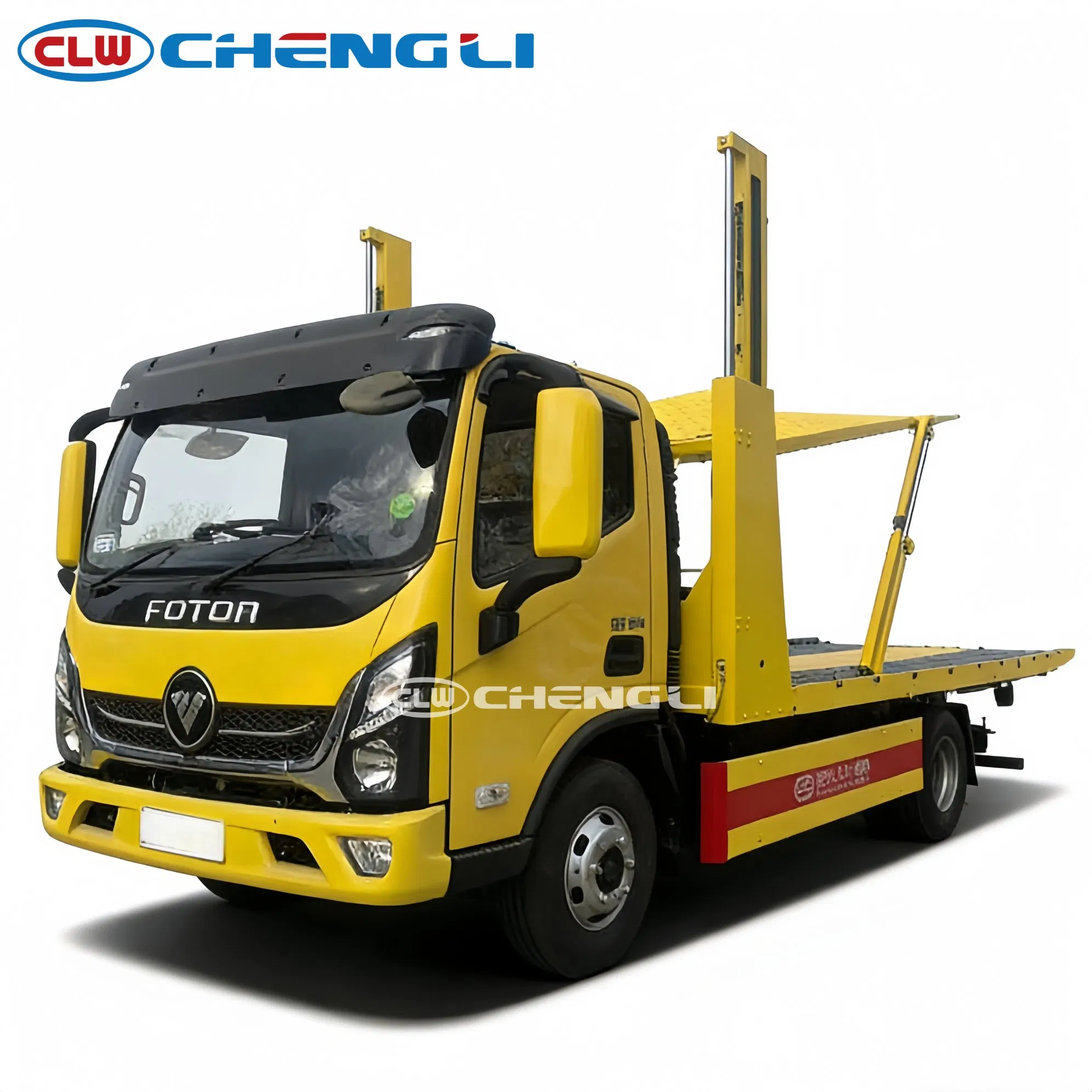

The Foton two-position flatbed wrecker carries two vehicles at once: a 4.4 m lower deck (2,500 mm wide) and a 4.2 m upper deck (2,240 mm wide) with hydraulic lifting and rear flip, a 4-ton winch, auxiliary dollies and double hooks, on a Yunnei 160 hp chassis with FAST 8-speed gearbox.
Typical applications: Roadside assistance, highway recovery and emergency rescue with two-vehicle capacity.
KEY FEATURES
What this configuration offers
Complete recovery kit (listed)
Winch, dollies, brackets, straps and double hooks standard.
Two vehicles per trip
Upper and lower decks double recovery throughput.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- Foton Aoling class, 4x2, 3,600 mm wheelbase, 6 t rear axle, 4.33 axle ratio
- Engine
- Yunnei 160 hp diesel (listed)
- GVW
- 6,800 kg (listed)
- Overall dimensions
- 7,800 x 2,600 x 2,500 mm (spec table)
- Transmission
- FAST 8-speed with factory PTO (listed)
- Tyres
- 12.00R20
Body and tank
- Deck surface
- 5-row anti-slip pattern plate (listed)
- Decks
- Lower 4.4 x 2.5 m / upper 4.2 x 2.24 m
- Structure
- Three-layer frame, thickened sub-frames
- Surface
- 5-row anti-slip pattern plate
Working equipment
- Kit
- Dollies, L-brackets, straps, double hooks
- Lifting
- Sink-down cylinders 105/95 mm (listed)
- Recovery kit
- Auxiliary dollies, L-type support brackets, tie-down straps, double hooks (listed)
- Winch
- 4-ton (listed)
Operating performance
- Max speed
- 89 km/h (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Vehicle mix per shift (cars, vans), urban or highway duty
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How does loading work?

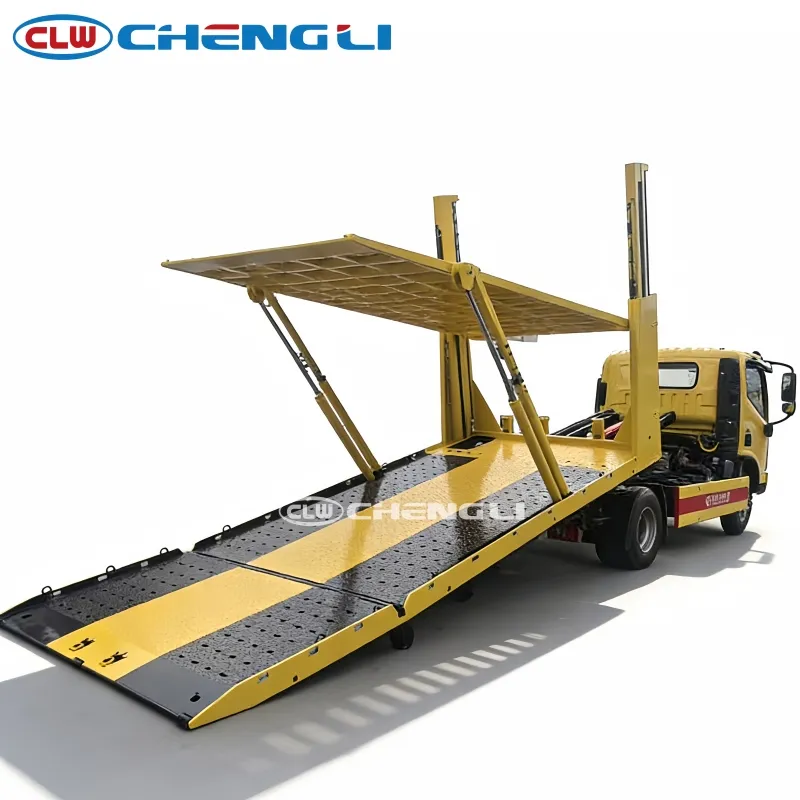

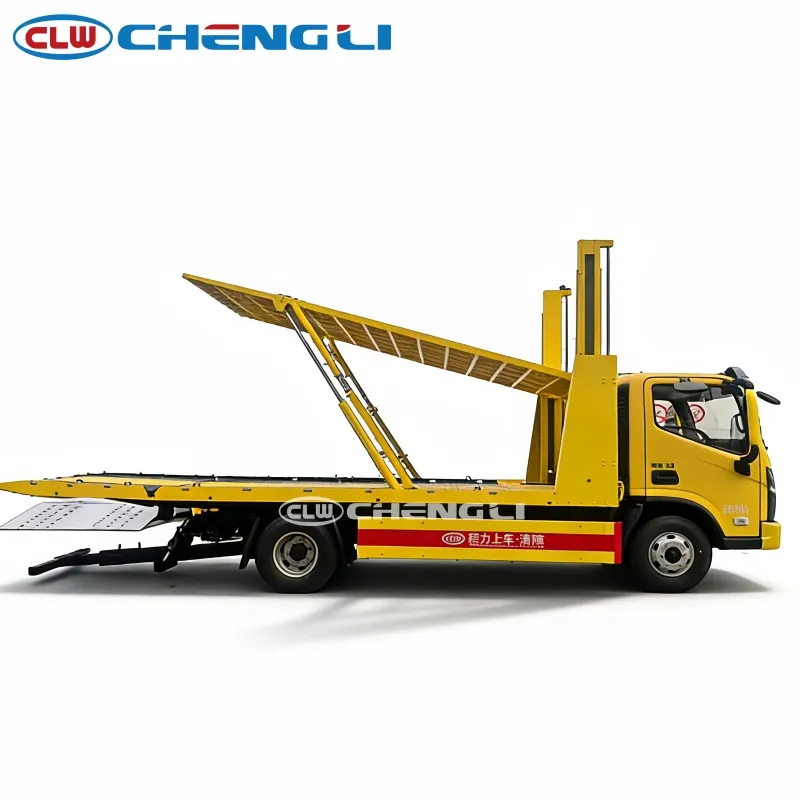

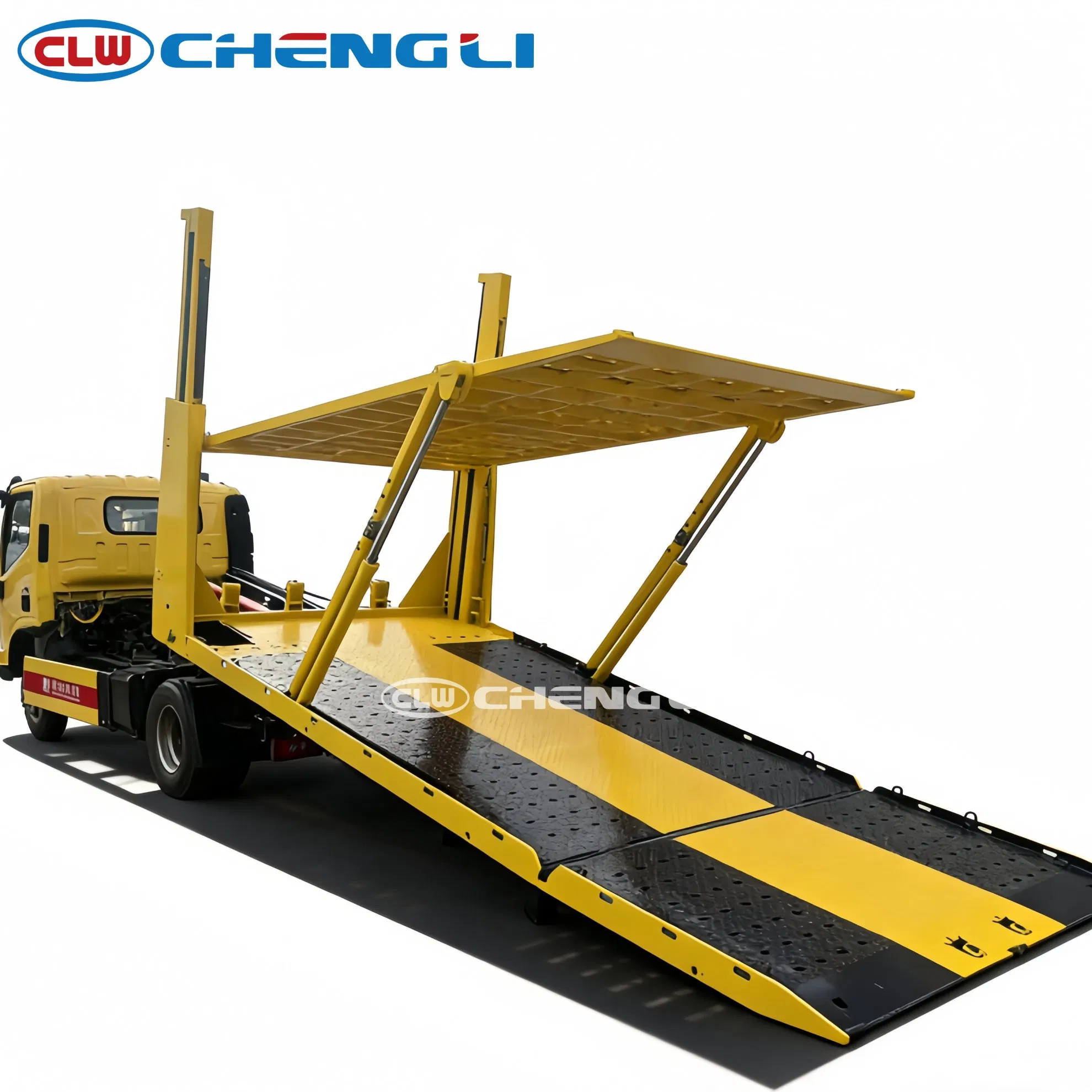

A sink-down cylinder design with rear flip lowers the deck; the 4-ton winch pulls disabled vehicles aboard, with dollies and tie-downs standard.
How many vehicles can it carry?
Two: a 4.4 m lower deck and a 4.2 m upper deck in the two-position layout.
What engine and gearbox?
A Yunnei 160 hp diesel with a FAST 8-speed manual and factory PTO (listed).
What is it rated for?
The flatbed system is listed at 6 tons with 5-ton towing tonnage - confirm the legal payload for your configuration.
