VEHICLE OVERVIEW
Small septic and sewage-well servicing where only mini trucks can access

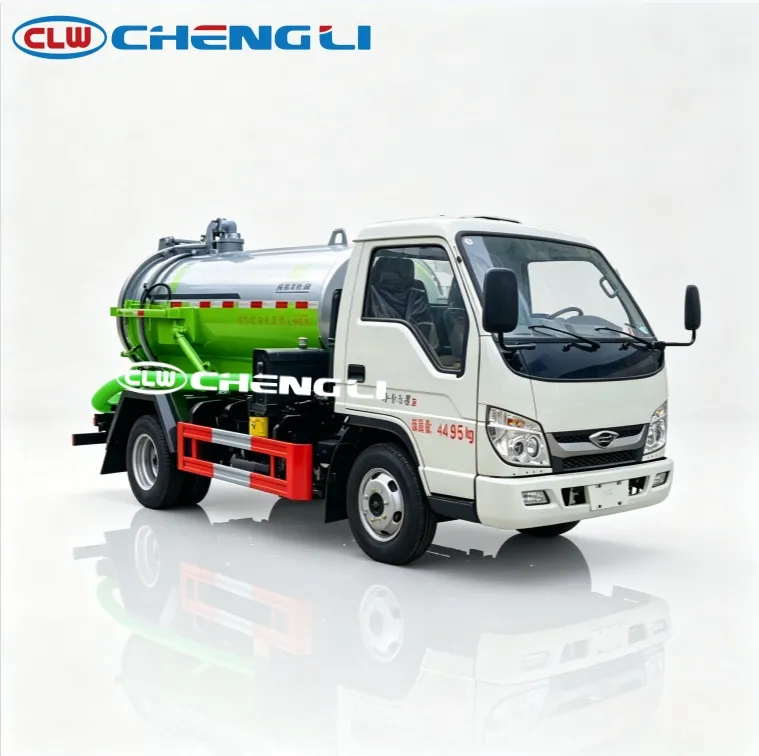

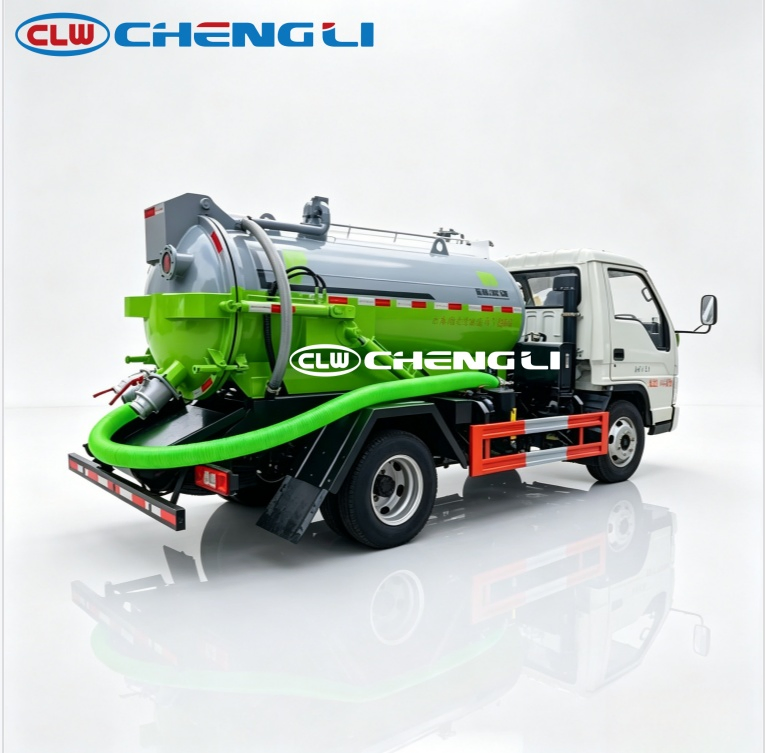

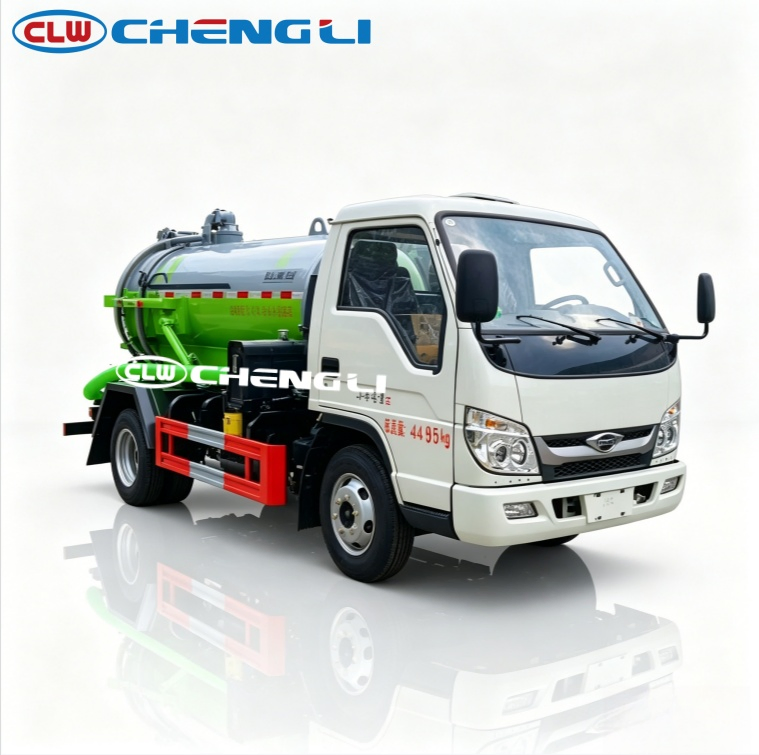

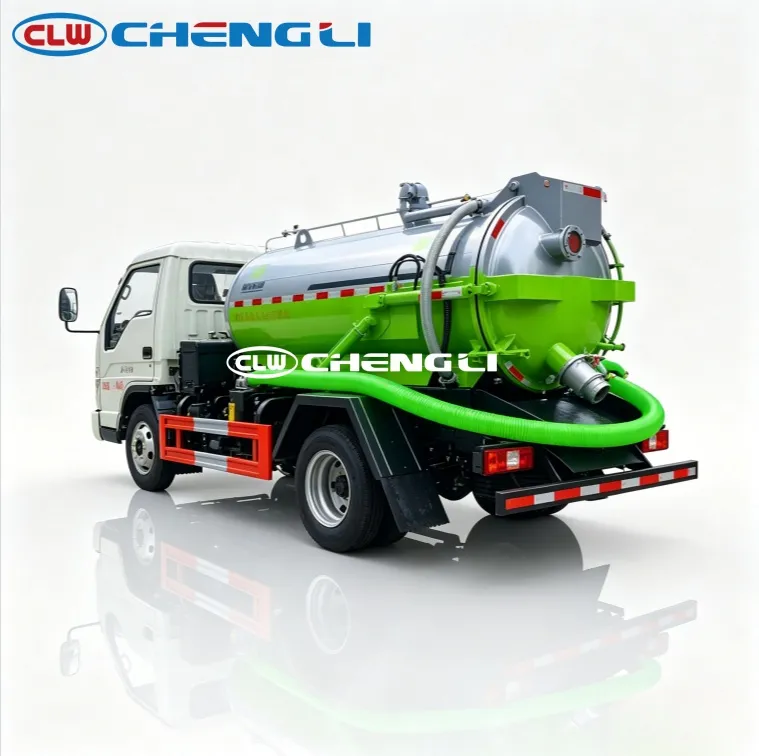

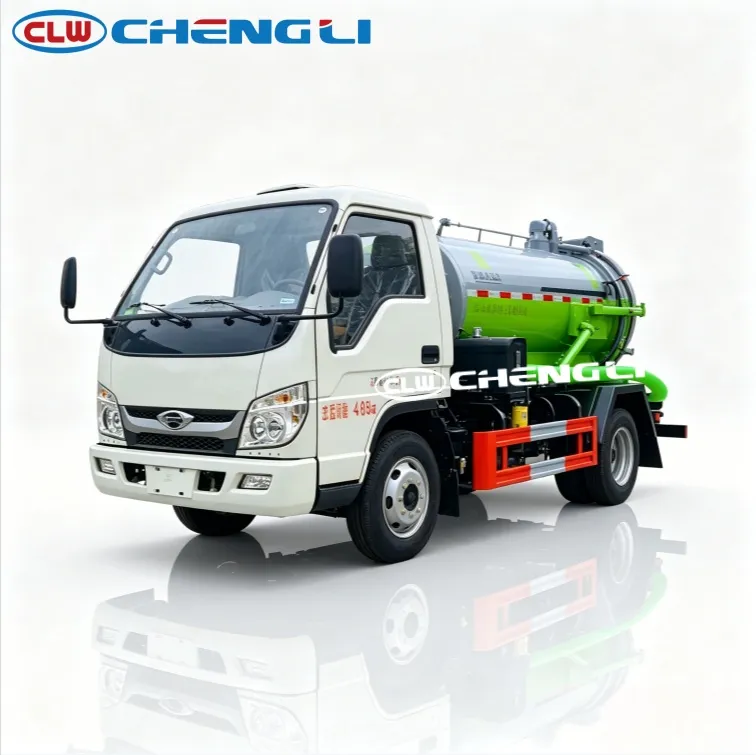

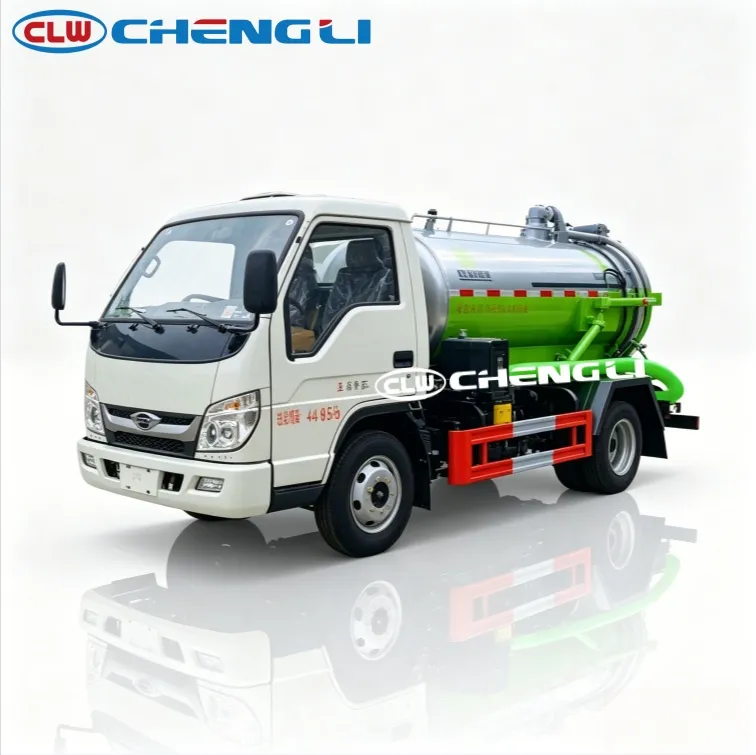

The Foton 2,200 L mini sewage suction truck is a compact vacuum tanker for compounds, villages and old districts where full-size sewage trucks cannot reach. Its 2,200-litre tank, one-operator vacuum unit and 4,495 kg GVW make it the entry tool for small septic pits, sewage wells and public toilets.
Typical applications: Small septic tanks and sewage wells in residential compounds and villages; public toilet servicing in areas only accessible to mini trucks.
KEY FEATURES
What this configuration offers
4,495 kg listed GVW
Confirm the applicable licence class and axle limits in the destination market.
Alley and garage access
Compact body on a mini-truck chassis with a small turning radius, listed for narrow alleys, underground garages and old compounds.
Single-person operation
Integrated vacuum unit handles suction, discharge and pressure relief automatically (listed).
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Approach / departure angle
- 20 / 13 deg
- Axle loads
- 1,617 / 2,878 kg
- Chassis
- Foton 4x2 mini truck, 2,850 mm wheelbase, 6.50R16LT 10PR tyres
- Drive
- Diesel, manual transmission, 105 km/h top speed
- Front / rear overhang
- 1,130 / 1,470 mm
- Overall dimensions
- 5,910 x 1,850 x 2,130 mm (spec table; basic fields show a second, different set)
- Tire specification
- 6.50R16LT 10PR
Body and tank
- Discharge method
- Vacuum discharge with integrated unit; anti-overflow protection listed
- Tank build
- Q235 carbon steel, anti-rust treated, anti-corrosion and waterproof coating (listed)
- Tank capacity
- 2,200 L (fields agree)
- Tank coating
- Anti-corrosion and waterproof coating (listed)
- Tank material
- Q235 carbon steel, anti-rust treated
Working equipment
- Fittings (listed)
- Anti-overflow valve, pressure gauge, liquid sight glass, working light, warning light
- Working principle
- Integrated vacuum unit: automatic suction, discharge and pressure relief (listed); single-person operation
Operating performance
- Gross vehicle weight / curb weight
- 4,495 kg / 2,925 kg
- Rated payload
- 1,440 kg listed; GVW minus curb weight is 1,570 kg - confirm for your configuration
Operating notes
Nominal tank volume is not payload. Plan loads within the 1,440 kg listed payload and 4,495 kg GVW; GVW minus curb weight is 1,570 kg, slightly above the listed payload - confirm the rated figure for your configuration.
Equipment and options
Listed equipment
- Anti-overflow valve
- Pressure gauge
- Liquid sight glass
- Working light
- Warning light
Available choices
- High-pressure cleaning function
- Hose reel
- High-pressure water pump
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side, licence class limit.
- Operating brief
- Access widths and height limits (alleys, garages), pit depths, daily litres, discharge site.
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm effective tank volume, vacuum unit model, suction depth and the optional high-pressure package on the agreed chassis.
Frequently asked questions
Can it be fitted with high-pressure cleaning?
The listing offers optional high-pressure cleaning function, hose reel and high-pressure water pump; confirm the package and its effect on payload in the quotation.
Can it work in narrow alleys and underground garages?
Yes - the listing highlights a compact body and small turning radius on a mini-truck chassis for narrow alleys, underground garages and old residential compounds.
How many operators does it need?
One operator for full operation, per the listing: the integrated vacuum unit handles suction, discharge and pressure relief automatically.
What licence does it need?
Listed GVW is 4,495 kg. Confirm the applicable licence class and axle limits in the destination market.
What tank capacity does it have?
The source lists 2,200 L consistently across its basic and detailed fields. The supplier states the effective capacity after internal baffles is still enough for small septic tanks and sewage wells in communities and villages.
