VEHICLE OVERVIEW

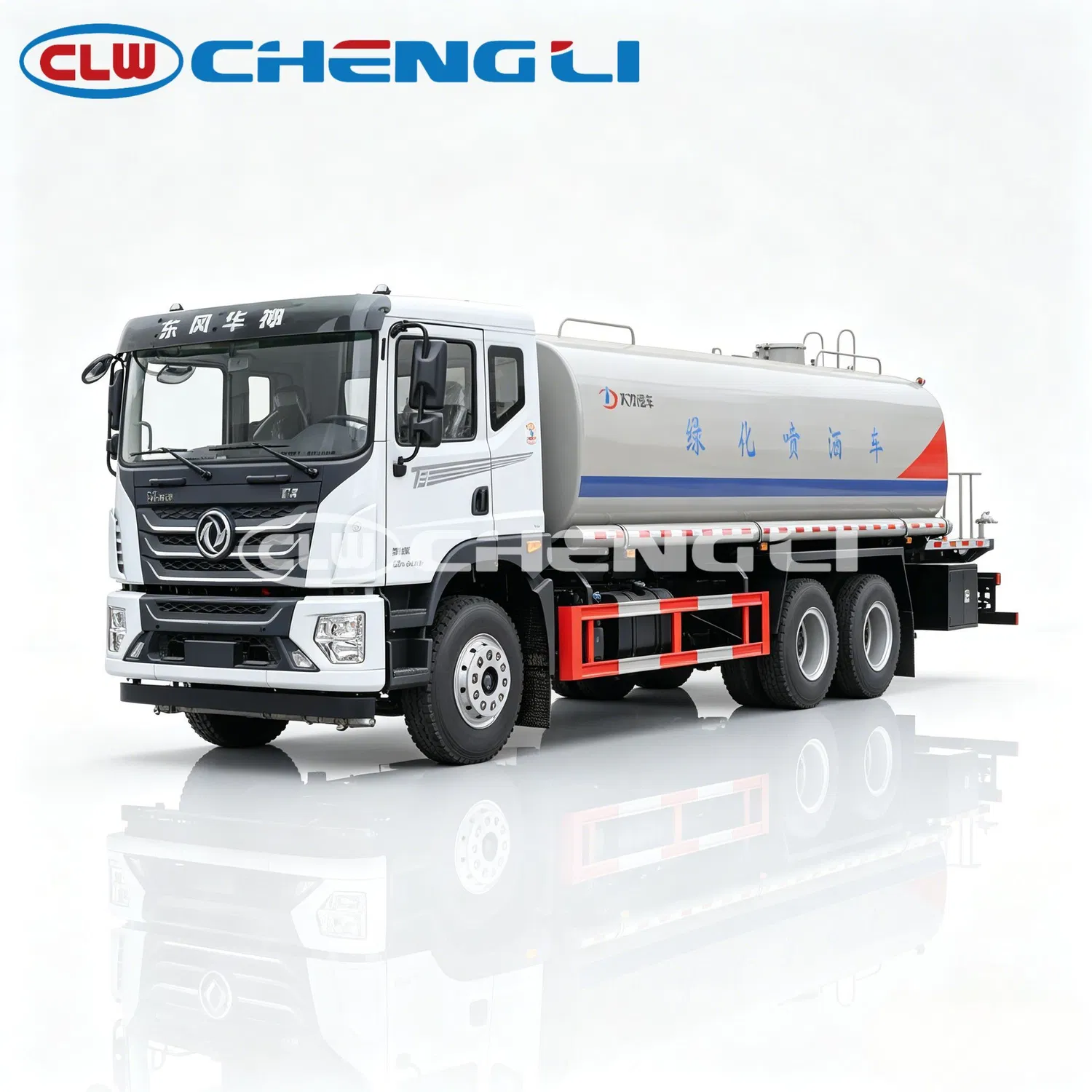

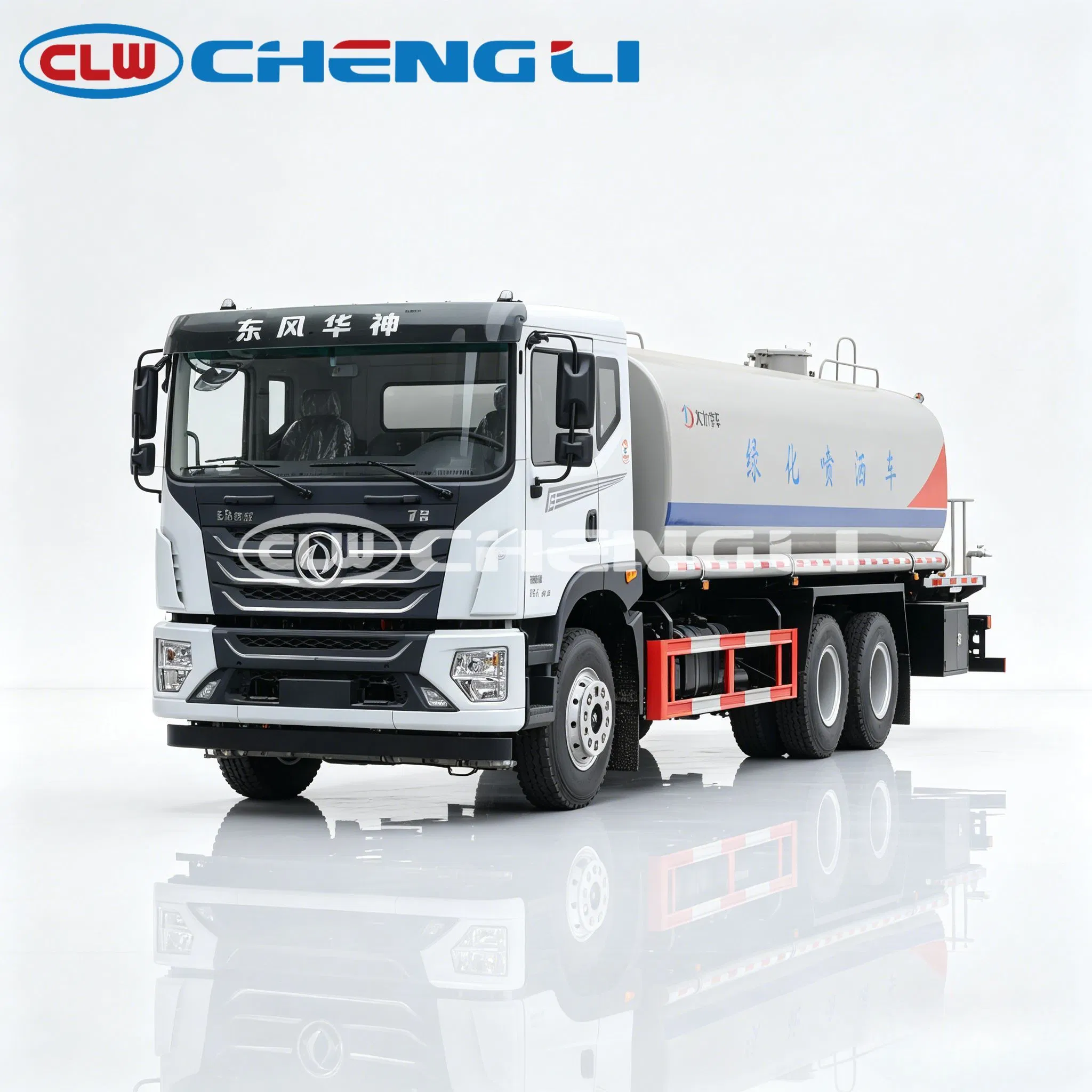

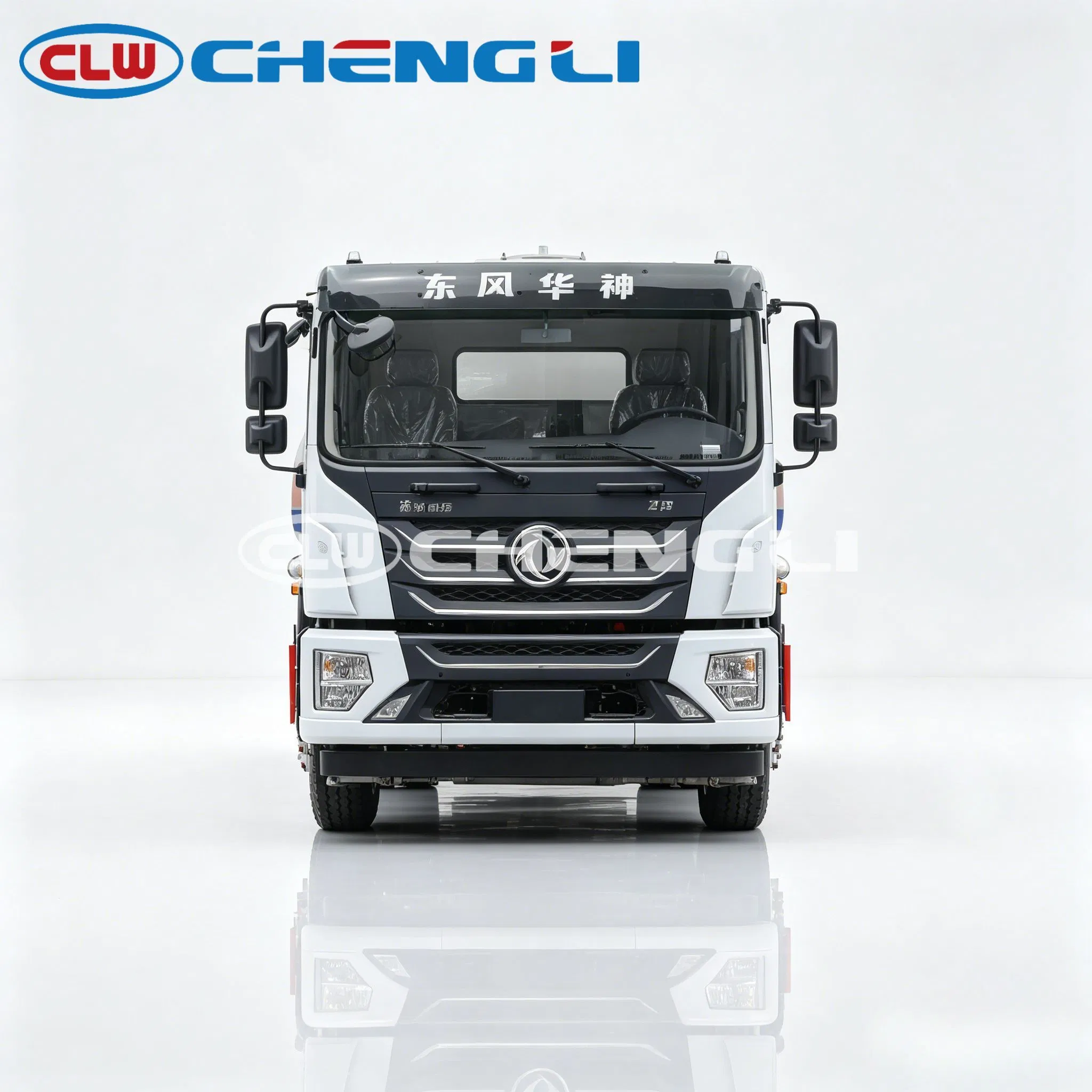

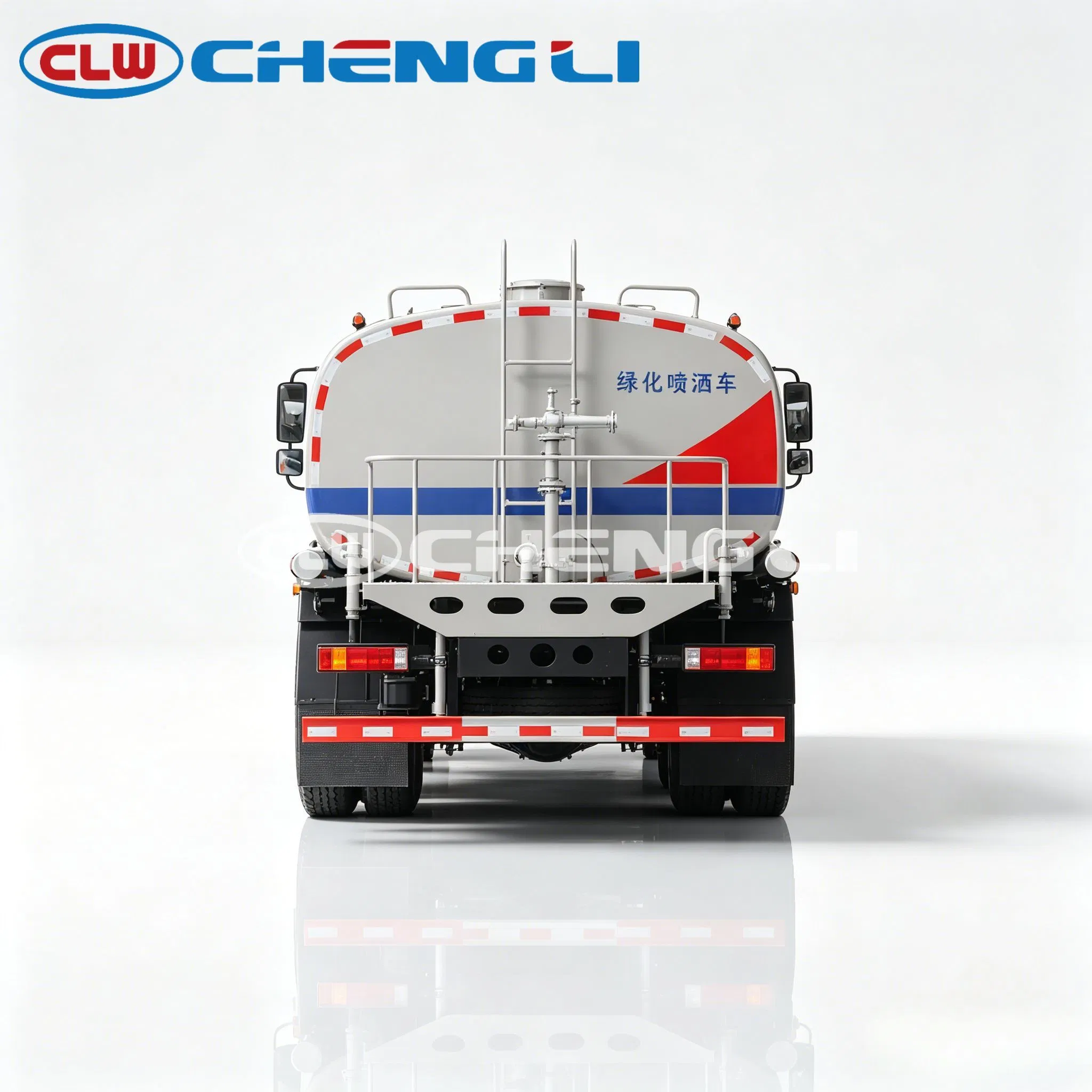

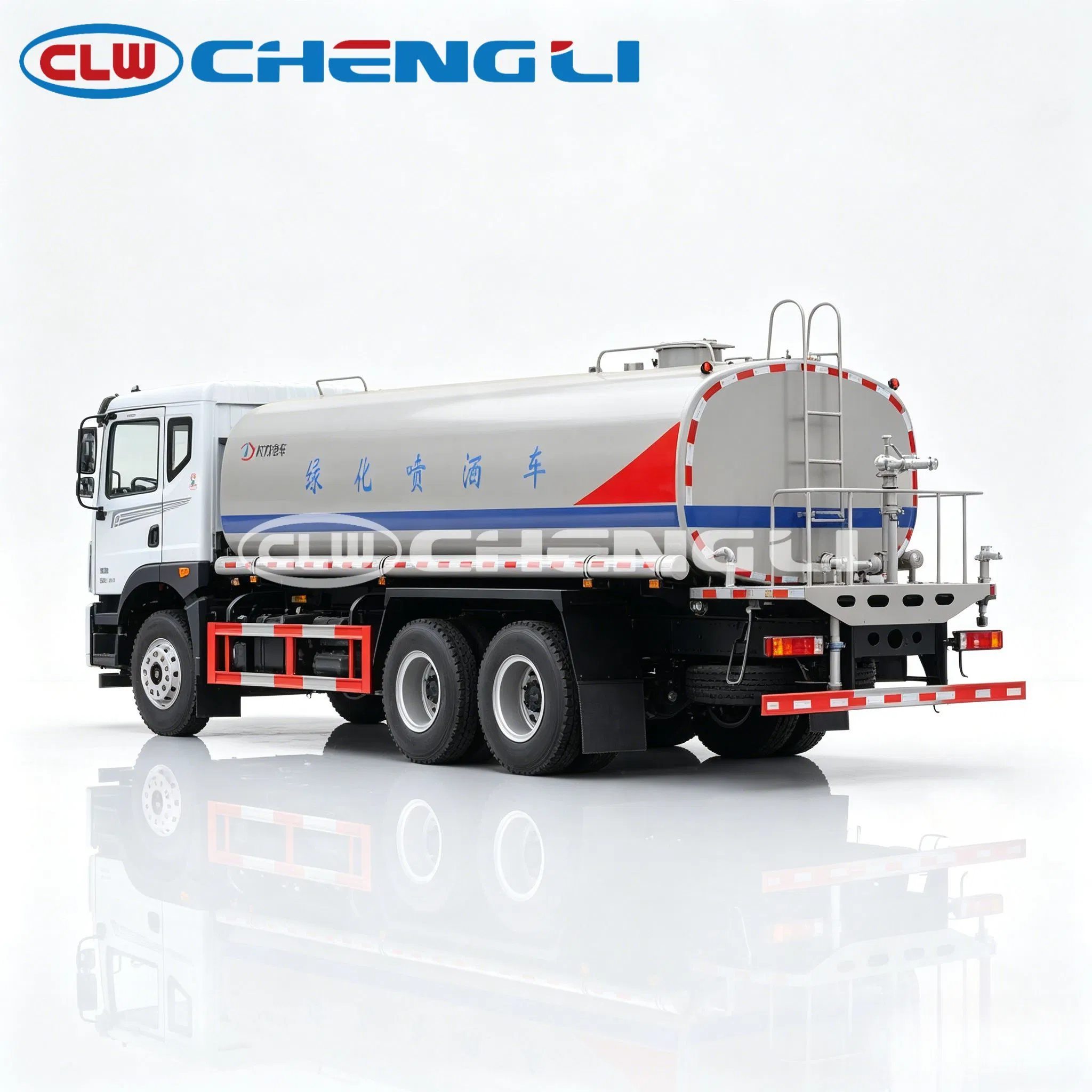

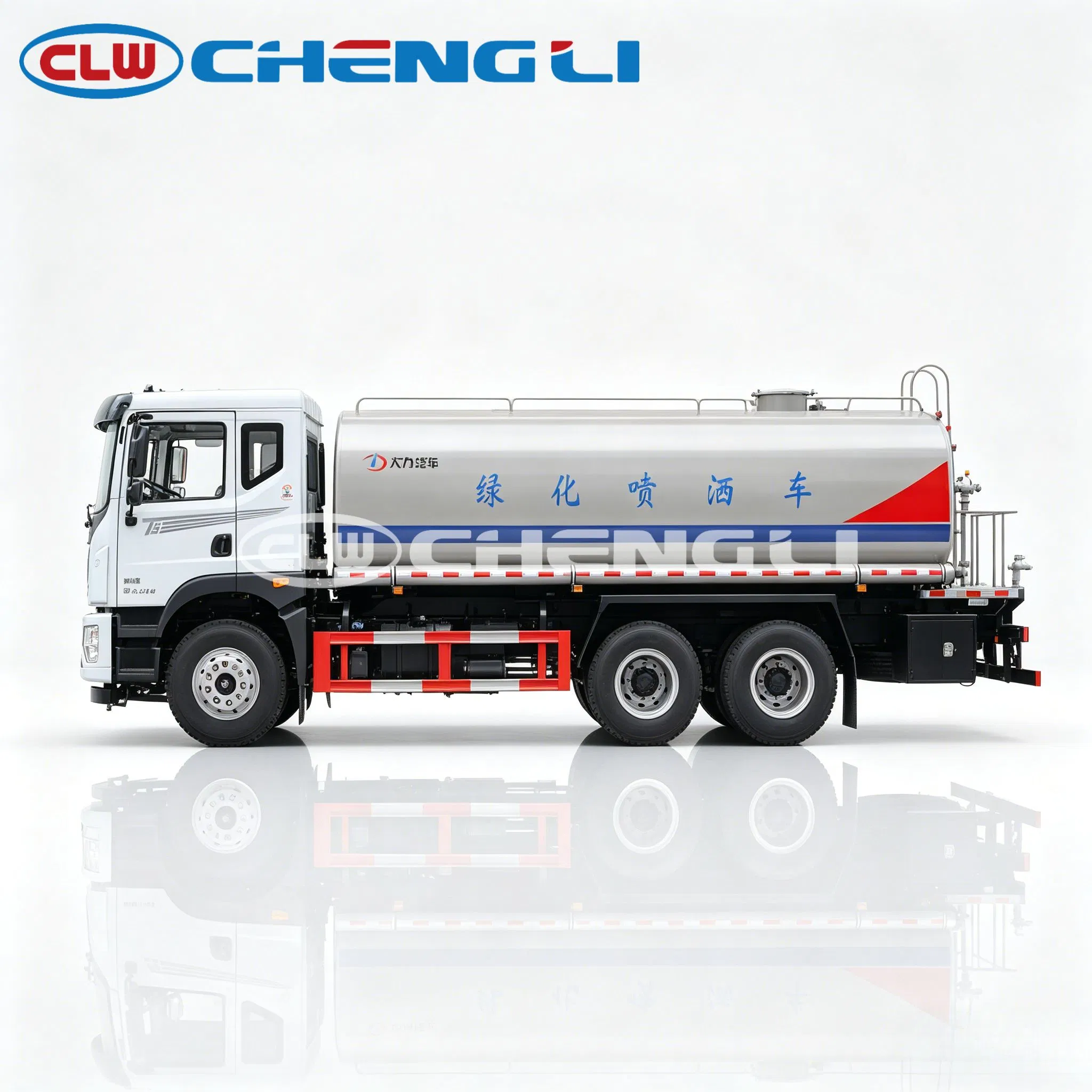

The Dongfeng Huashen T5 6x4 sprinkler carries about 14,930 litres on three axles for long municipal routes: Yuchai engine options from 245 to 300 hp, an 8-14 m spraying width, a 10-28 m greening cannon in jet and mist modes, and a self-priming pump with 6 m plus vertical suction.
Typical applications: Municipal road maintenance, greening irrigation, dust suppression, emergency fire assistance.
KEY FEATURES
What this configuration offers
6x4 with twin 10 t rear axles
Spreads a full tank over three axles for long routes and heavier roads.
Yuchai 245-300 hp options
Three named engine outputs to match route and gradient.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- 5 t front / 10 t x 2 rear (listed)
- Chassis
- Dongfeng Huashen New T5, 6x4 (3 axles), wheelbase 4,350+1,350 mm
- Engine options
- Yuchai 245 hp (6.23 L) / 270 hp (6.23 L) / 300 hp (6.44 L) (listed)
- GVW
- 25,000 kg
- Overall dimensions
- 10,500 x 2,500 x 3,400 mm
- Tyres
- 11.00R20
Body and tank
- Tank
- 14.93 cbm Q235 carbon steel
Working equipment
- Greening cannon
- Columnar 10-28 m / mist 8-15 m
- Pump
- 60/90 or 50/110 self-priming, suction more than 6 m (listed)
- Spraying width
- 8-14 m (listed)
Operating performance
- Curb weight / payload
- 10,550 / 11,290 kg (two variants) / 14,560 kg rated
- Max speed
- 89 km/h (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Route length, daily water volume, cannon and flushing needs
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it fill from open water?
A self-priming 60/90 or 50/110 pump with more than 6 m vertical suction is listed.
How much water does it carry?
The announced tank volume is 14.93 cbm (14,930 L). The title prints 22.5 m3 and the description 15 m3 - the field value is used and the differences are flagged.
What engine choices are there?
Yuchai 245 hp, 270 hp or 300 hp options are listed, all in the 6.2-6.4 L class.
What is the cannon range?
The greening cannon reaches 10-28 m in columnar mode and 8-15 m in mist mode (listed).
