VEHICLE OVERVIEW

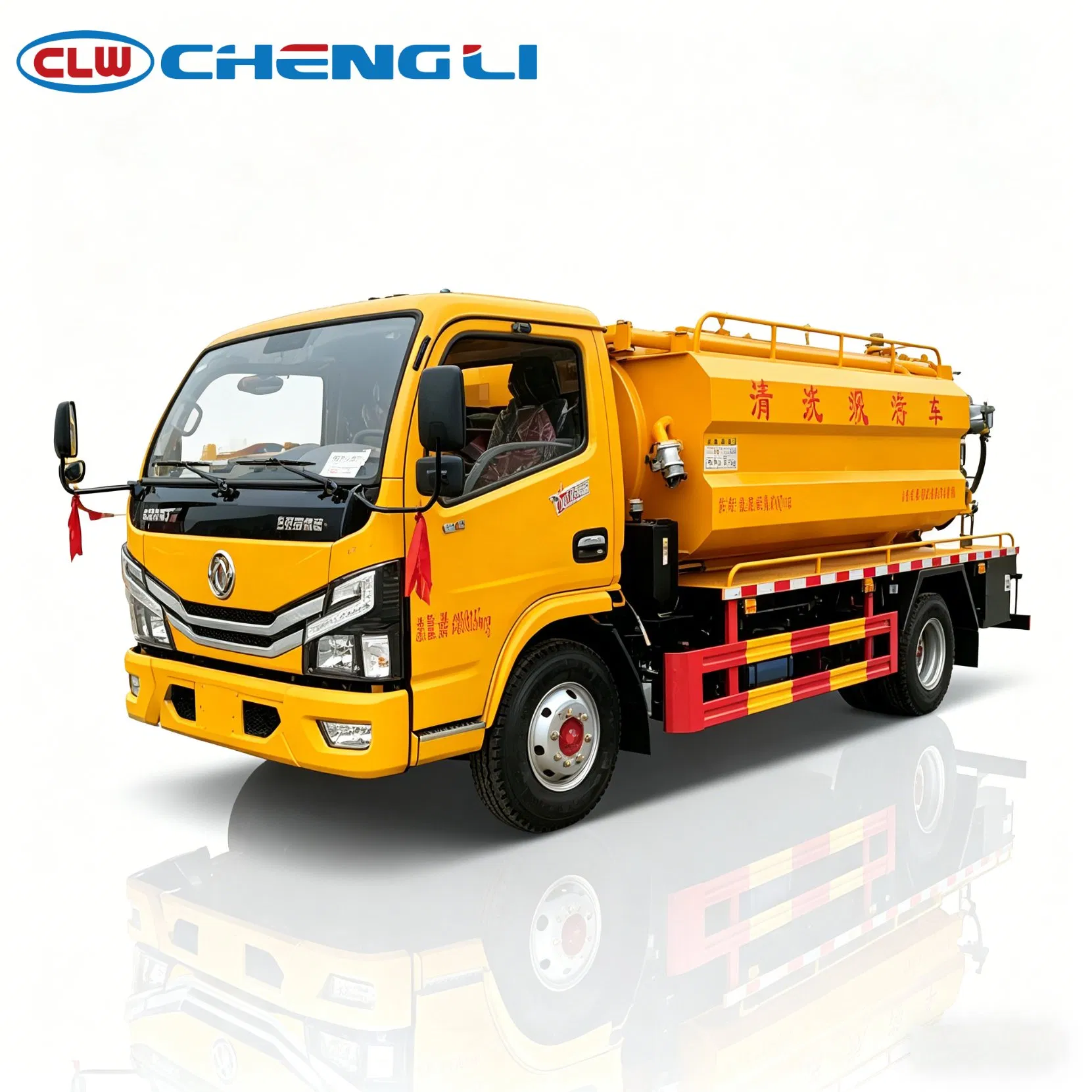

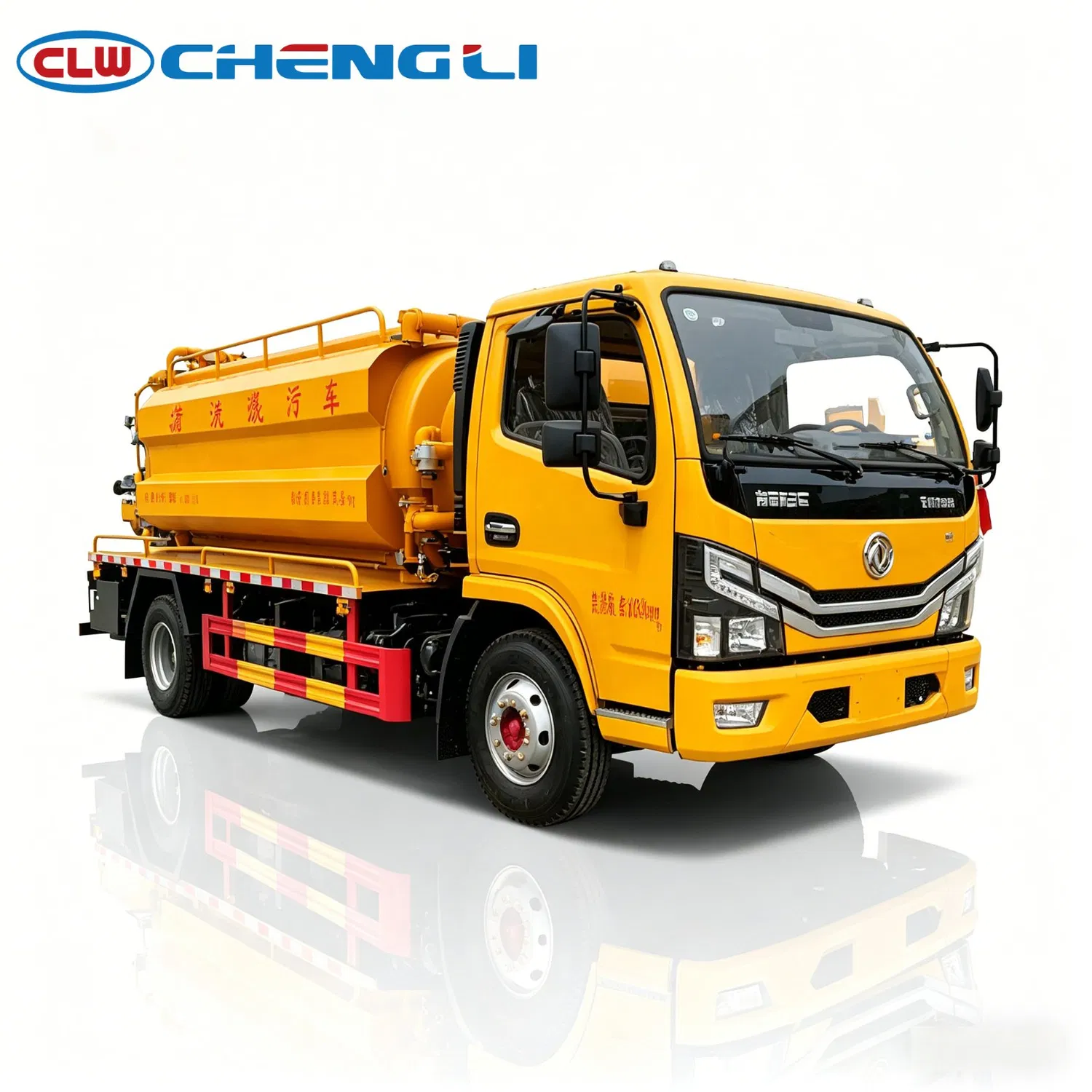

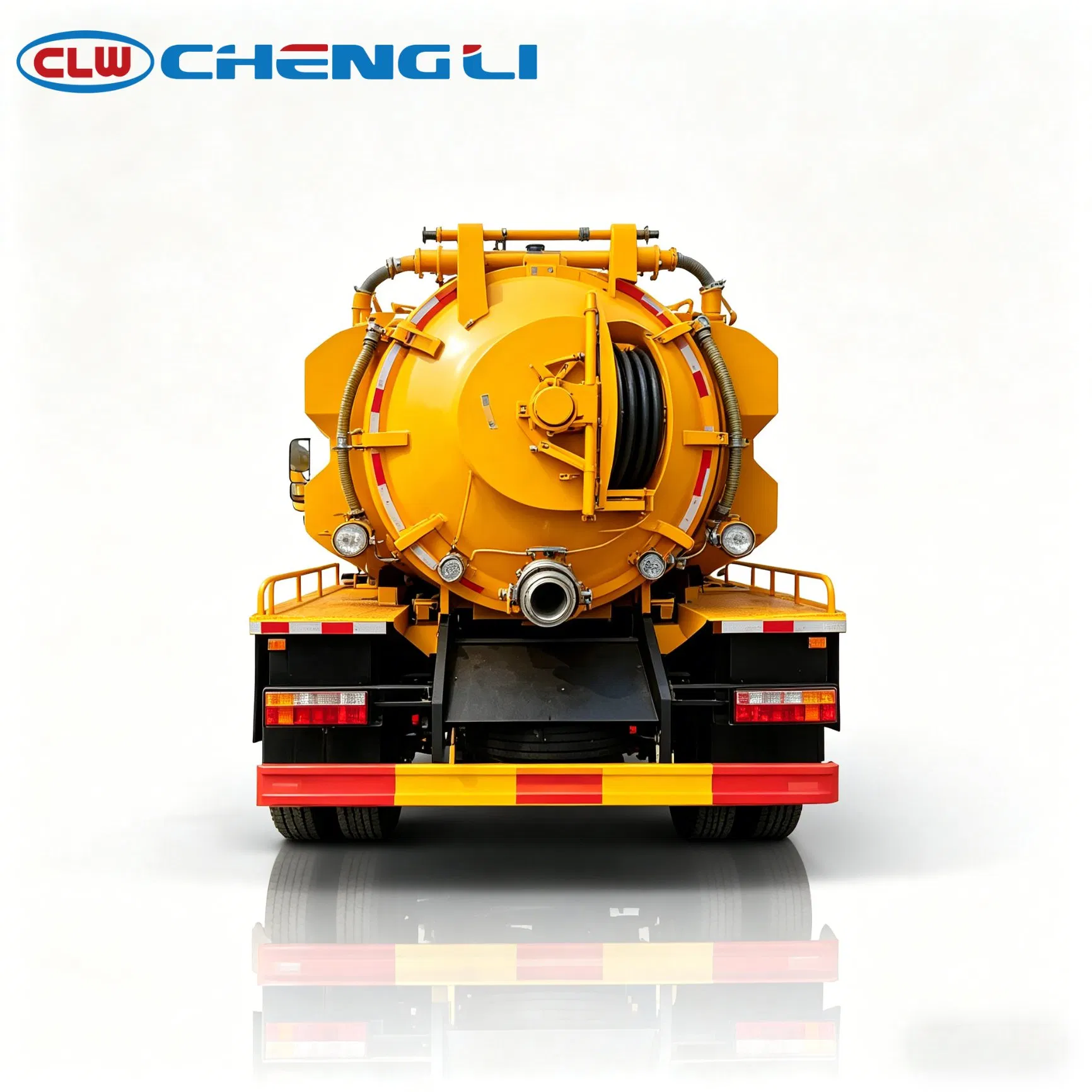

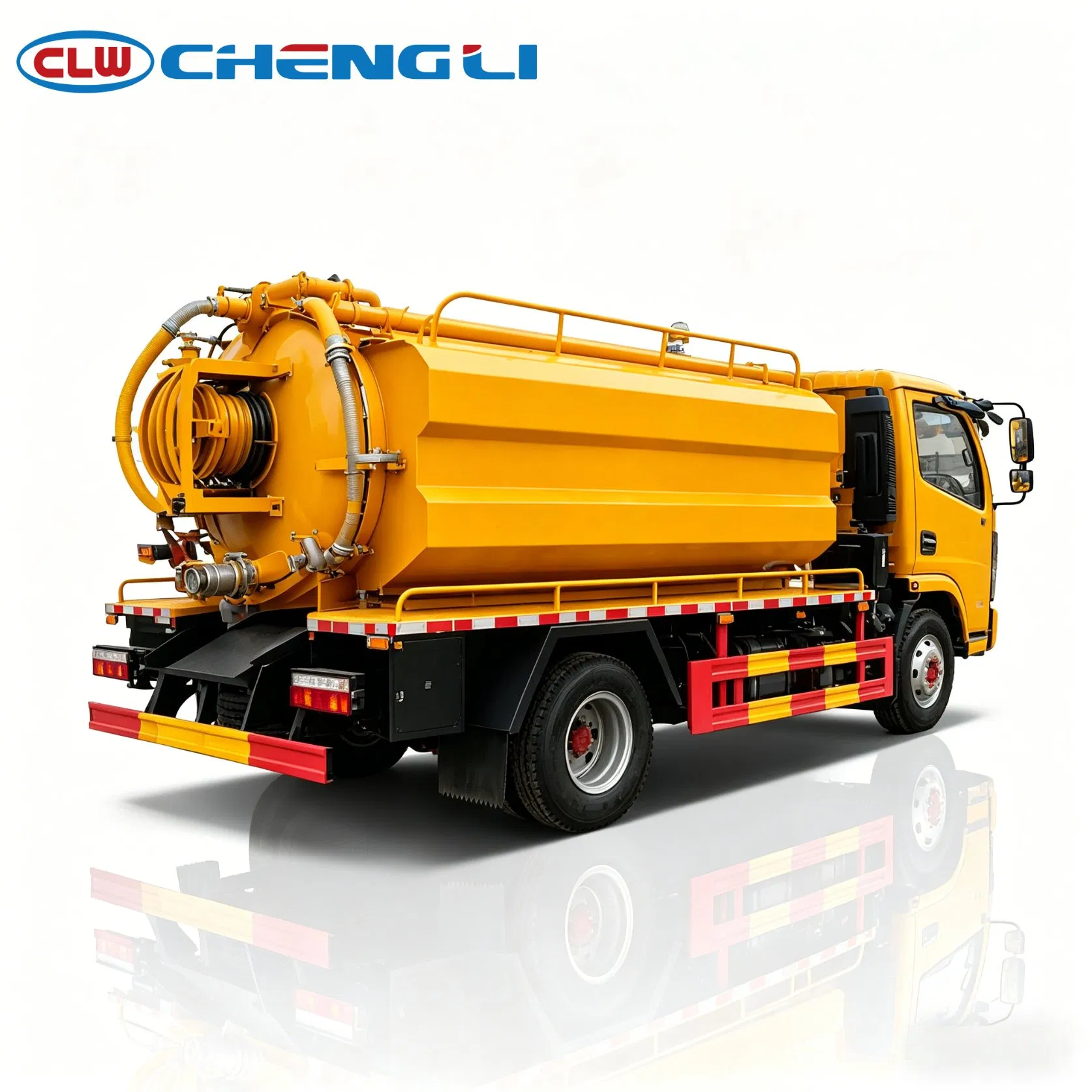

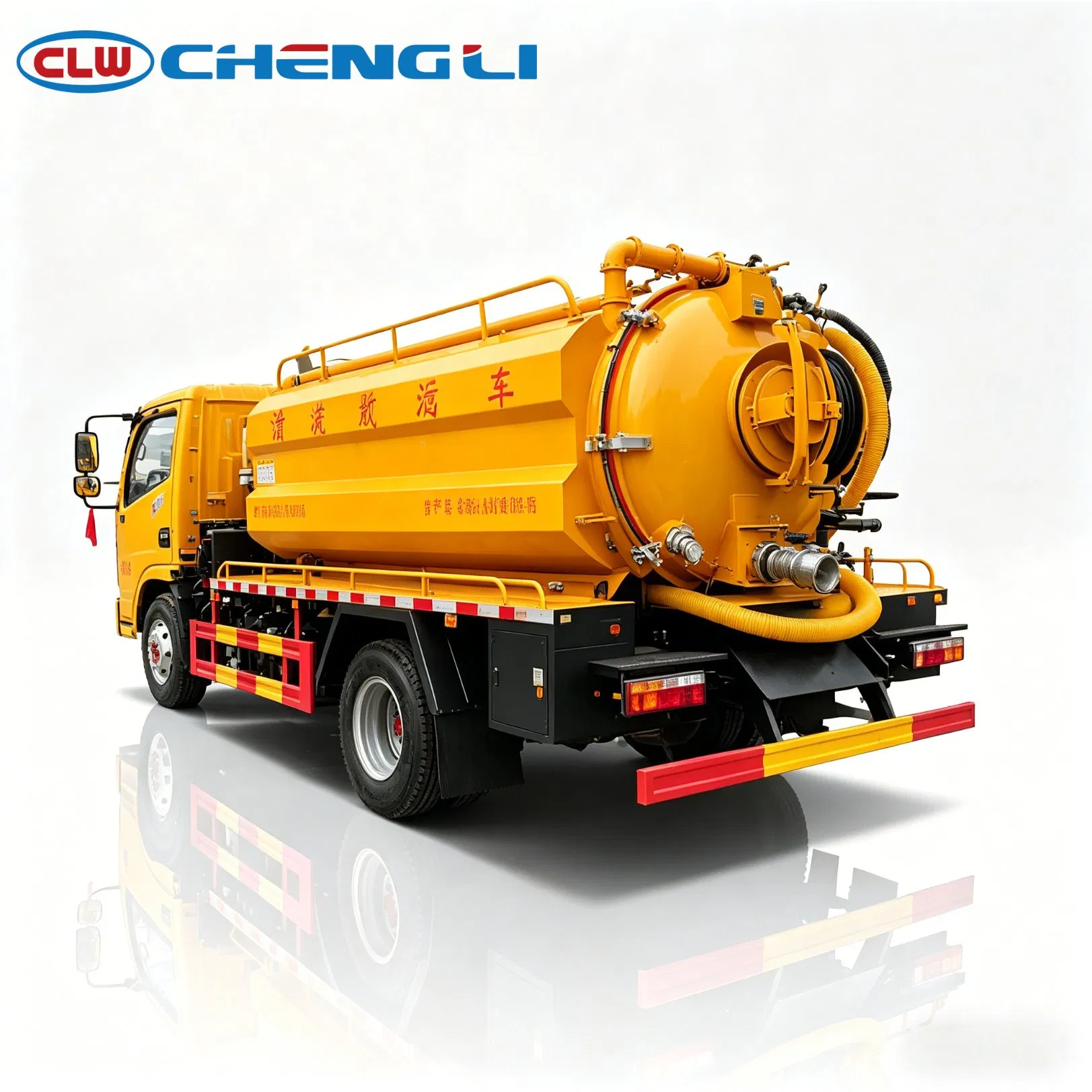

The Dongfeng Duolika low-profile combined truck brings jetting and vacuum suction into underground car parks and basements: a 6 cbm split tank (4 cbm sewage + 2 cbm clean water) under an ultra-low 2.2 m overall height, with SK-9 or SK-12 pump options at 420 or 720 m3/h flow and 9 m or deeper suction.

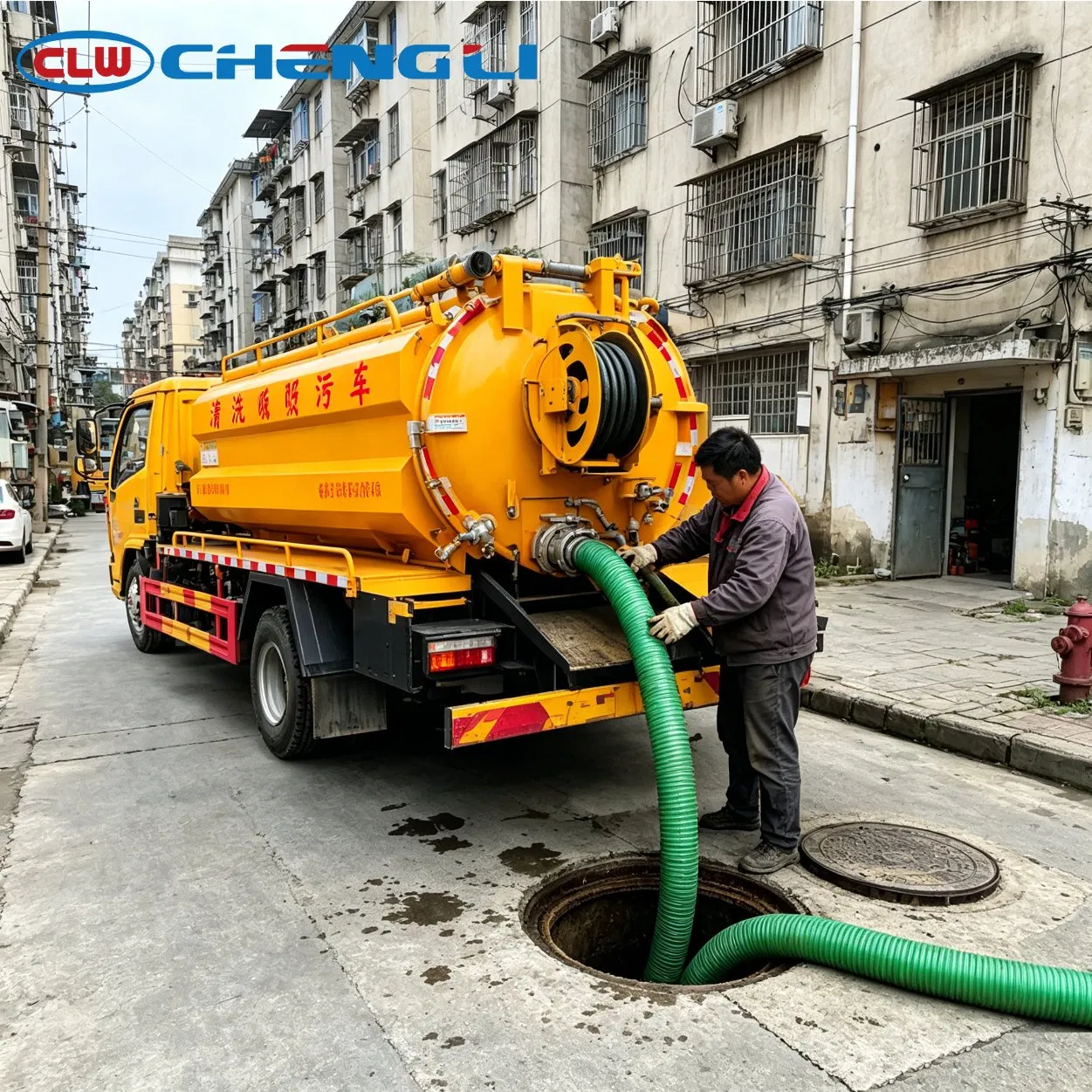

Typical applications: Basement and underground-park sewer cleaning, low-clearance pipe maintenance.
KEY FEATURES
What this configuration offers
Jet and vacuum in one truck
Dual tanks flush blockages and collect sludge together.
2.2 m overall height
Basement ramp safe where standard combined trucks cannot enter.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Cab
- Single row with A/C, power windows, central lock (listed)
- Chassis
- Dongfeng Small Duolika 4x2, 3,308 mm wheelbase, front 1.8 t / rear 3.5 t axles
- Dimensions
- 5,995 x 2,100 x 2,200 mm
- Engine
- Yuchai 140 hp (103 kW) or 115 hp options (listed)
- Overall height
- 2,200 mm ultra-low for basement access (listed)
- Transmission
- 5/6-speed manual with synchronizer (listed)
- Tyres
- 7.00R16 steel radial
Body and tank
- Clean water tank
- 2 cbm
- Height
- 2,200 mm ultra-low
- Sewage tank
- 4 cbm
- Tanks
- 6 cbm total: 4 cbm sewage + 2 cbm clean water (listed)
Working equipment
- Pumps
- SK-9 420 m3/h or SK-12 720 m3/h (listed)
- Suction
- 9 m or more (listed)
- Suction depth
- 9 m or more (listed)
Operating performance
- GVW / curb weight / payload
- 7,360 kg / 5,400 kg / 1,960 kg
Safety
- Brakes
- Air brake with ABS (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Site heights and ramps, pipe diameters, blockage types, water supply
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
What licence class?
Listed GVW is 7,360 kg. Confirm the required licence class and route restrictions with the destination authority in Nigeria or Ghana.
What pump options are there?
SK-9 at 420 m3/h or SK-12 at 720 m3/h flow, with suction of 9 m or more (listed).
What tank split does it use?
6 cbm total: 4 cbm sewage plus 2 cbm clean water (listed).
Why a low-profile combined truck?
At 2.2 m overall height it enters underground car parks and basements where standard combined sewer trucks cannot fit, jetting blockages and vacuuming sludge in one visit.
