VEHICLE OVERVIEW

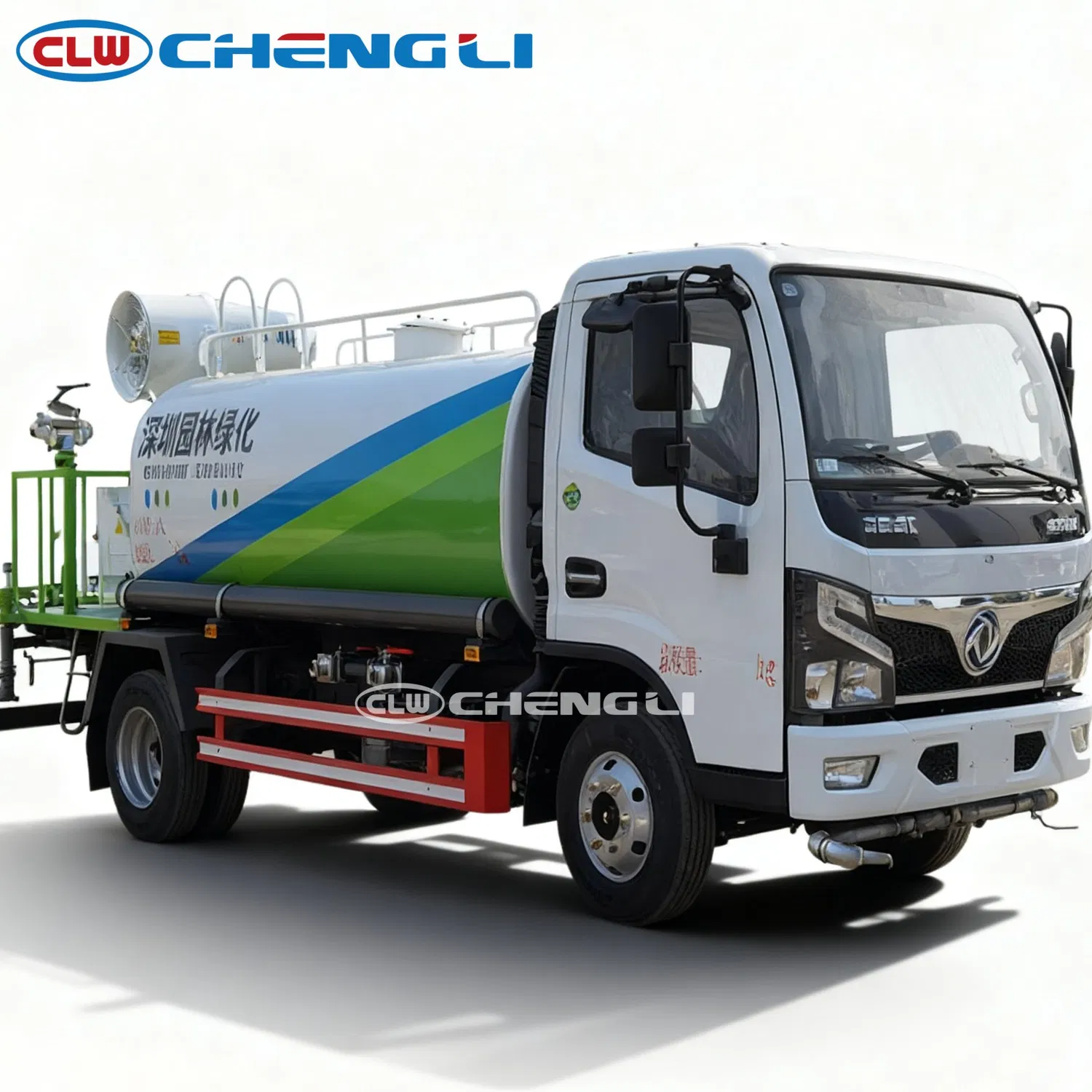

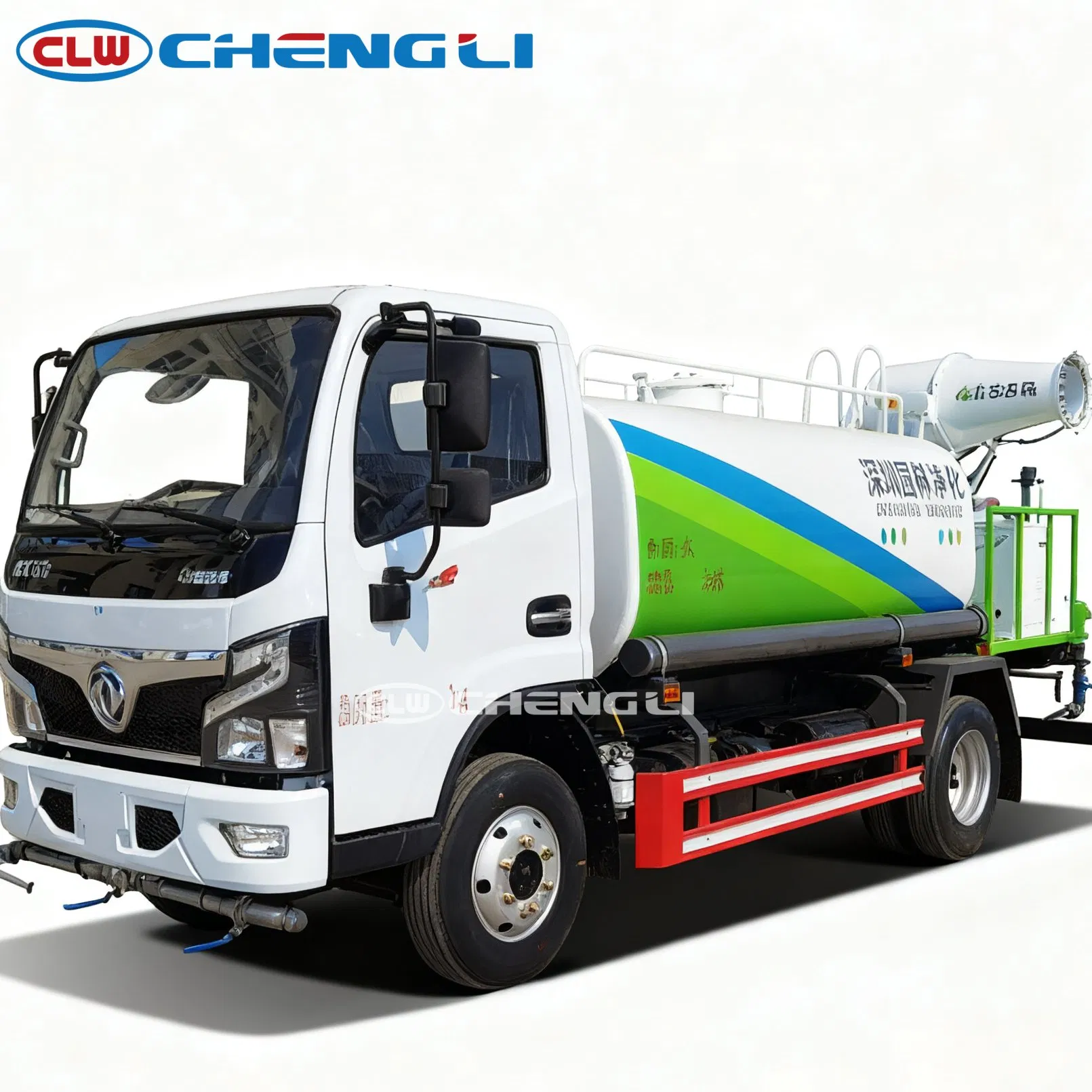

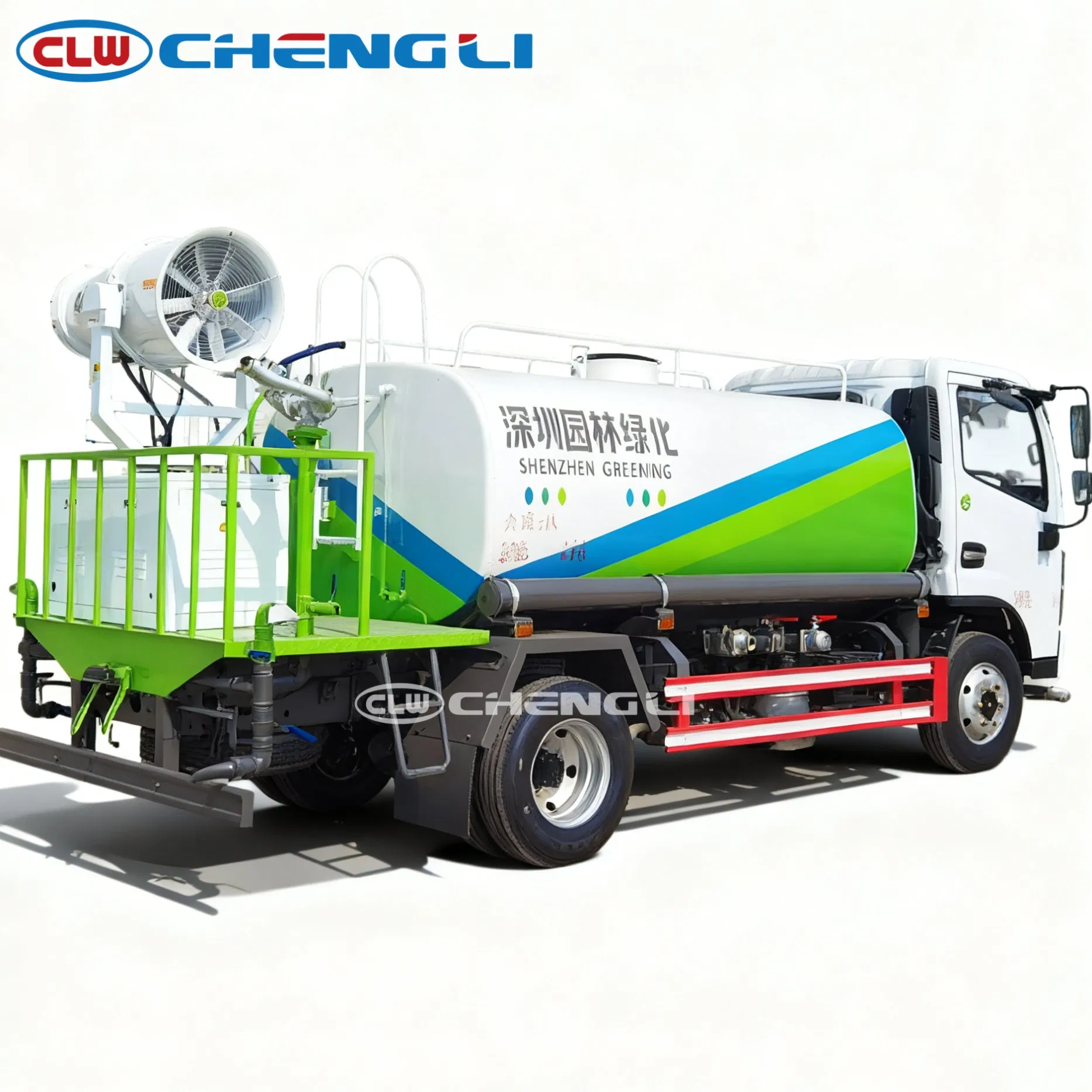

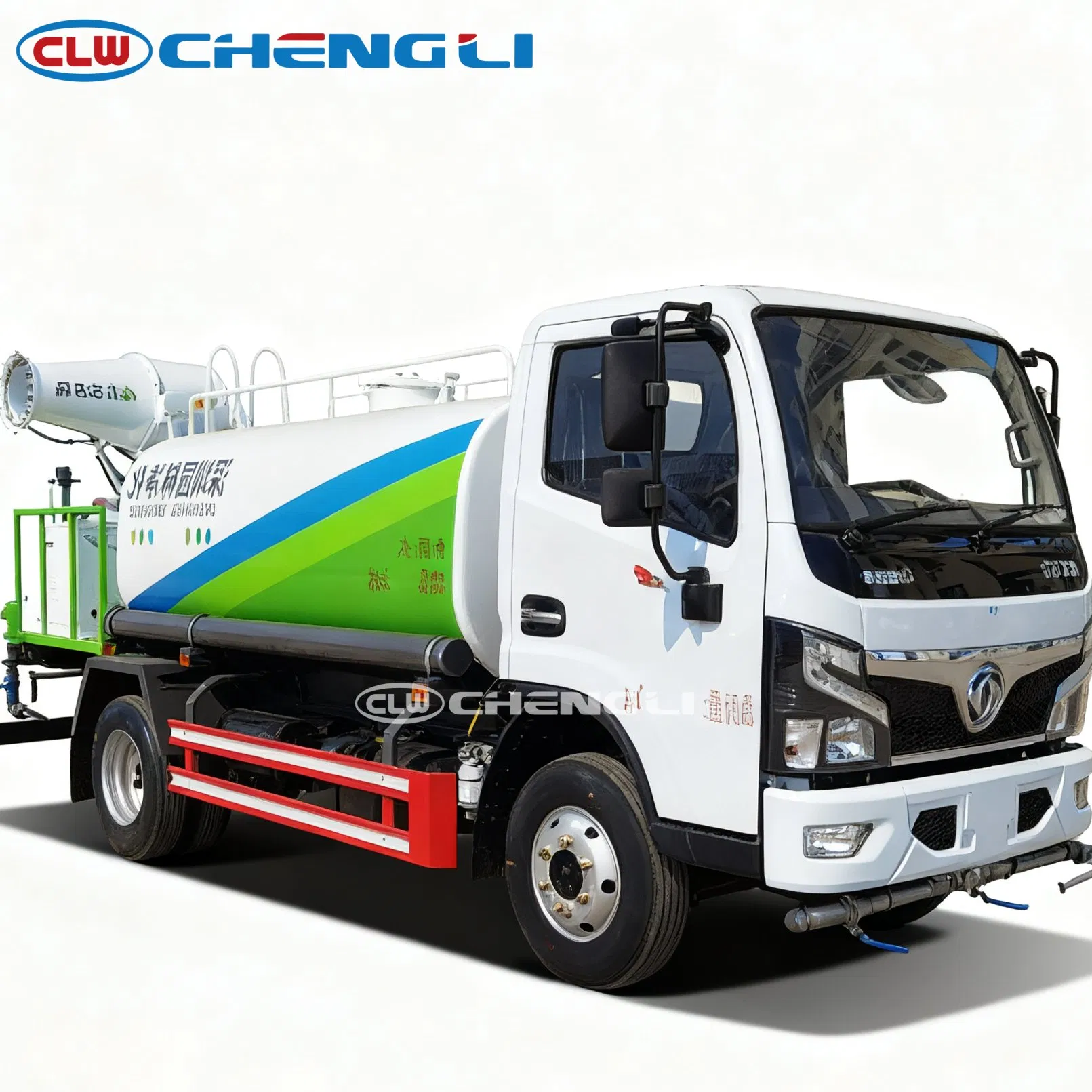

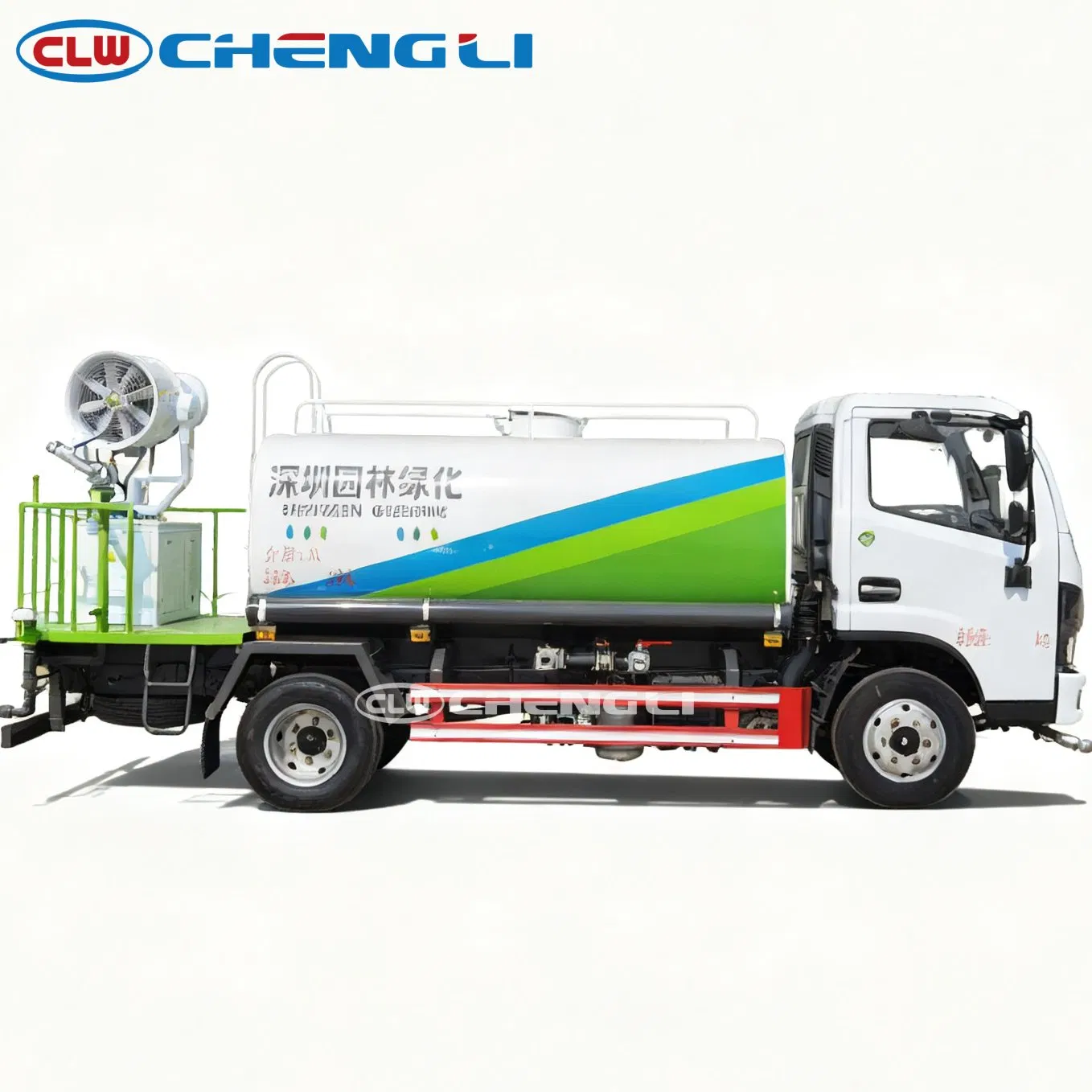

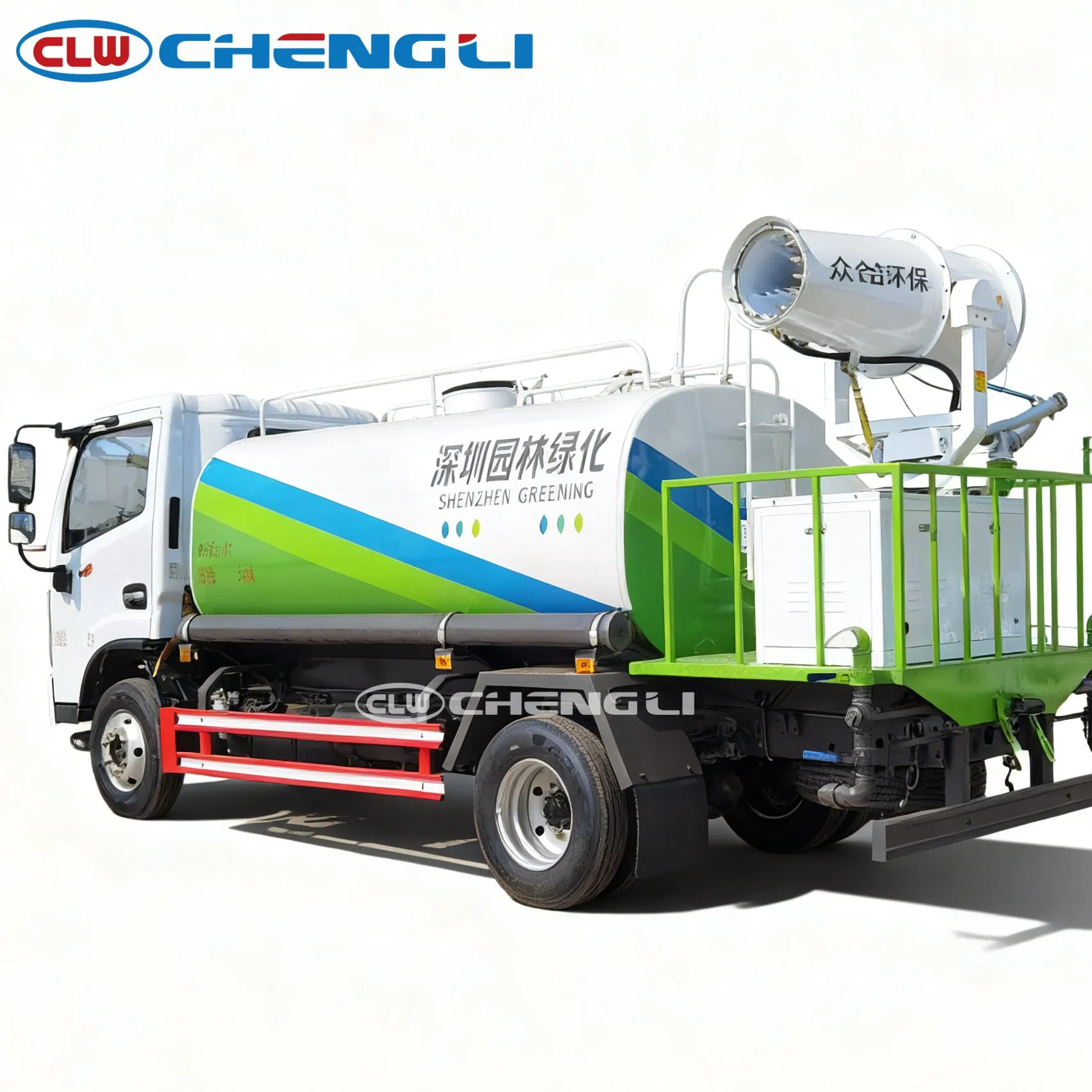

The 5,000 L light sprinkler truck brings road washing and site dust control to compact routes: a 5,000-litre tank with a 40-50 pump, front and rear spray and an optional remote-controlled mist cannon, on a 4x2 Dongfeng D6-class chassis at 7,360 kg GVW.
Typical applications: Town road washing, estate and site dust control, greenbelt watering.
KEY FEATURES
What this configuration offers
7,360 kg listed GVW
Confirm the applicable vehicle licence and axle limits for the destination route.
16 m sprinkling width (listed)
Wide coverage from a small tank.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- 4x2, 3,308 mm wheelbase, 3 seats
- Engine options
- Yuchai / Yunnei / Cummins (optional, listed)
- Overall dimensions
- 6,500 or 7,100 x 2,000 x 2,800 mm (two lengths listed)
- Tyres
- 7.00R16 variants or 7.50R16LT 16PR (options)
Body and tank
- Gearbox
- 5-speed or 6-speed manual (listed)
- Tank
- 5,000 L, about 3,100 x 1,600 x 1,150 mm
Working equipment
- Fittings
- Power extractor, water pump, ball valve, flange pad, integral pipe (listed)
- Pump
- 40-50 model (listed)
Operating performance
- GVW / curb weight
- 7,360 kg / 3,750 kg
- Max speed
- 110 km/h (listed)
- Payload
- 3,480 kg (spec) - basic field prints 4 t
- Sprinkling width
- more than 16 m (listed)
Equipment and options
Available choices
- Pneumatic control
- Remote-controlled mist cannon
- Internal anti-corrosion coating
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Road length per shift, water source, dust or washing duty
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it draw water from a pond?
A water pump and valves are listed; confirm self-priming depth in the quotation.
How much water does it carry?
A 5,000-litre tank (about 3,100 x 1,600 x 1,150 mm listed).
What licence does it need?
Listed GVW is 7,360 kg. Confirm the applicable licence class and axle limits for the destination route.
What spray functions does it have?
Front and rear spray with a 40-50 pump and more than 16 m listed sprinkling width; an optional remote-controlled mist cannon adds fog-type dust control.
