VEHICLE OVERVIEW

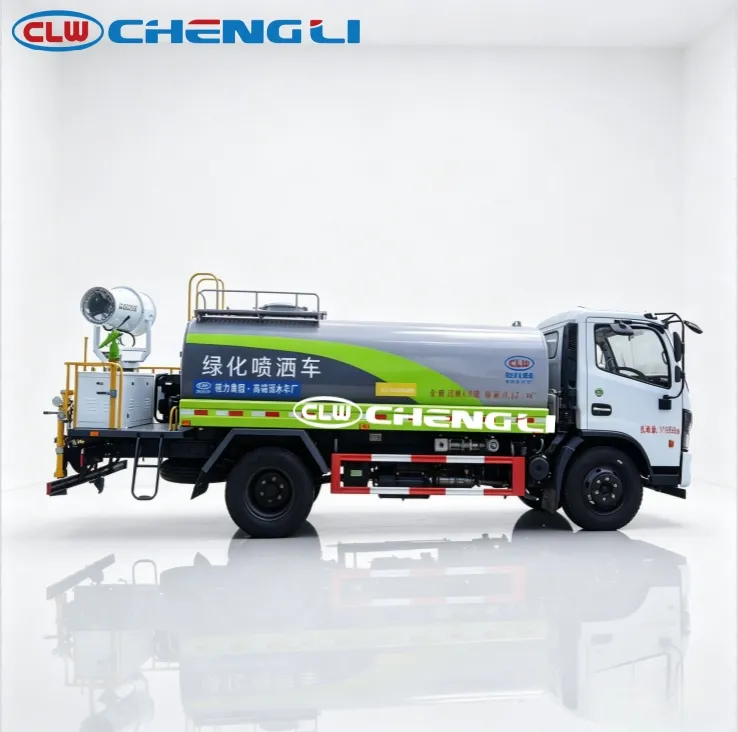

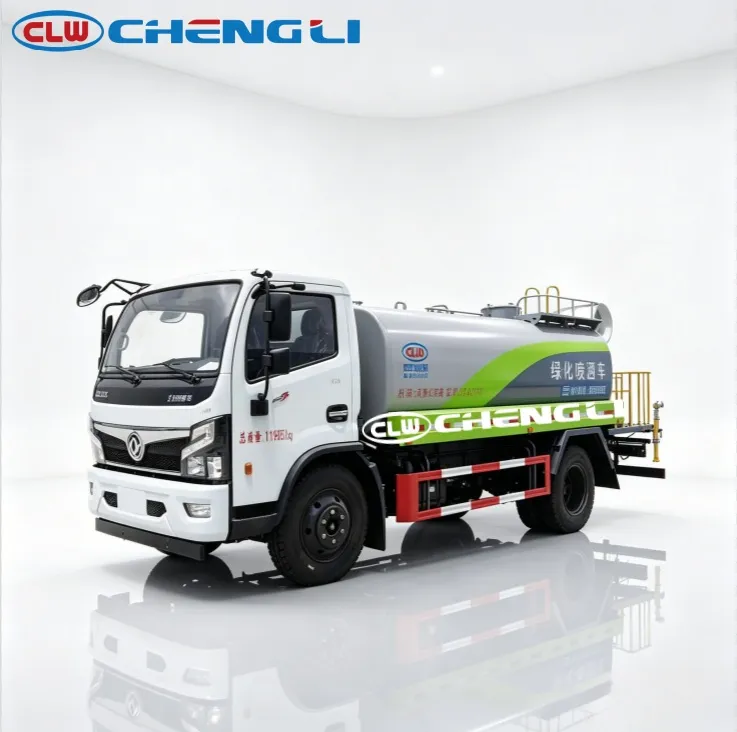

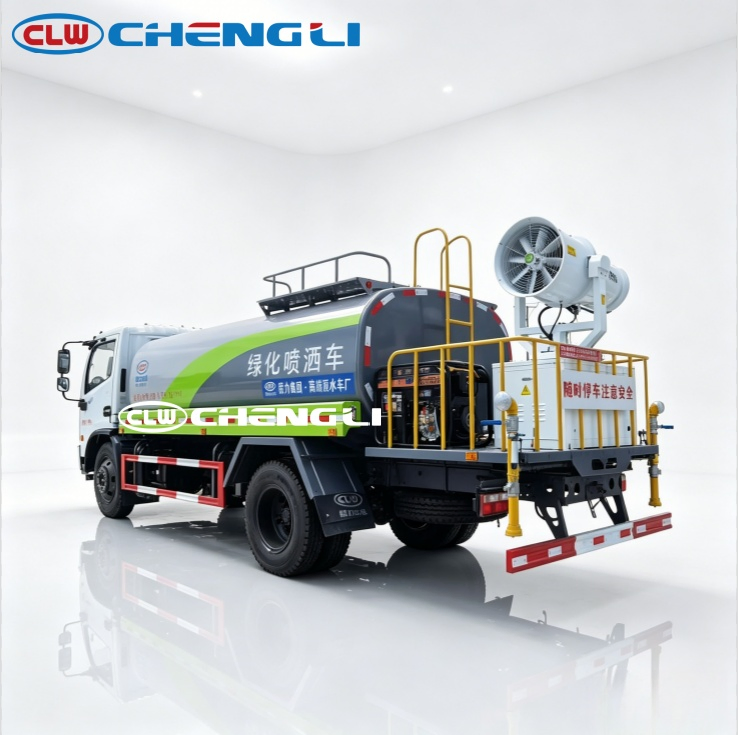

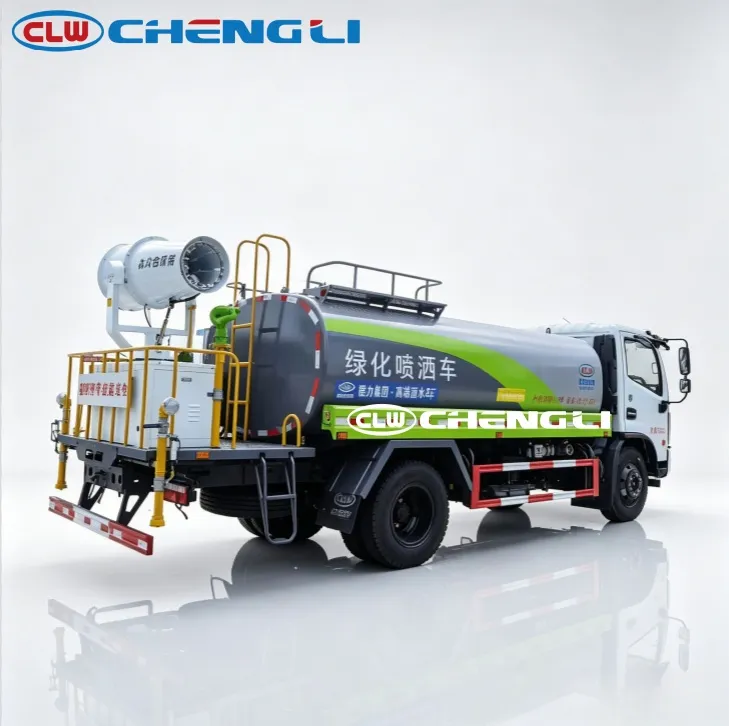

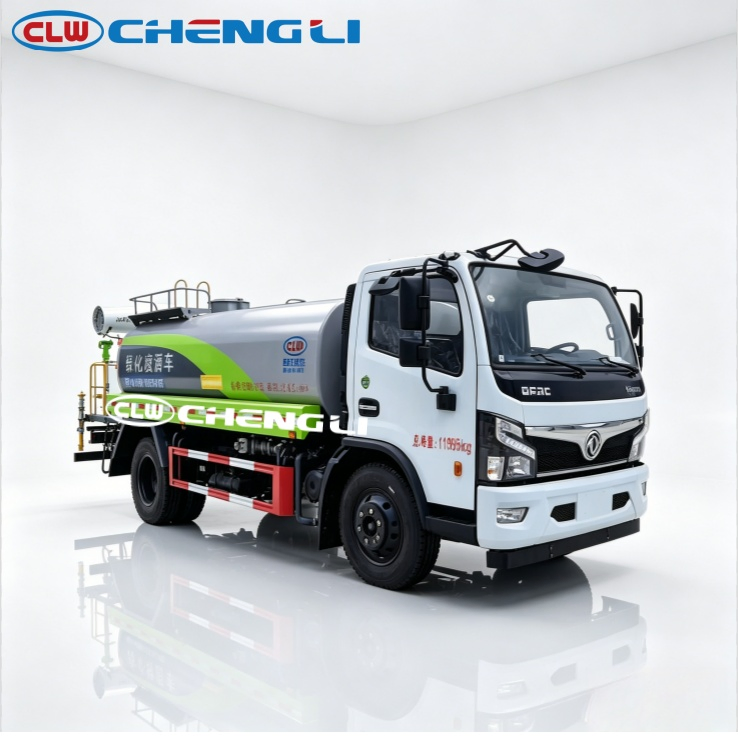

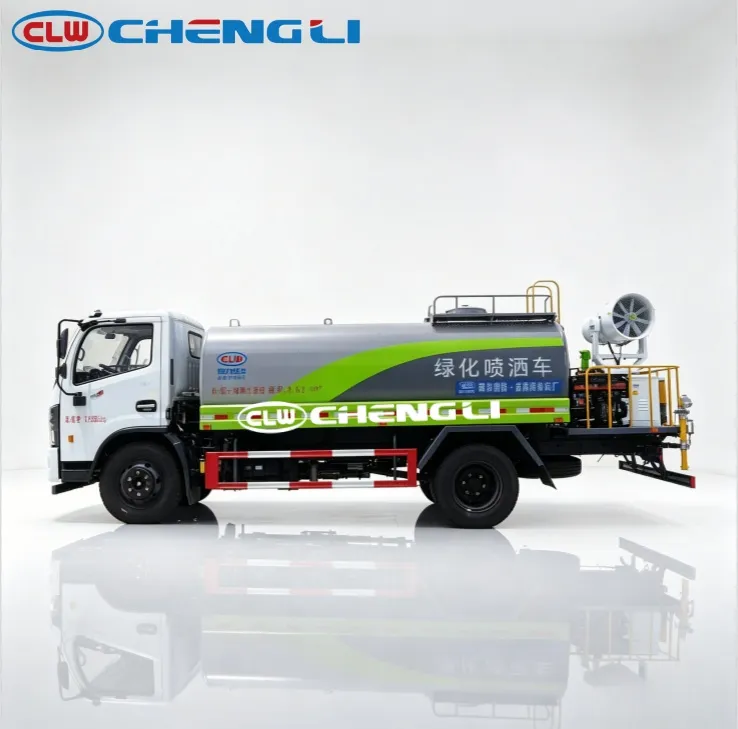

The Dongfeng 9.28 cbm dust suppression truck handles street, construction-site and quarry dust in one 4x2 unit: a 9,280-litre Q235B tank with fog cannon, duckbill front flushing at 12 m plus, fan-shaped rear spray at 6 m plus, dual side sprayers covering 20 m2 plus and a 65 mm fire connector.
Typical applications: Street, construction, demolition and quarry dust suppression; cooling and emergency water.
KEY FEATURES
What this configuration offers
65 mm fire connector
Hydrant filling plus emergency fire assistance.
Four spray modes
Flush, sprinkle, side-spray and cannon from one tank.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- 4x2, 3,800 mm wheelbase, axle loads 4,350/7,645 kg
- Dimensions
- 7,400 x 2,350 x 3,000 mm; approach/departure 18/12 deg
- Front flushing
- Duckbill high-pressure nozzles, 12 m or more (listed)
- Rear sprinkling
- Fan-shaped nozzles, 6 m or more (listed)
- Tyres
- 7.00R16
Body and tank
- Spray widths
- Front 12 m plus / rear 6 m plus / side 20 m2 plus
- Tank
- 9,280 L Q235B (listed)
Working equipment
- Control
- One-button in-cab with PTO linkage
- Fire connector
- 65 mm standard (listed)
- Side sprayers
- Adjustable dual guns, 20 m2 or more coverage (listed)
- Spray system
- Duckbill front, fan rear, dual side guns, jet/mist cannon
- Water cannon
- Jet and mist modes on rear platform (listed)
Operating performance
- GVW / curb weight / payload
- 11,995 kg / 6,630 kg / 5,170 kg (listed)
- Max speed
- 103 km/h (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Dust sources and area, working hours, water source (hydrant or pond)
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it connect to a hydrant?
Yes - a standard 65 mm fire connector is listed for hydrant filling.
Is it right for mines?
It suits construction sites, quarries and streets; for open-pit haul roads see the 50-ton 6x6 mine truck in the same section.
What is it built on?
A Dongfeng 4x2 at 11,995 kg GVW with a 5,170 kg payload and 3,800 mm wheelbase.
What spray modes does it have?
Front duckbill flushing at 12 m or more, rear fan spray at 6 m or more, dual side guns covering 20 m2 or more, and a jet/mist cannon on the rear platform.
