VEHICLE OVERVIEW

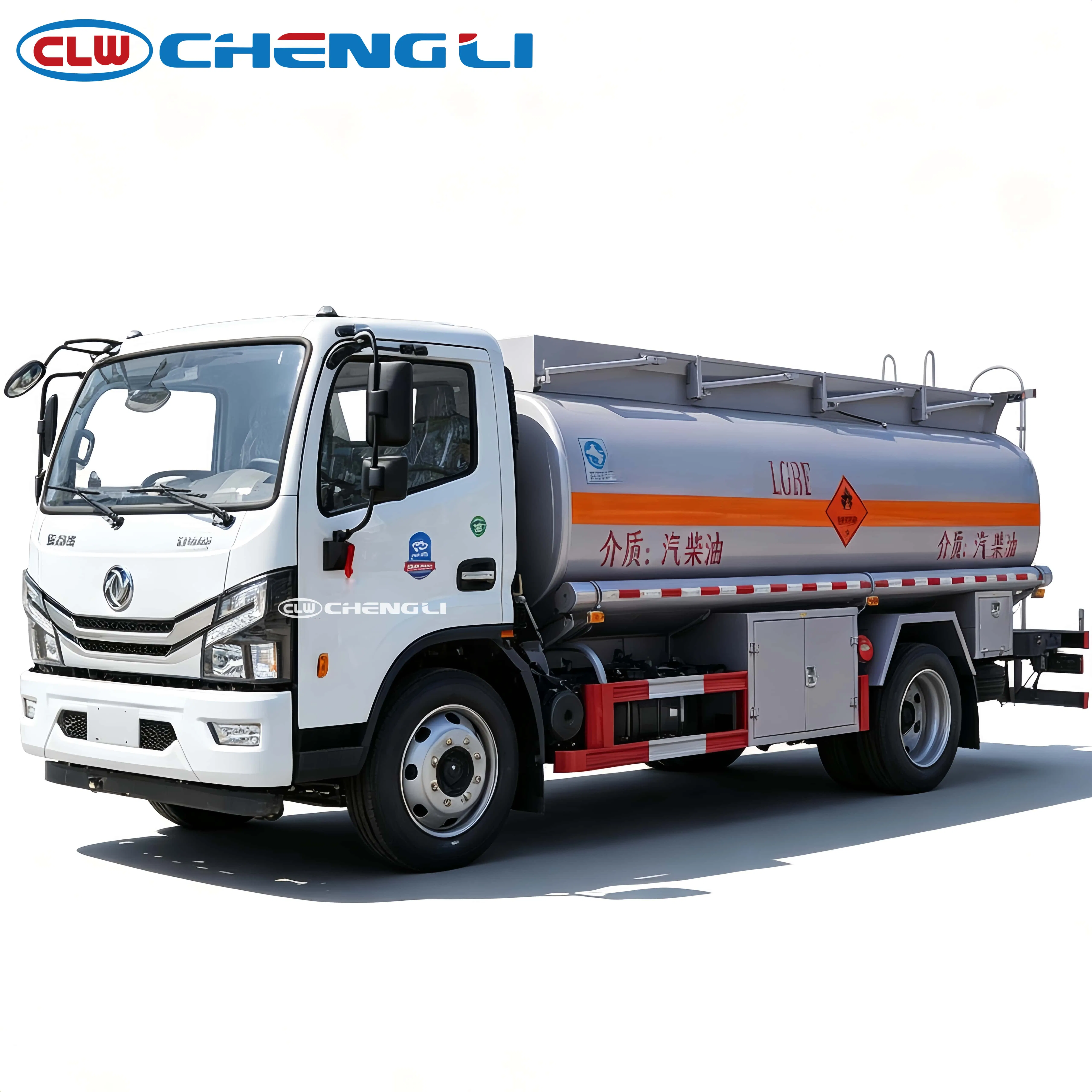

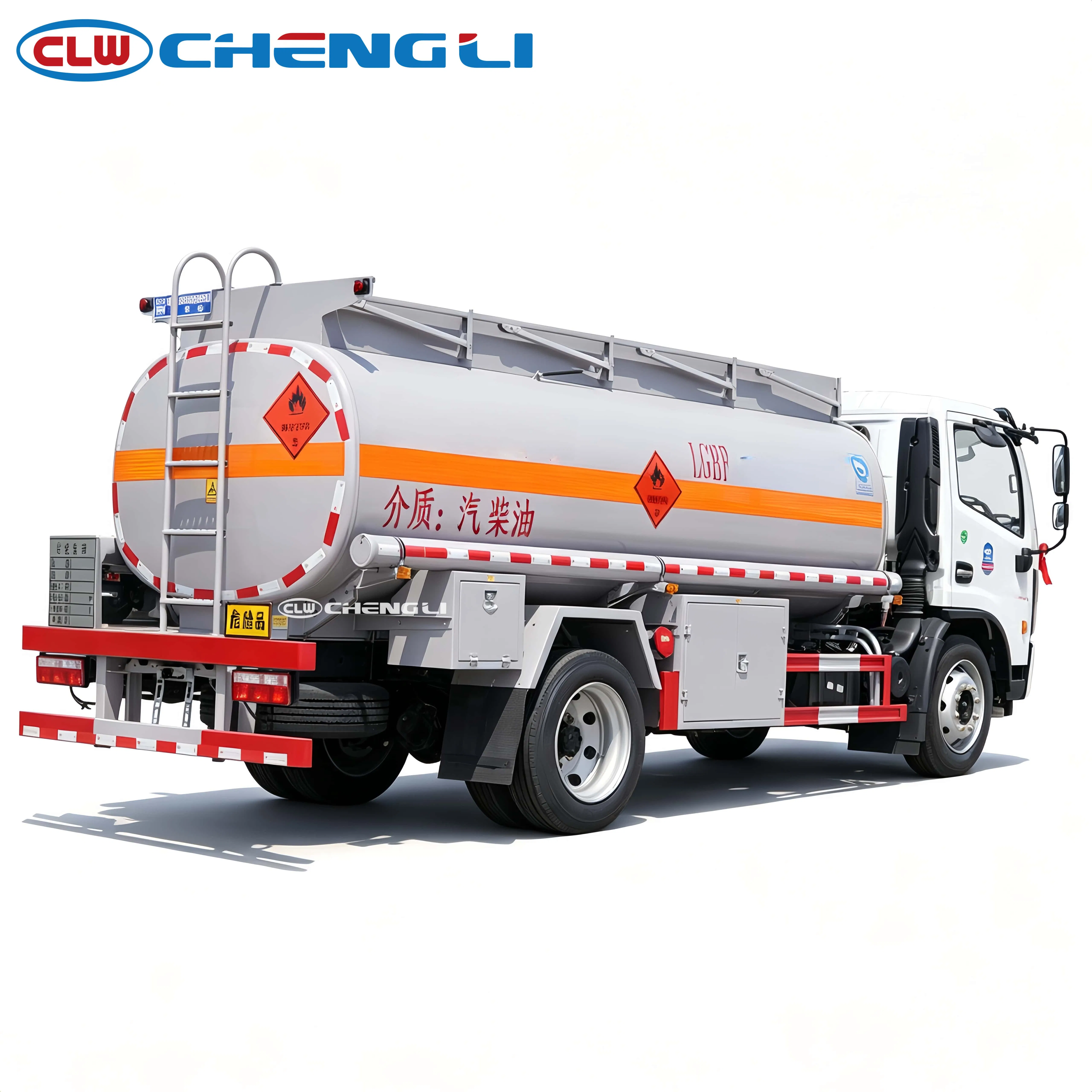

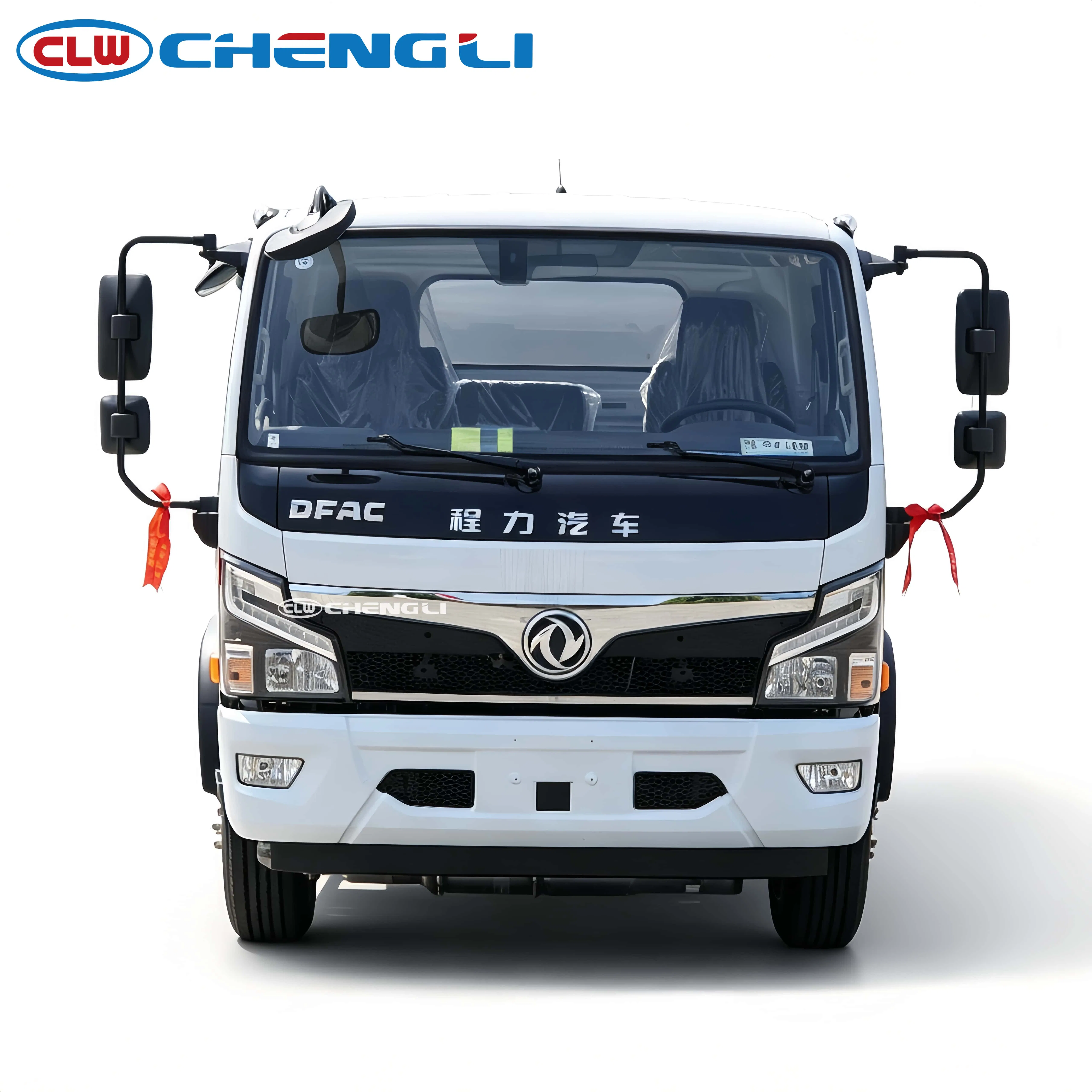

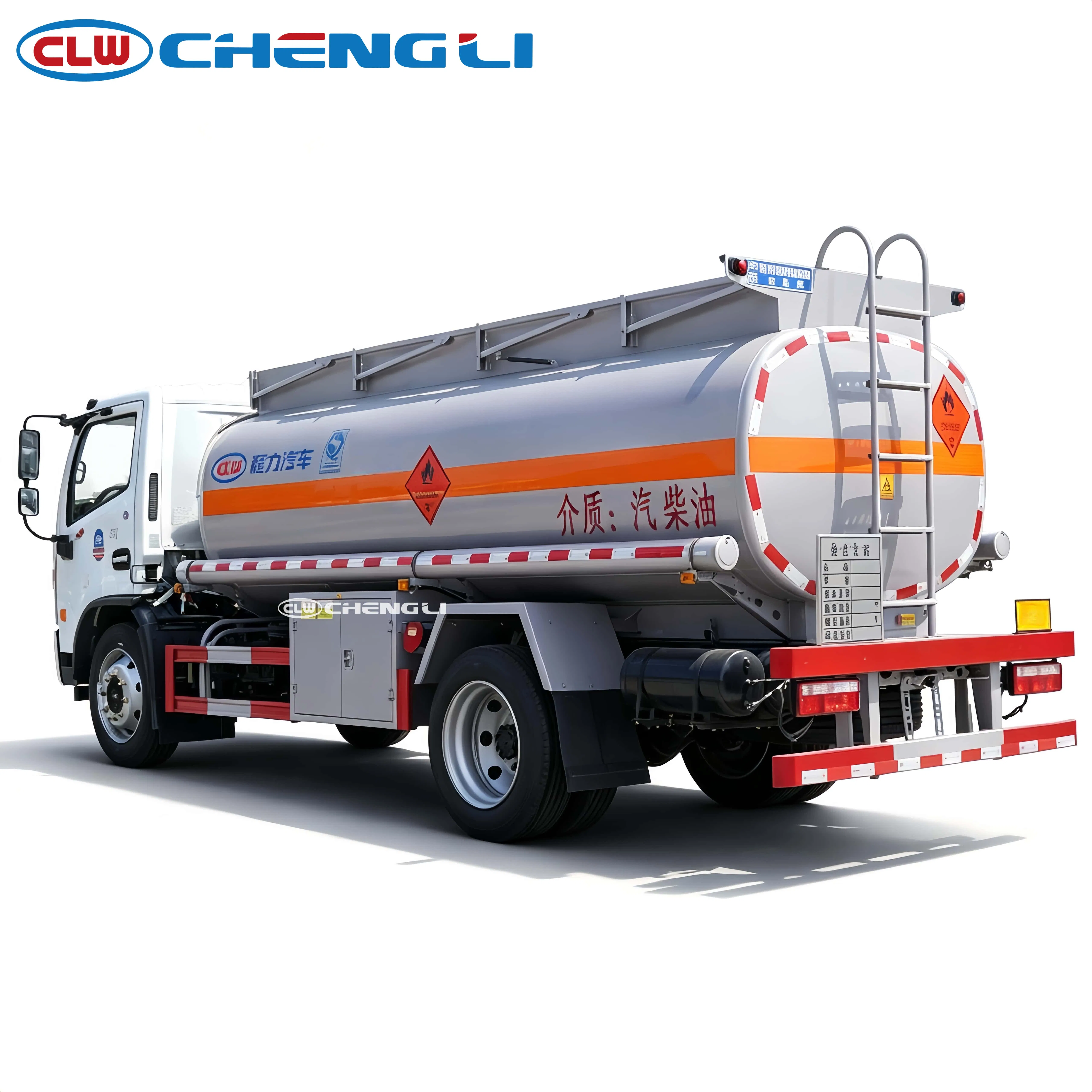

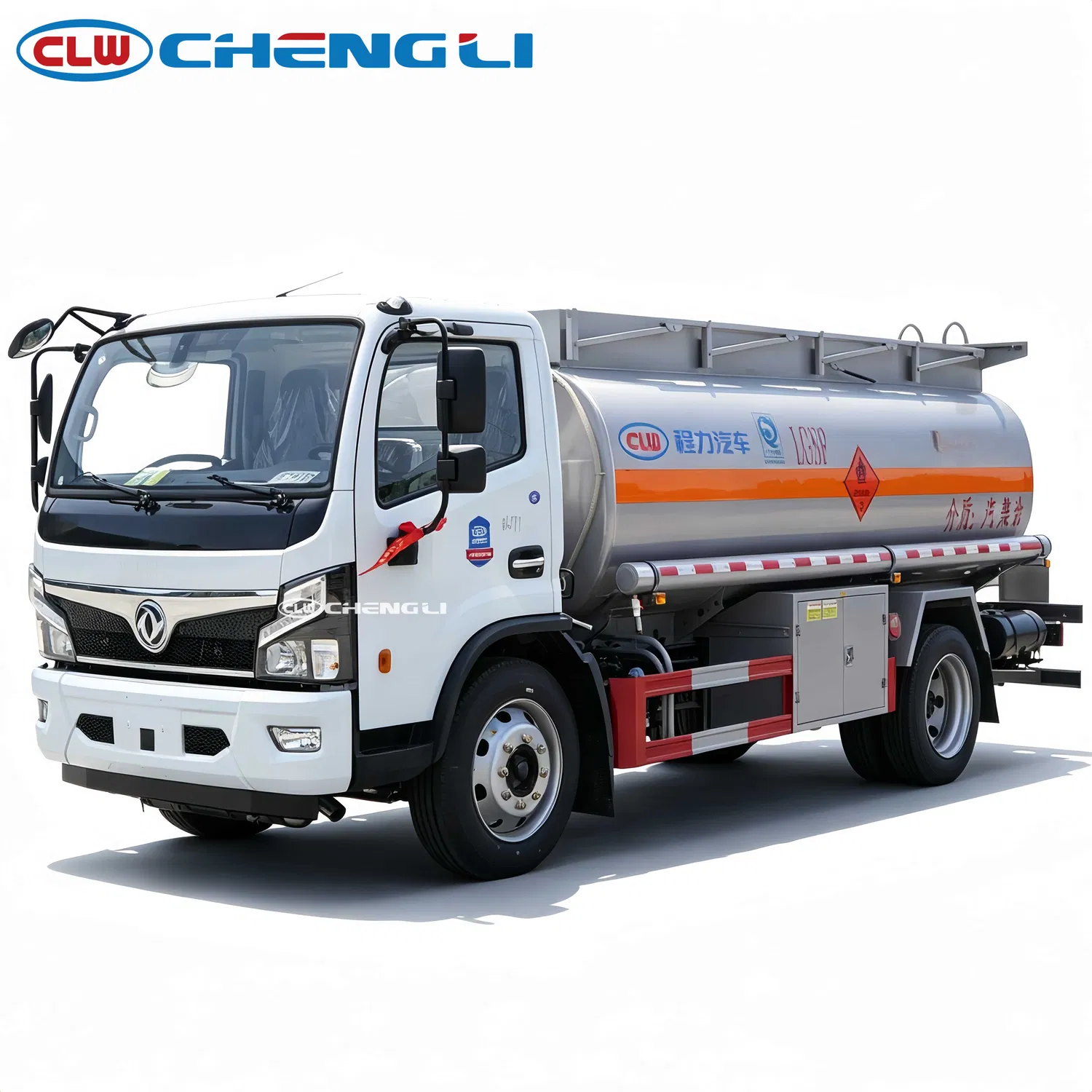

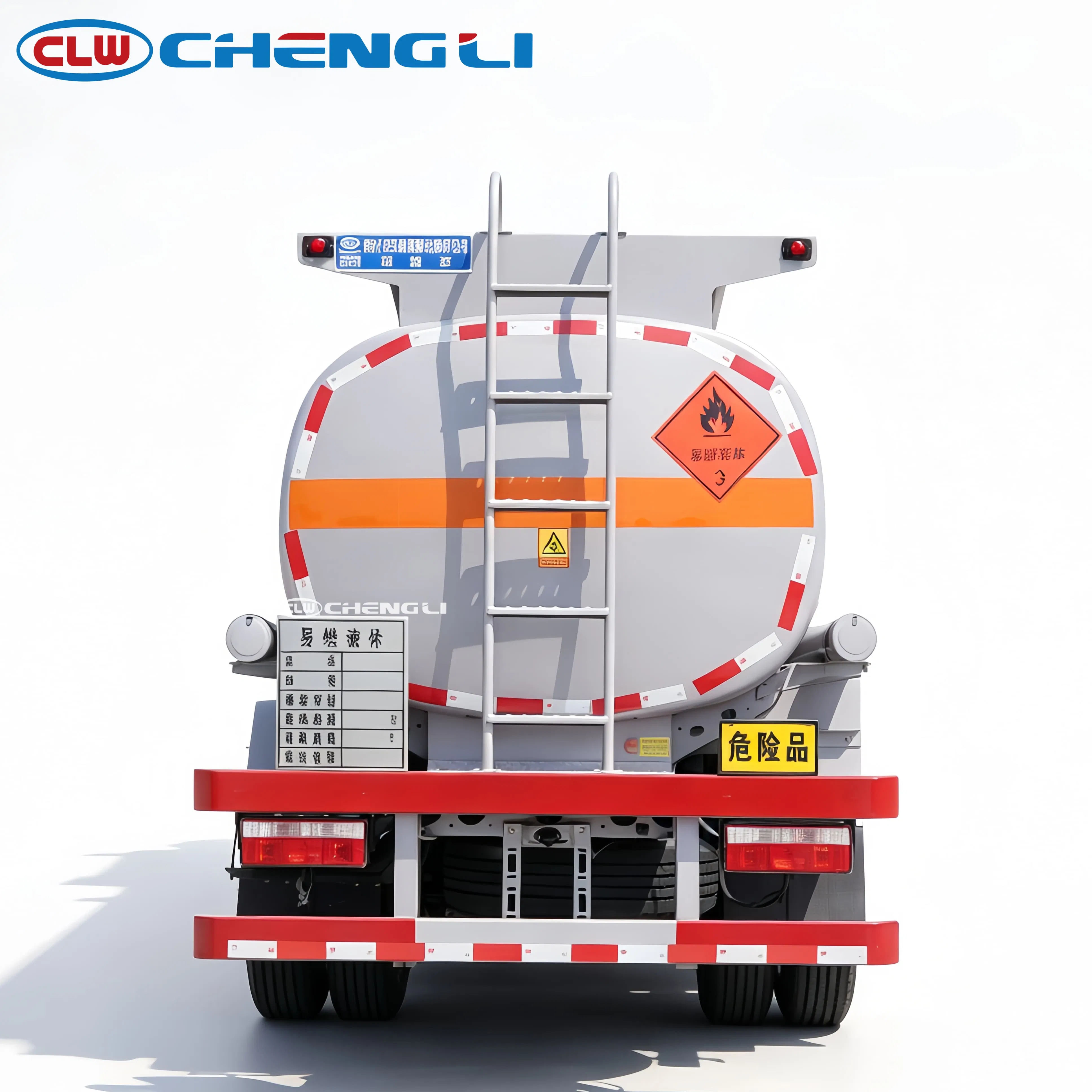

The Dongfeng 9,000 L fuel tank truck pairs an 8-10 cbm, 6 mm carbon-steel tank with a Yuchai YCY30165 165 hp engine, FAST 8-speed gearbox and a European-standard bottom loading system, with dispenser choices for on-site refuelling of engineering fleets and station supply.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- Dongfeng Frica (DF FRICA), 4x2, 3,800 mm wheelbase
- Engine
- Yuchai YCY30165, 165 hp (listed)
- Overall dimensions
- 6,970 x 2,200 x 2,800 mm (basic field prints 7,000 mm)
- Suspension
- Leaf springs with air suspension (listed)
- Transmission
- FAST 8-speed (listed)
- Tyres
- 250/70R22.5 tubeless (basic field prints 255/70R22.5)
Body and tank
- Media
- Gasoline, diesel and petroleum products (listed)
- Tank build
- Carbon steel (aluminium alloy and stainless quoted as options), 6 mm wall (listed)
- Tank volume
- 8-10 cbm class; title states 9,000 L / 9 cbm, description 8.5 cbm - confirm exact volume
Working equipment
- Loading
- European-standard bottom loading system; supports top filling and bottom loading with anti-overflow protection
- Pump
- 80/60 fuel special pump (listed)
Operating performance
- GVW / curb weight
- 12,000 kg / 5,155 kg
- Max speed
- 80 km/h (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it dispense fuel on site?
The title lists dispenser choices; specify the dispenser, metering and hose reel set in the quotation.
How is it operated in cold weather?
The supplier FAQ advises draining residual liquid from the pump in sub-zero temperatures and using antifreeze as required.
What engine and gearbox?
A Yuchai YCY30165 165 hp engine with a FAST 8-speed gearbox (listed) - both named components you can check parts and service for.
What loading system does it use?
A European-standard bottom loading system is listed, with support for both top filling and bottom loading, stable flow control and anti-overflow protection.
What tank volume does it have?
The class is 8-10 cbm: the title states 9,000 L, the effective-volume field 8-10 cbm and the description 8.5 cbm. All figures are shown; confirm the exact volume in the quotation.
