VEHICLE OVERVIEW
The Dongfeng 4x2 urban recovery wrecker handles city breakdowns, illegally parked vehicles and fleet repositioning: a 6.5 m flatbed (including ramp) on a light 4,495 kg GVW chassis, with single or dual hydraulic loading ramps and a 5# patterned steel plate deck on 100x100 mm square-tube crossbeams.
Typical applications: City breakdown recovery, parking enforcement tow and fleet repositioning.
KEY FEATURES
What this configuration offers
Patterned-plate deck
5# patterned steel on square-tube crossbeams for grip and stiffness.
4,495 kg listed GVW
Confirm the licence class and recovery operating rules in the destination market.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- Dongfeng EQ1125SJ8CDC, 4x2, wheelbase 3,300 / 3,360 / 3,600 mm options
- Engine
- D25TCIF1, 150 hp (listed)
- Overall dimensions
- about 5,995 x 2,300-2,550 x 2,350-2,580 mm (spec table; basic field prints 9,000 mm - see notes)
- Seats
- 2-3 persons
- Transmission
- 8-speed manual (listed)
Body and tank
- Bed
- 6.5 m incl. ramp, 5# patterned plate
- Crossbeams
- 100 x 100 mm square tube
- Flatbed
- 6.5 m long including ramp; 5# patterned steel plate surface (listed)
- Frame
- 280 mm double-layer reinforced
- Structure
- 100 x 100 mm square-tube crossbeams on a 280 mm double-layer reinforced frame (listed)
Working equipment
- Loading ramps
- Single or dual hydraulic configuration (listed)
- Ramps
- Single or dual hydraulic (listed)
Operating performance
- GVW / curb weight
- 4,495 kg / 2,800 kg
- Rated load (bed)
- 1,500 kg (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Vehicle types recovered, calls per shift, urban or highway duty
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How are vehicles loaded?

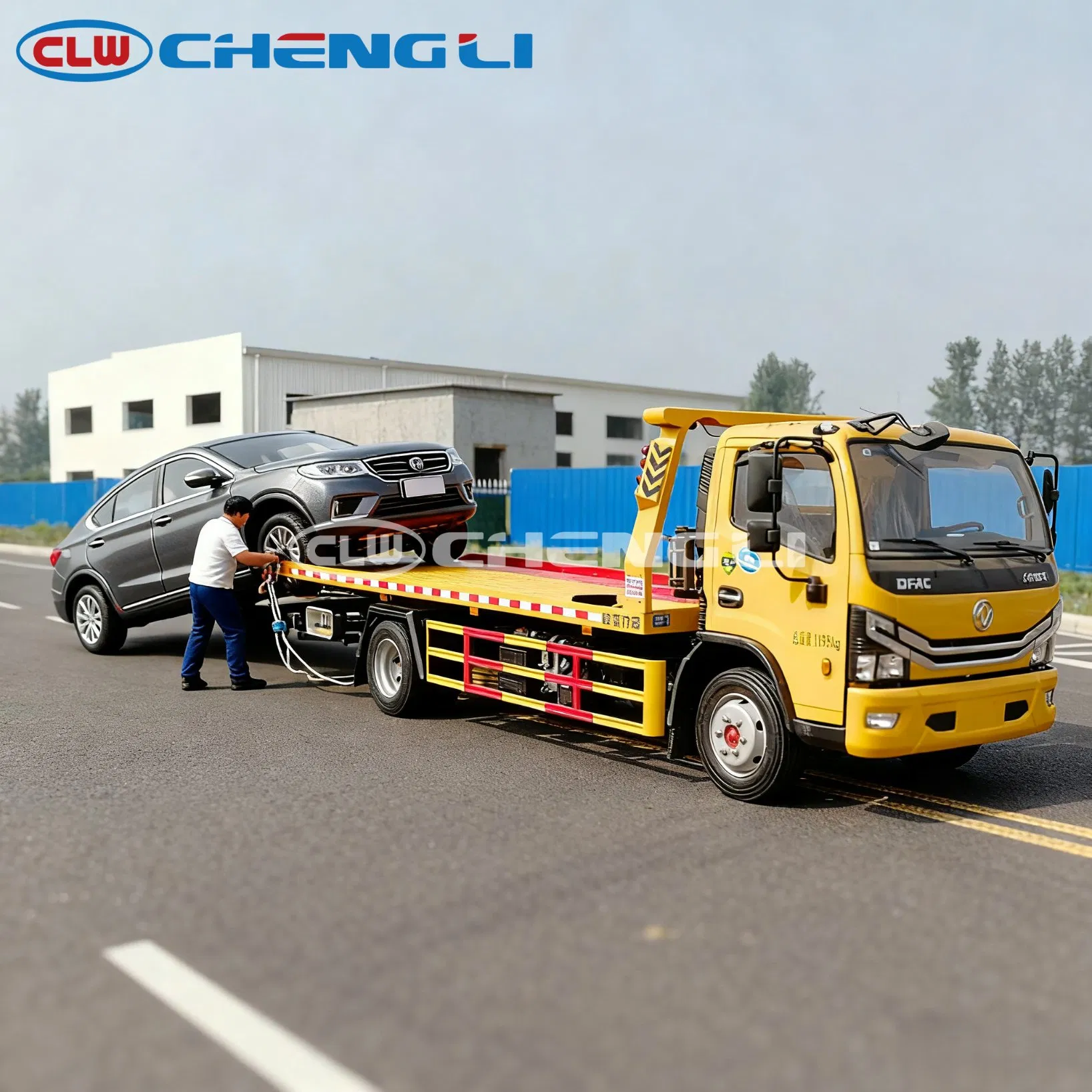

Driven or winched up hydraulic loading ramps (single or dual) onto the 6.5 m patterned-plate bed.
How is the bed built?
100 x 100 mm square-tube crossbeams with a 5# patterned steel plate surface on a 280 mm double-layer frame.
What crew options are there?
Air-suspension seats, factory air conditioning, digital tachograph and remote key are listed options.
What vehicles can it recover?
The listed bed rating is 1,500 kg on a 4,495 kg GVW chassis, suited to cars and light vans within the final rated limits. Confirm local licence and recovery rules before use.
