VEHICLE OVERVIEW
Septic tank cleaning for households, hotels, schools and public toilets

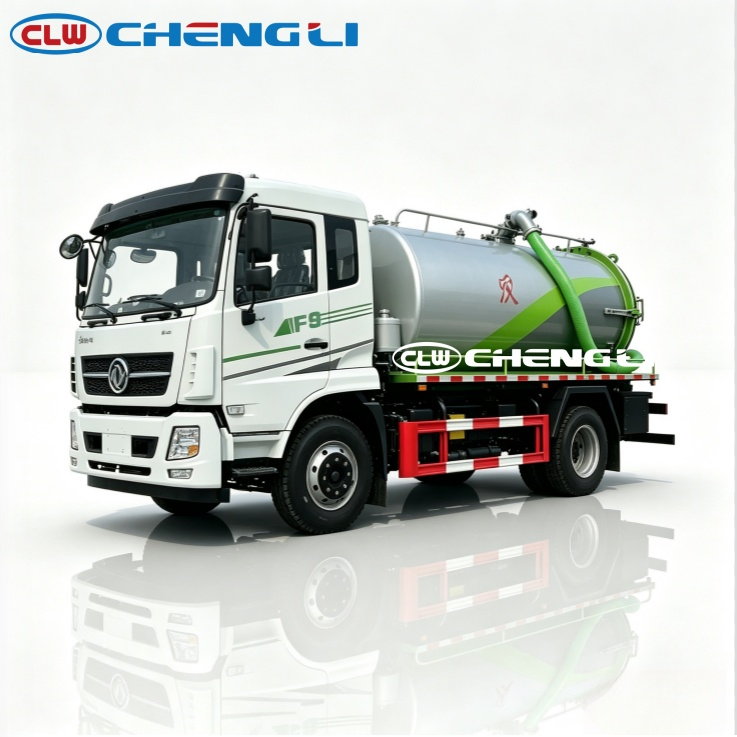

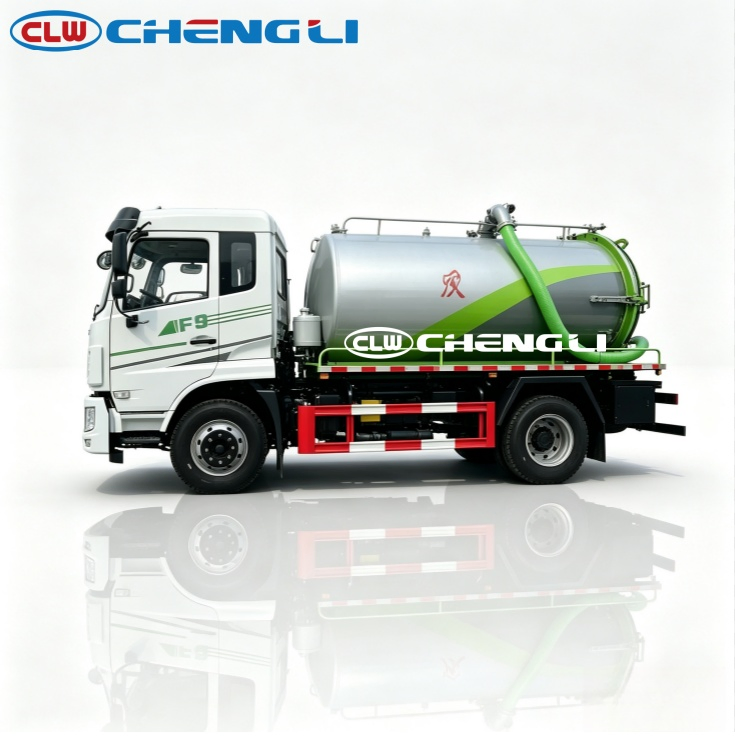

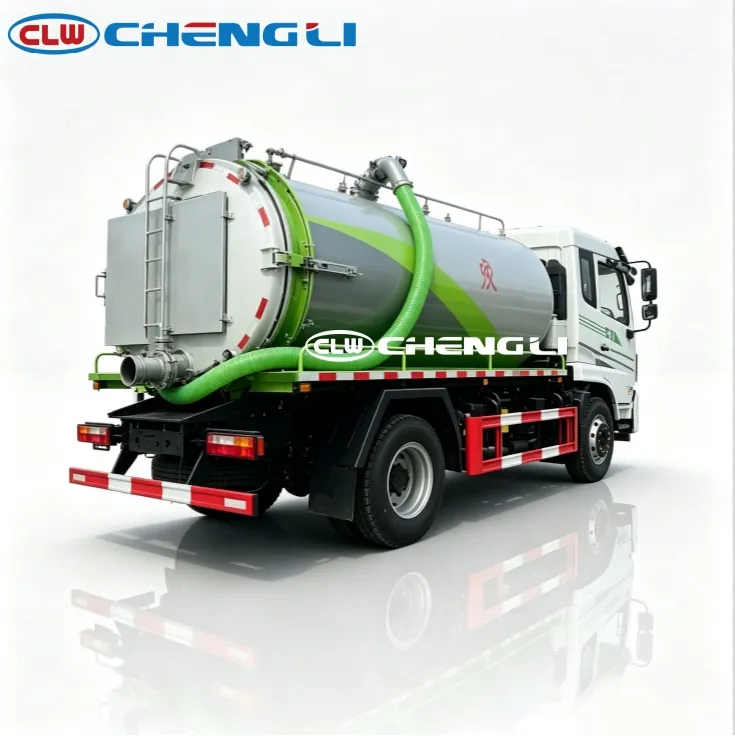

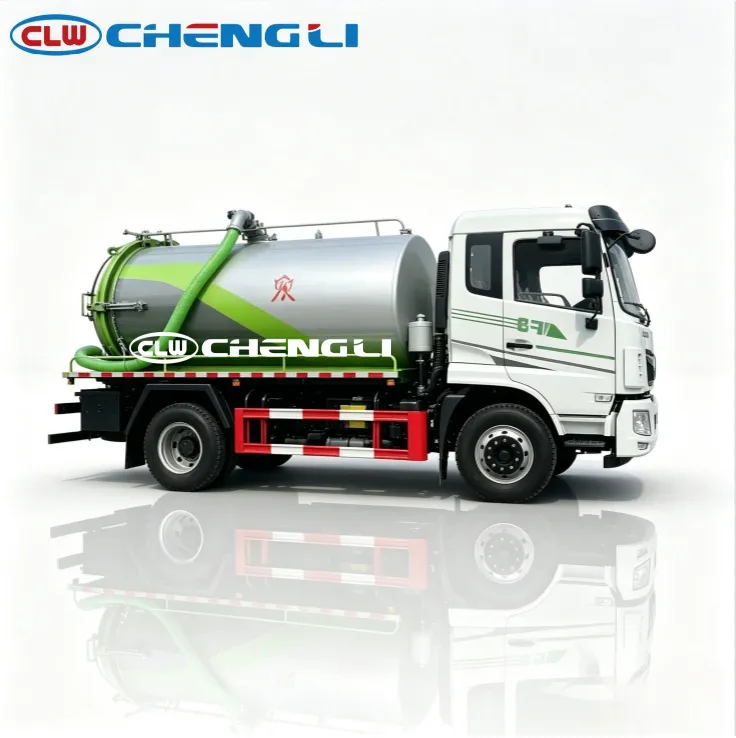

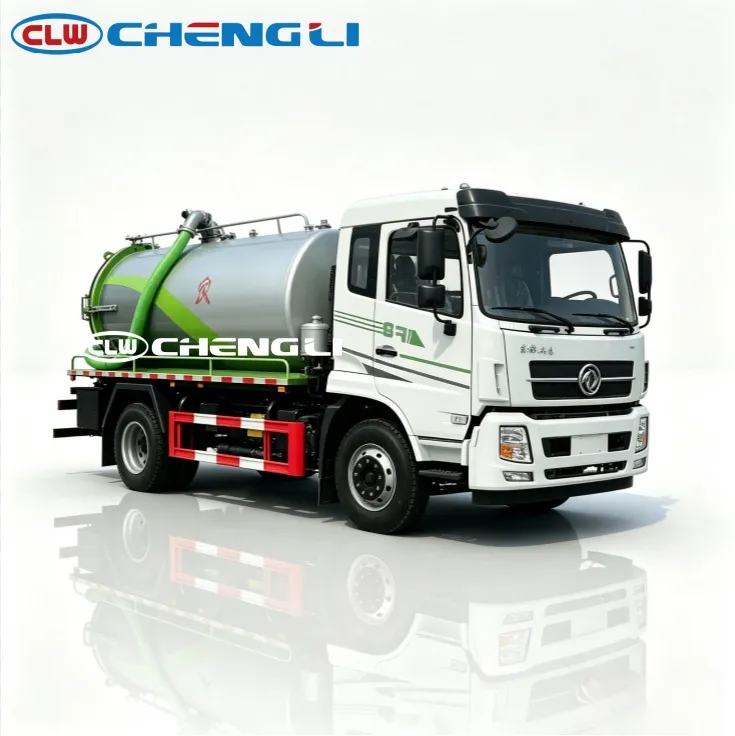

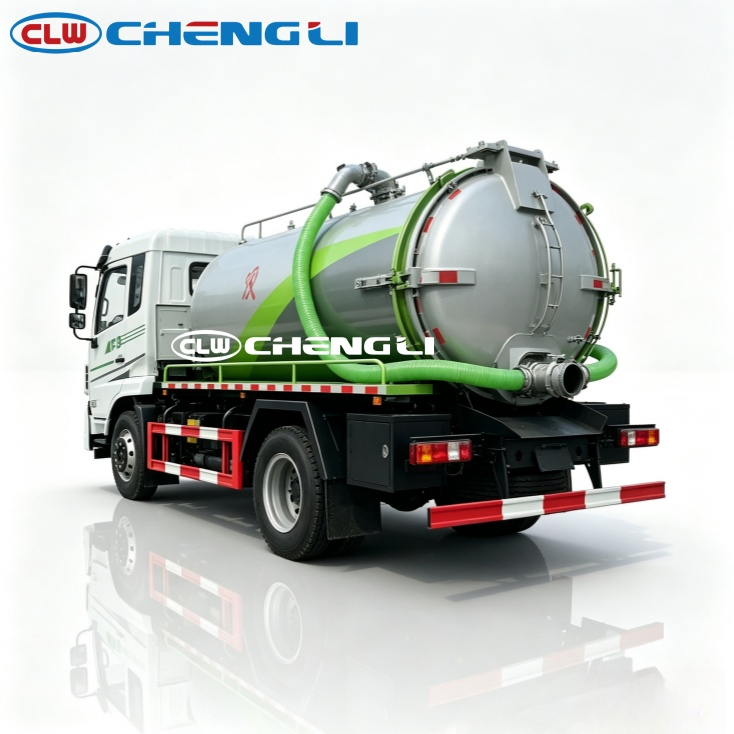

The Dongfeng 11,000 L septic suction truck pairs an 11,000-litre vacuum tank with a single-rear-axle 4x2 chassis at 16,000 kg GVW. It targets septic routes for households, hotels, schools and public toilets, offering high-volume class capacity in a lighter, more manoeuvrable truck.
Typical applications: Septic tank cleaning for households, hotels, schools and public toilets; municipal liquid waste routes where a lighter 16-tonne truck is preferred.
KEY FEATURES
What this configuration offers
Tank size with manoeuvrability
11,000 L on a 7,500 mm, 3,950 mm-wheelbase truck - the listing highlights this balance for institution-heavy routes.
11,000 L consistently listed
Title, basic and detailed fields all agree on the capacity.
16,000 kg GVW
Two tonnes lighter than the 18-tonne trucks in the same class, easing road and bridge limits.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Approach / departure angle
- 21 / 14 deg
- Axle loads
- 5,600 / 10,400 kg
- Chassis
- Dongfeng 4x2, 3,950 mm wheelbase, 245/70R19.5 tyres, leaf springs
- Drive
- Diesel, manual transmission, 150-250 hp listing range, 89 km/h top speed
- Front / rear overhang
- 1,148 / 2,402 mm
- Leaf springs
- 8/10+7 or 12/12+9 (two options listed)
- Overall dimensions
- 7,500 x 2,500 x 3,300 mm
- Tire specification
- 245/70R19.5
Body and tank
- Discharge method
- Hydraulic lifting (tipping) system, listed as available
- Tank build
- Q235 carbon steel, anti-rust treated, hydraulic lifting (tipping) discharge
- Tank capacity
- 11,000 L (title, basic fields and spec table agree)
- Tank dimensions
- about 4,200 x 2,000 x 1,400 mm (listed)
- Tank material
- Q235 carbon steel with anti-rust treatment
Working equipment
- Working principle
- Vacuum suction and tipping discharge tanker layout
Operating performance
- Gross vehicle weight / curb weight
- 16,000 kg / 7,405 kg
- Rated payload
- 8,600 kg
Operating notes
Nominal tank volume is not payload. Plan fills within the 8,600 kg rated payload and legal axle loads; denser sludge means fewer litres per legal trip.
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Stops per round (hotels, schools, public toilets), litres per stop, suction depth, discharge site.
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm tank capacity, vacuum pump model, suction depth and the agreed Dongfeng chassis.
Frequently asked questions
How does the tank discharge?
A hydraulic lifting system tips the tank to empty thick sediment; it is listed as available on this configuration.
How much can it carry?
GVW is 16,000 kg with a 7,405 kg curb weight and 8,600 kg rated payload; GVW minus curb weight is 8,595 kg, matching the listed payload within rounding.
Is it easy to manoeuvre?
The listing emphasises the balance of tank size and manoeuvrability: 7,500 x 2,500 x 3,300 mm overall on a 3,950 mm wheelbase, lighter than the 18-tonne trucks in the same class.
What jobs is it positioned for?
Septic tank cleaning for households, hotels, schools and public toilets - the listing highlights the balance between an 11,000-litre tank and a 7,500 mm overall length.
What tank capacity does it have?
The source lists 11,000 L consistently across title, basic fields and the detailed specification table. In this capacity class the column is labelled 12,000 L - treat 11,000 L as the actual figure for this truck.
