VEHICLE OVERVIEW
Sewage suction, sludge transport and septic cleaning for municipal and industrial work

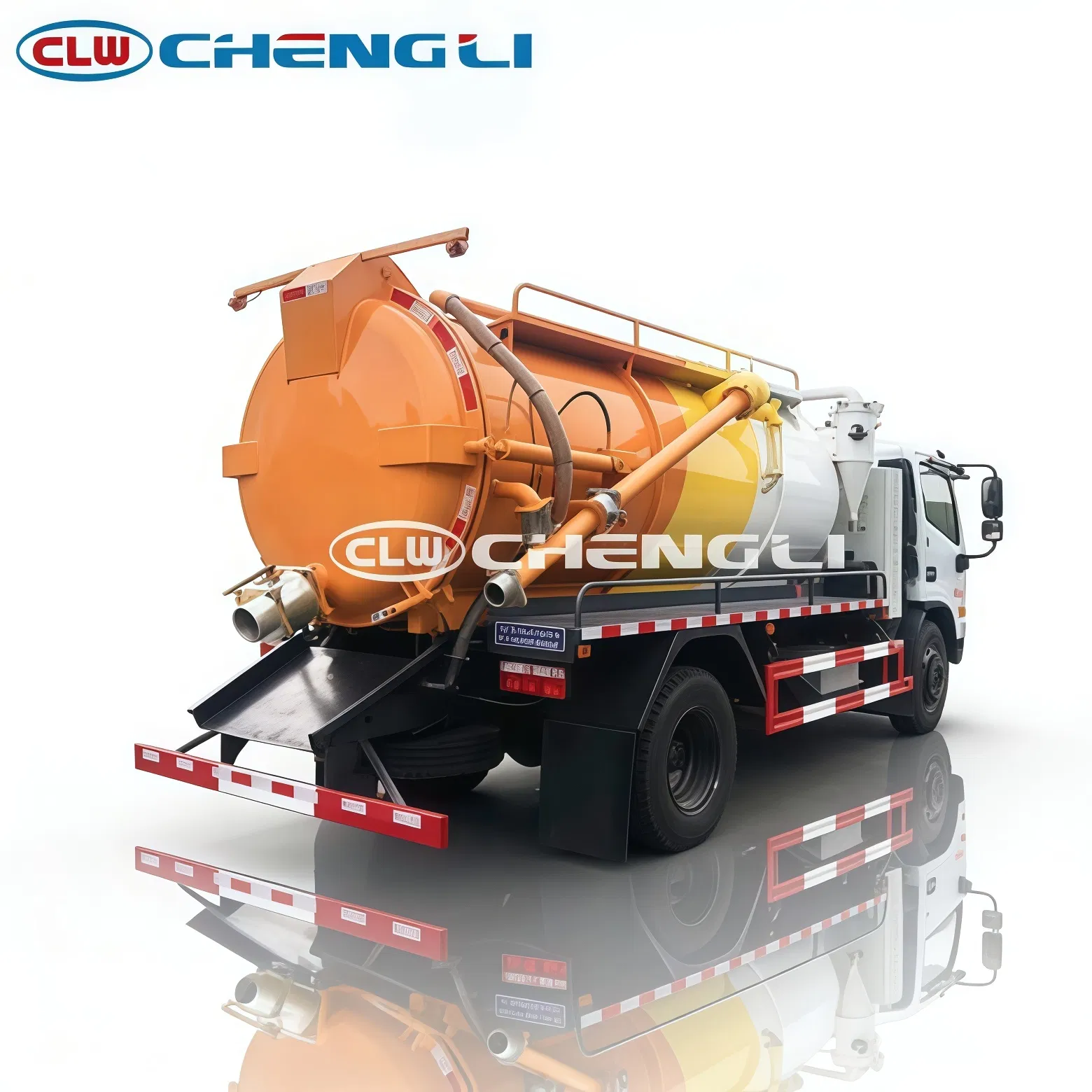

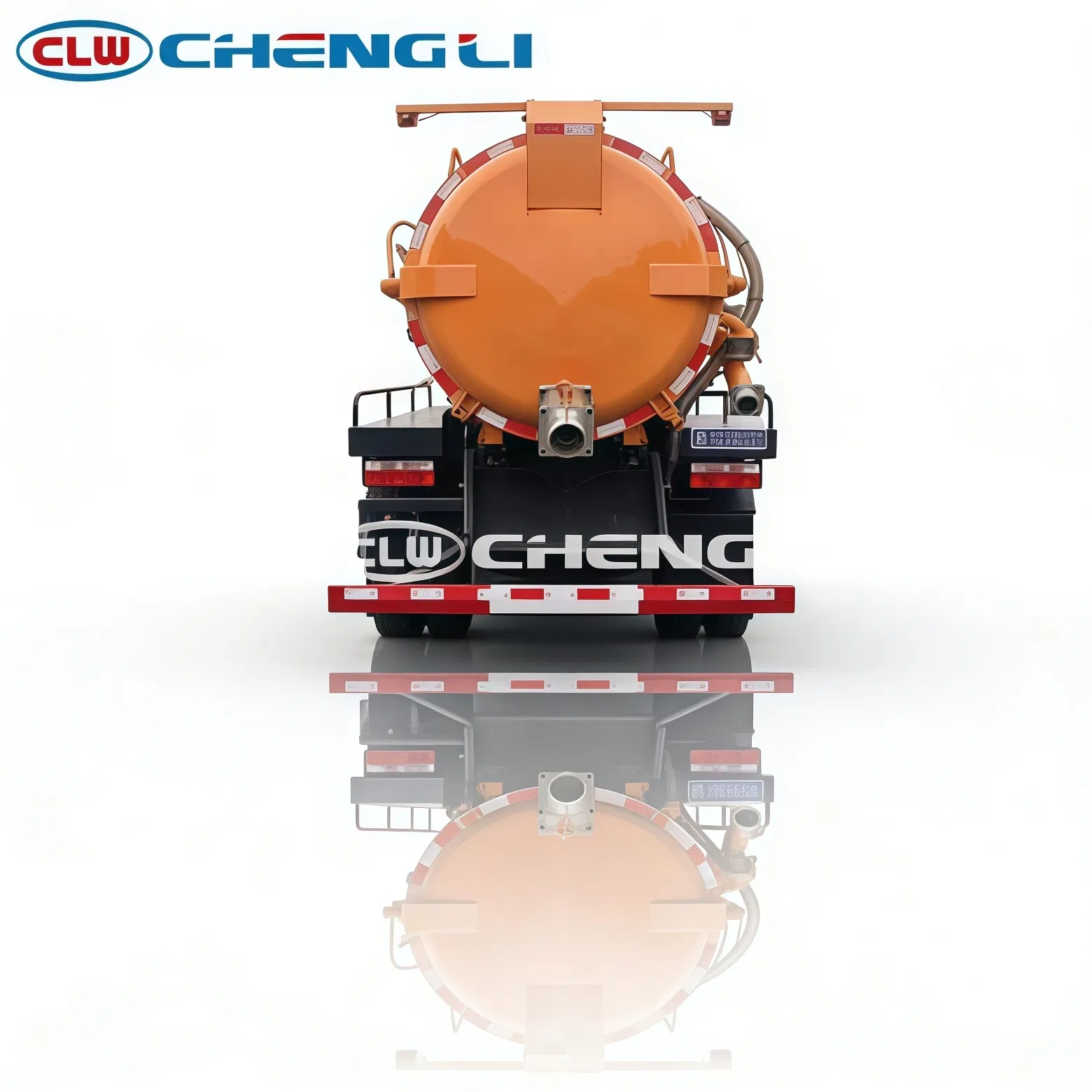

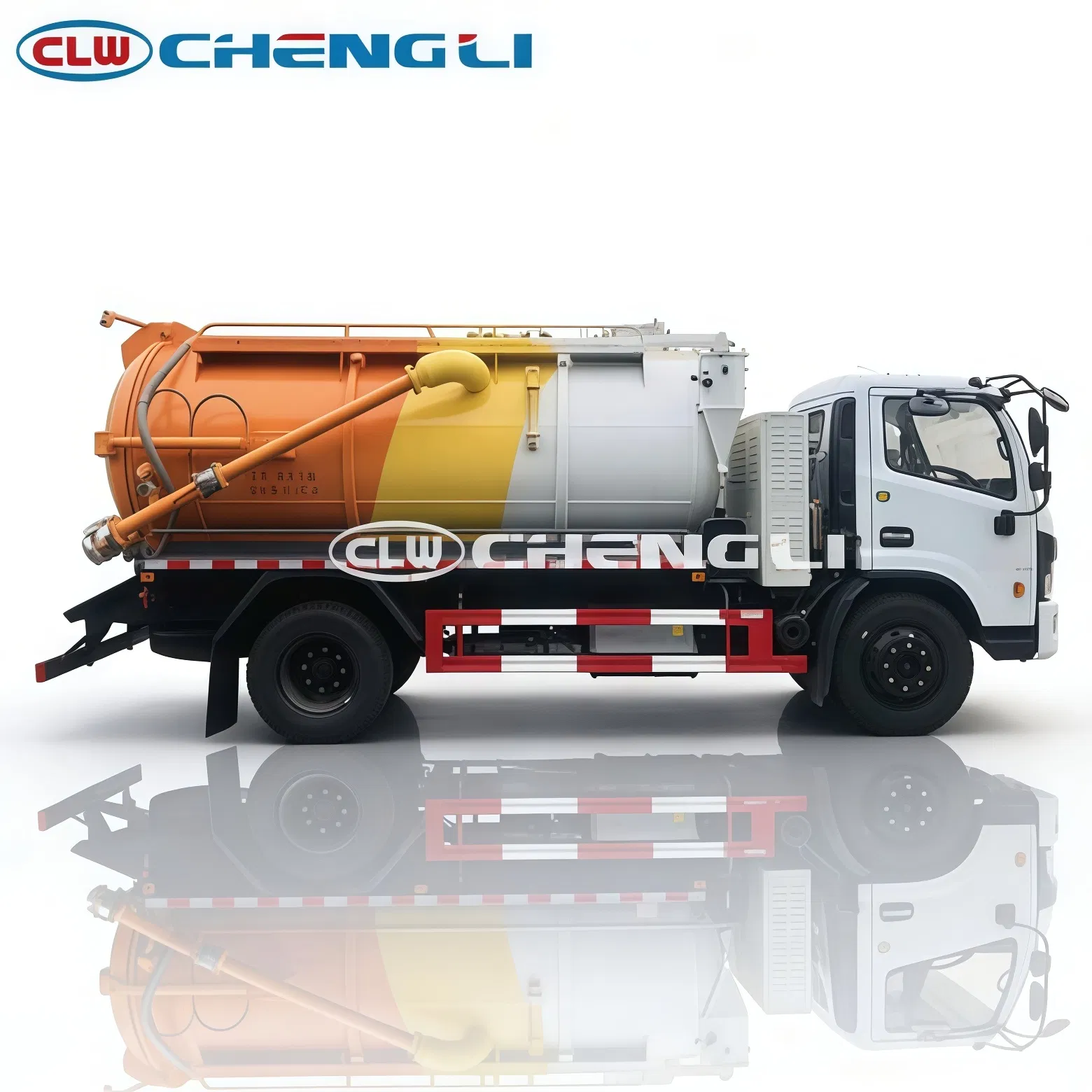

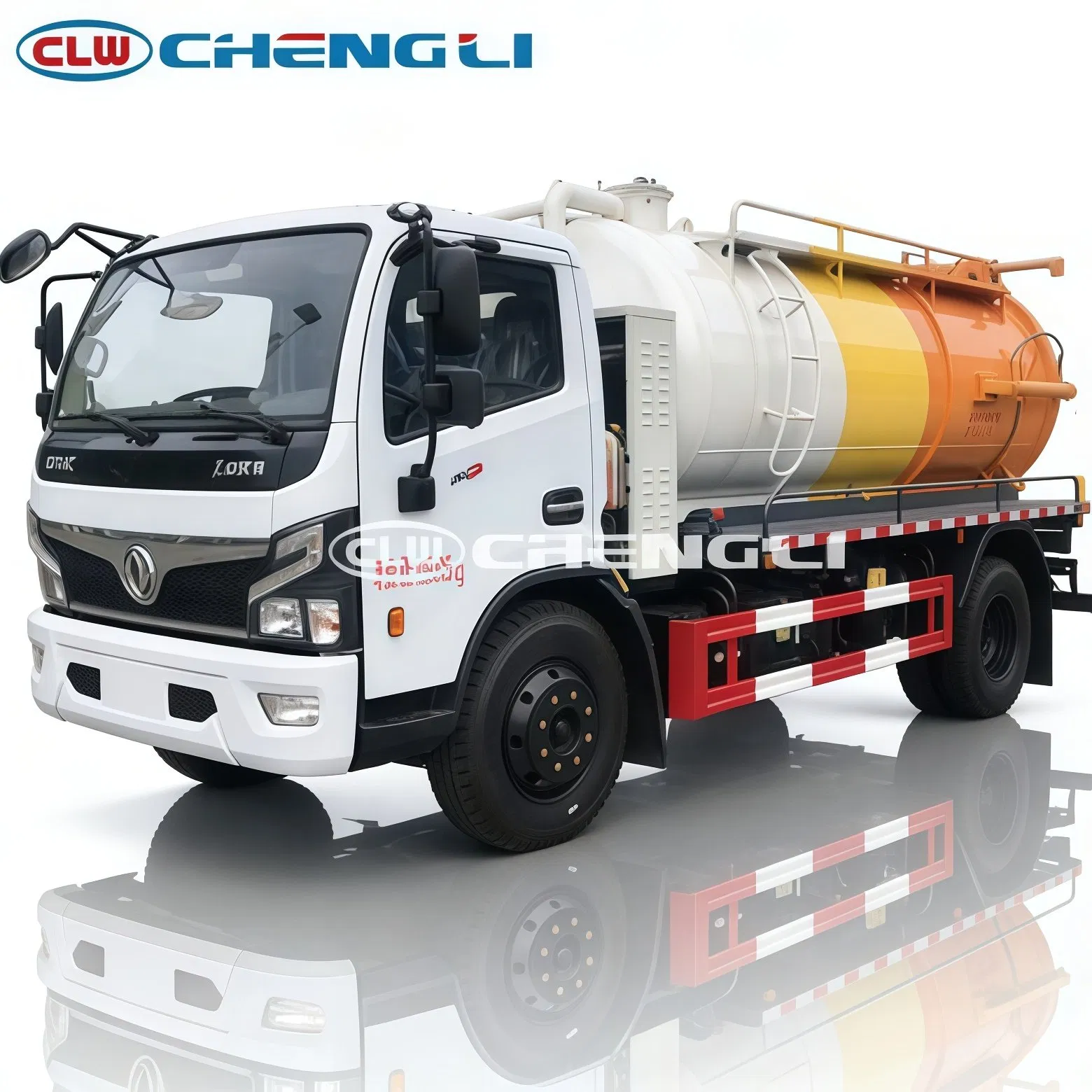

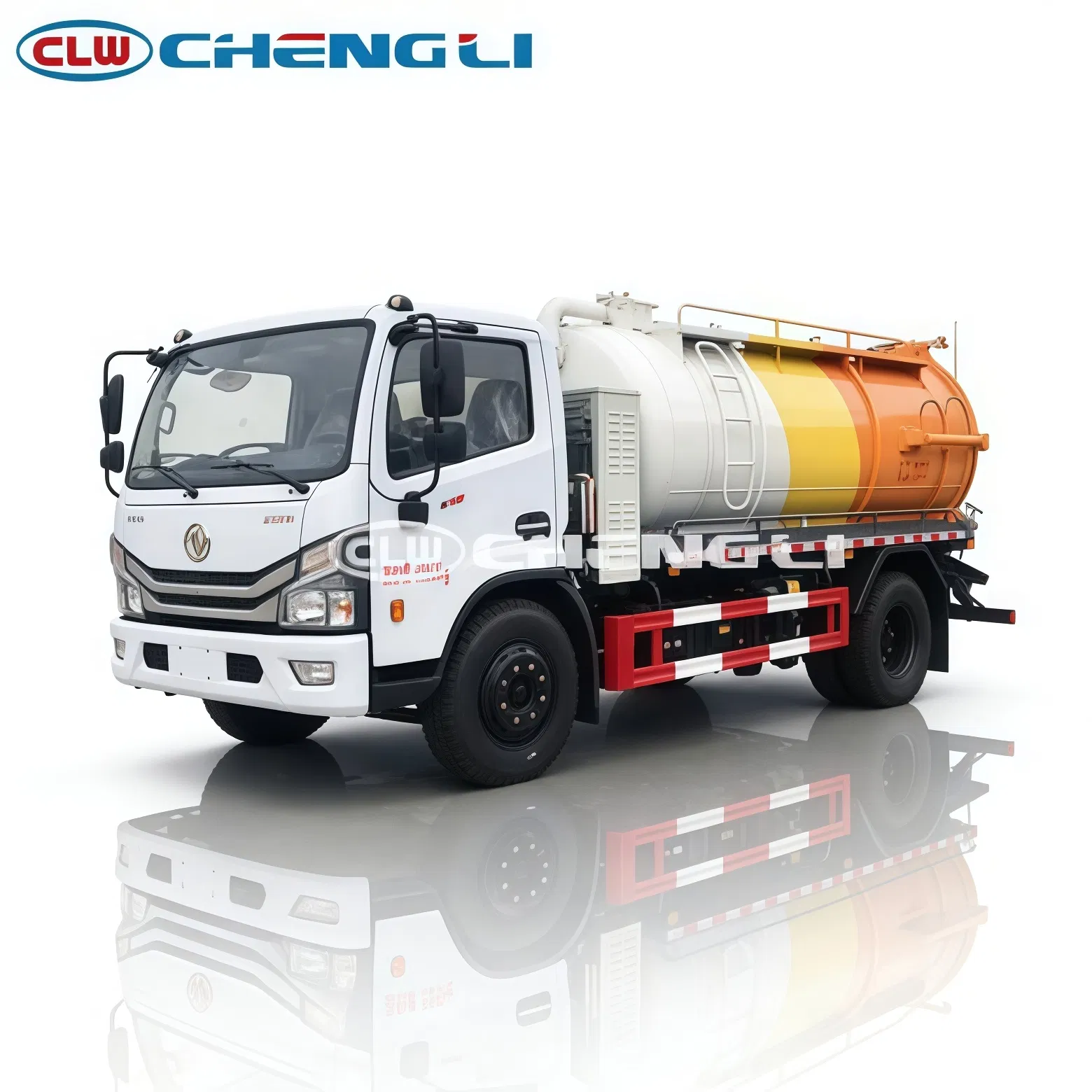

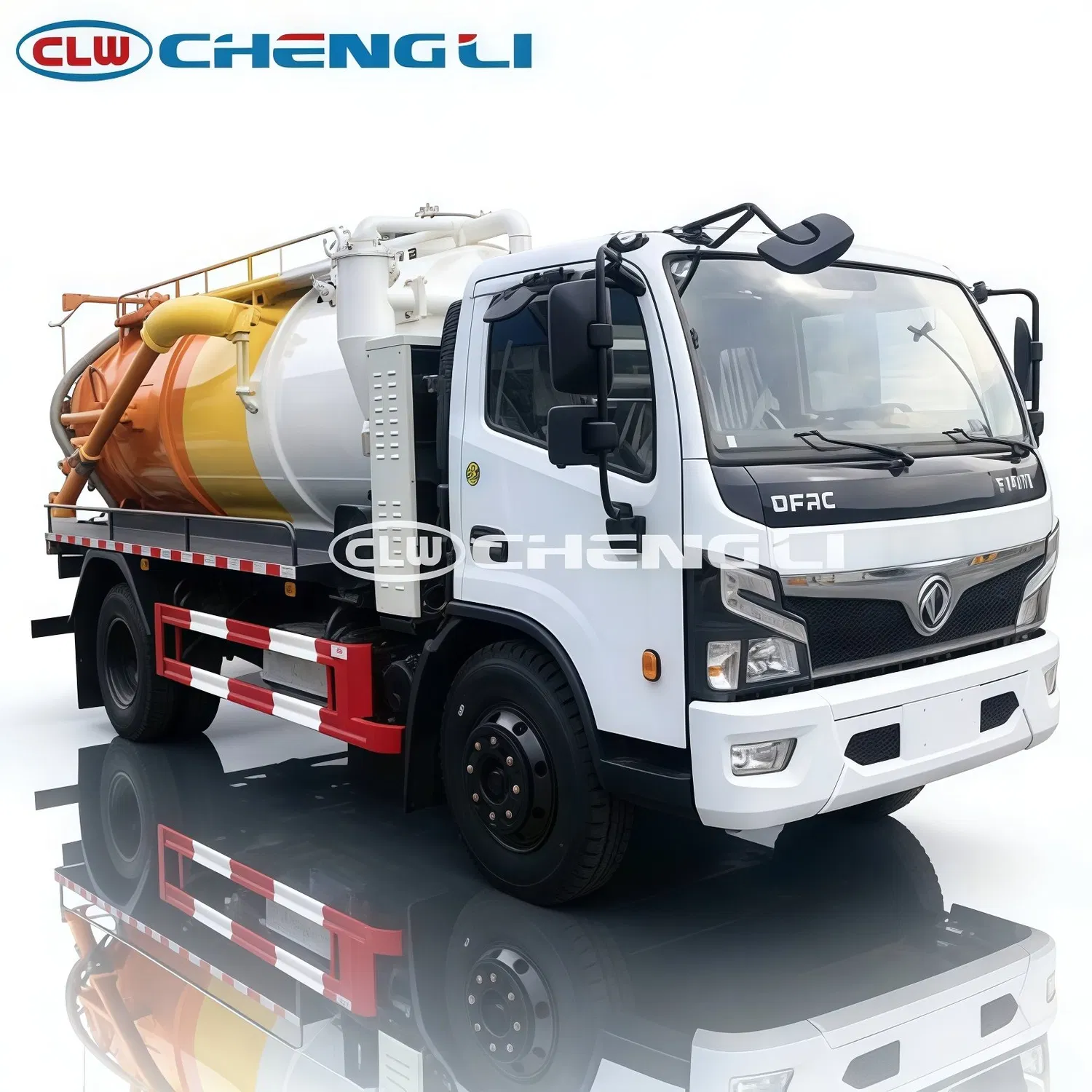

The DFAC 8,000 L vacuum sewage truck is a two-axle liquid-waste workhorse with a consistently listed 8,000-litre, 6 mm carbon-steel tank, a Yunnei 150 hp engine and a 10-ton-class vacuum pump with oil-water separator. An optional high-pressure package lets it double as a combined jetting and vacuum truck for municipalities and contractors.
Typical applications: Sewage suction, sludge transport and septic tank cleaning for municipal sanitation, industrial waste handling and construction sites; can be specified as a combined jetting and vacuum truck.
KEY FEATURES
What this configuration offers
8,000 L with no conflicting value
Basic and detailed fields agree on 8,000 L, with a listed 6 mm wall thickness.
Combined-truck option
Optional high-pressure package with hose reel and clean water tank turns it into a jetting and vacuum combination.
10-ton-class pump with oil-water separator
Listed vacuum pump specification with water-circulation system for strong suction.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- DFAC (Dongfeng) 4x2, 3,970 mm wheelbase, 8.25R20 16PR tyres, 2-3 seats
- Drive
- Diesel, manual, 89 km/h top speed
- Engine
- Yunnei 150 hp listed (about 112 kW); template range prints 150-250 hp
- Overall dimensions
- 7,200 x 2,300 x 3,000 mm (spec table; basic fields show a second, different set)
- Seating capacity
- 2-3 persons (listed)
- Tire specification
- 8.25R20 16PR
Body and tank
- Engine / gearbox
- Yunnei 150 hp listed (about 112 kW); 7-speed manual
- Tank build
- Q235 carbon steel, 6 mm wall (listed), anti-rust treated, anti-corrosion and waterproof coating
- Tank capacity
- 8,000 L (fields agree)
- Tank coating
- Anti-corrosion and waterproof coating (listed)
- Tank material
- Q235 carbon steel, anti-rust treated
- Tank wall thickness
- 6 mm (listed)
Working equipment
- Fittings (listed)
- Anti-overflow valve, pressure gauge, liquid sight glass, working light, warning light
- Vacuum pump
- 10-ton-class pump with oil-water separator (listed)
- Working principle
- Water-circulation vacuum pump system (listed) with manual and electrical control
Operating performance
- Gross vehicle weight / curb weight
- 11,995 kg / 6,450 kg
- Rated payload
- 5,400 kg (detailed spec; GVW minus curb weight is 5,545 kg)
Operating notes
Nominal tank volume is not payload. Plan liquid loads within the 5,400 kg listed payload (5,545 kg GVW minus curb weight) and legal axle loads; dense sludge reduces the litres per legal trip.
Equipment and options
Listed equipment
- Anti-overflow valve
- Pressure gauge
- Liquid sight glass
- Working light
- Warning light
Available choices
- High-pressure cleaning function
- Hose reel
- High-pressure water pump
- Clean water tank
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Material type, daily litres, suction depth, discharge site, need for jetting function.
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm engine model and power, tank effective volume, pump specification and the optional jetting package on the agreed chassis.
Frequently asked questions
Can it work as a jetting truck too?
The listing offers an optional high-pressure cleaning system with hose reel and clean water tank, so it can be specified as a combined jetting and vacuum truck; confirm the package and payload impact in the quotation.
How is the tank built?
Q235 carbon steel with anti-rust treatment, a listed 6 mm wall thickness and anti-corrosion, waterproof coating. A 10-ton-class vacuum pump with oil-water separator is listed.
How much can it carry?
The detailed spec lists a 5,400 kg payload against an 11,995 kg GVW and 6,450 kg curb weight (GVW minus curb weight is 5,545 kg). The basic field value of 12 t contradicts these and was excluded.
What engine is listed?
The detailed spec names a Yunnei 150 hp engine (about 112 kW) with a 7-speed manual gearbox. Confirm the exact engine model in the quotation.
What tank capacity does it have?
The source lists 8,000 L consistently across its basic tank fields and the detailed tank specification - no conflicting second value on this listing.
