VEHICLE OVERVIEW

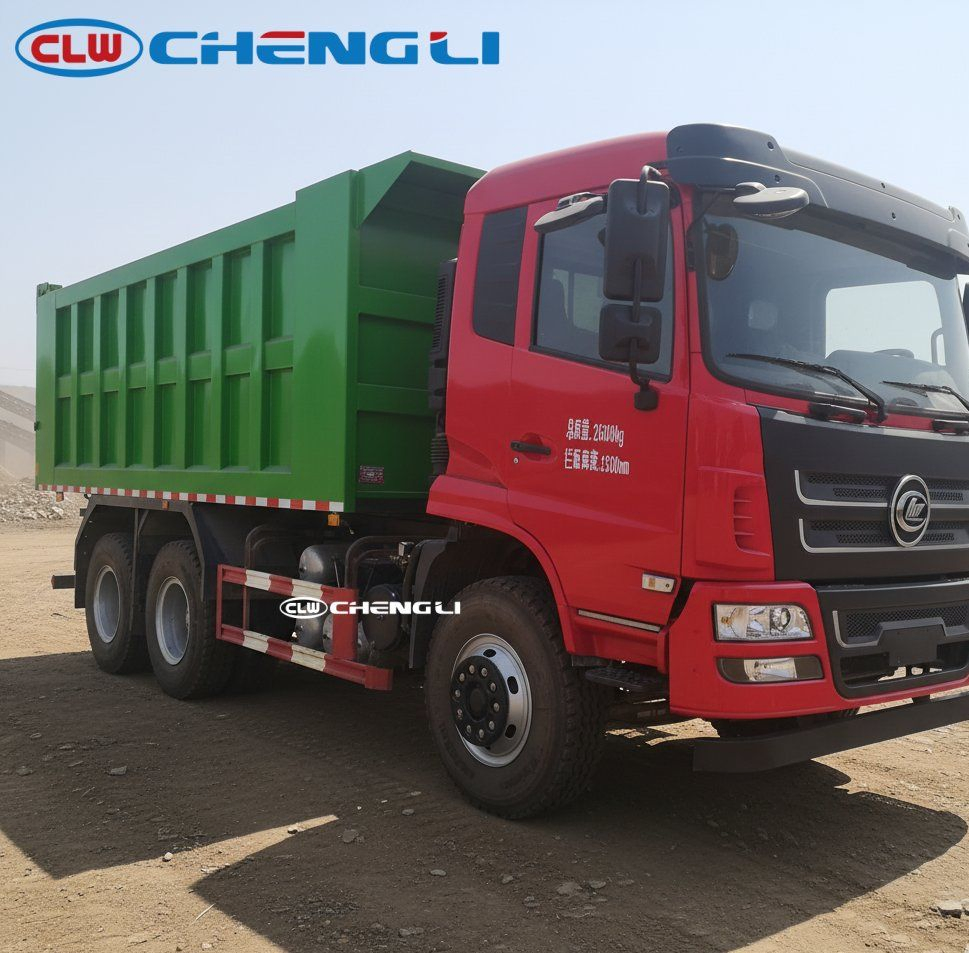

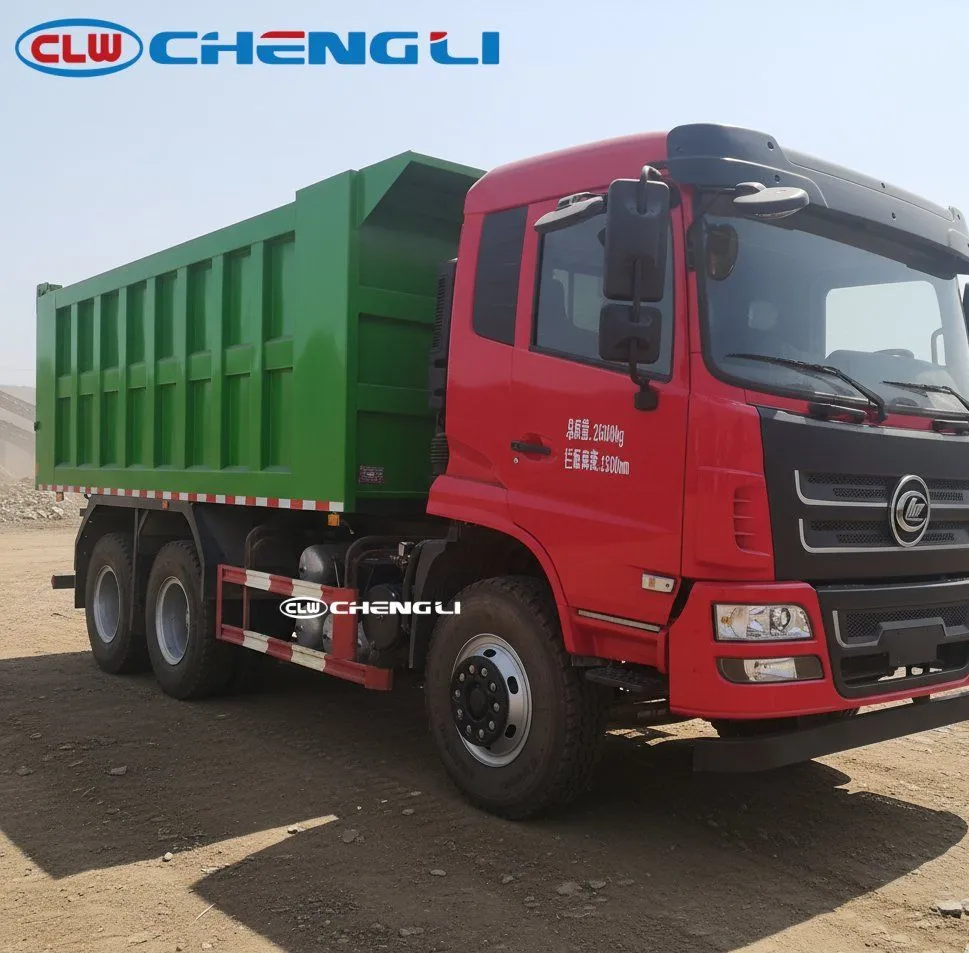

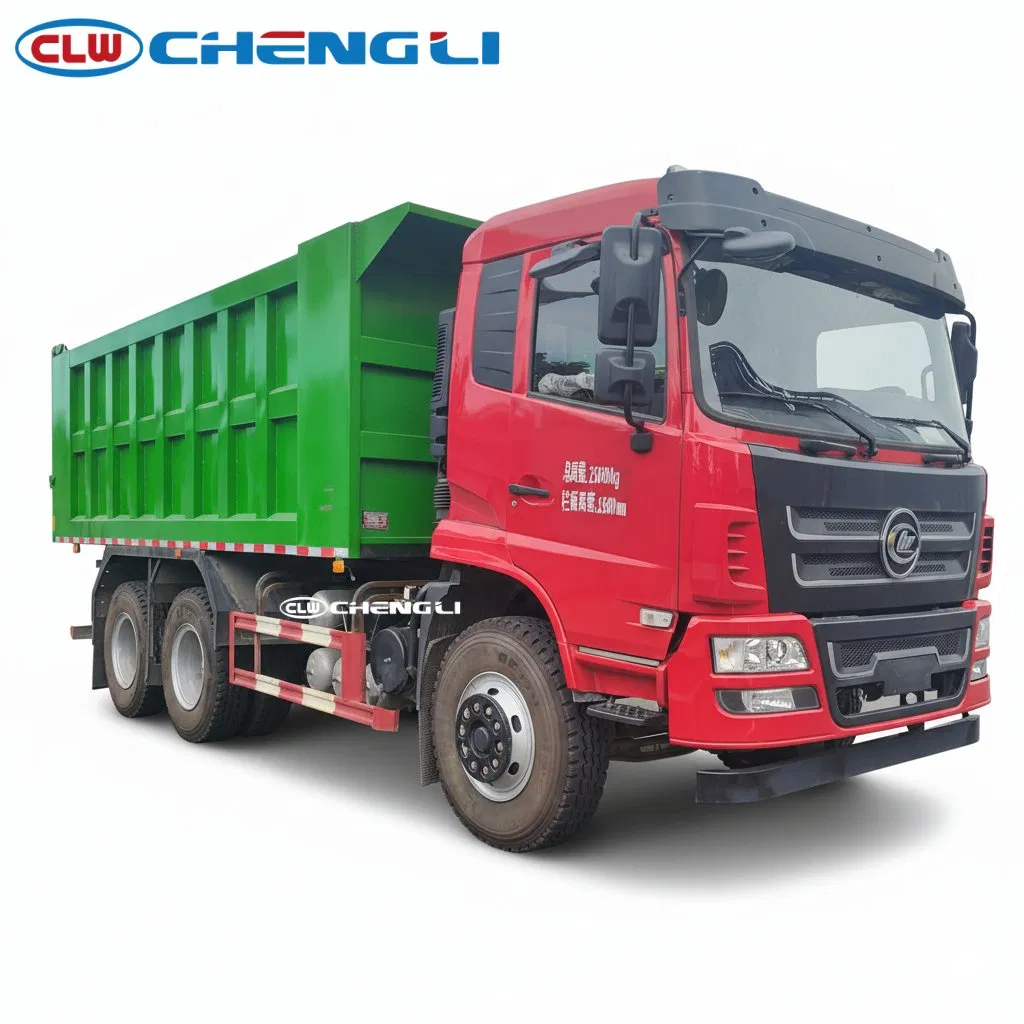

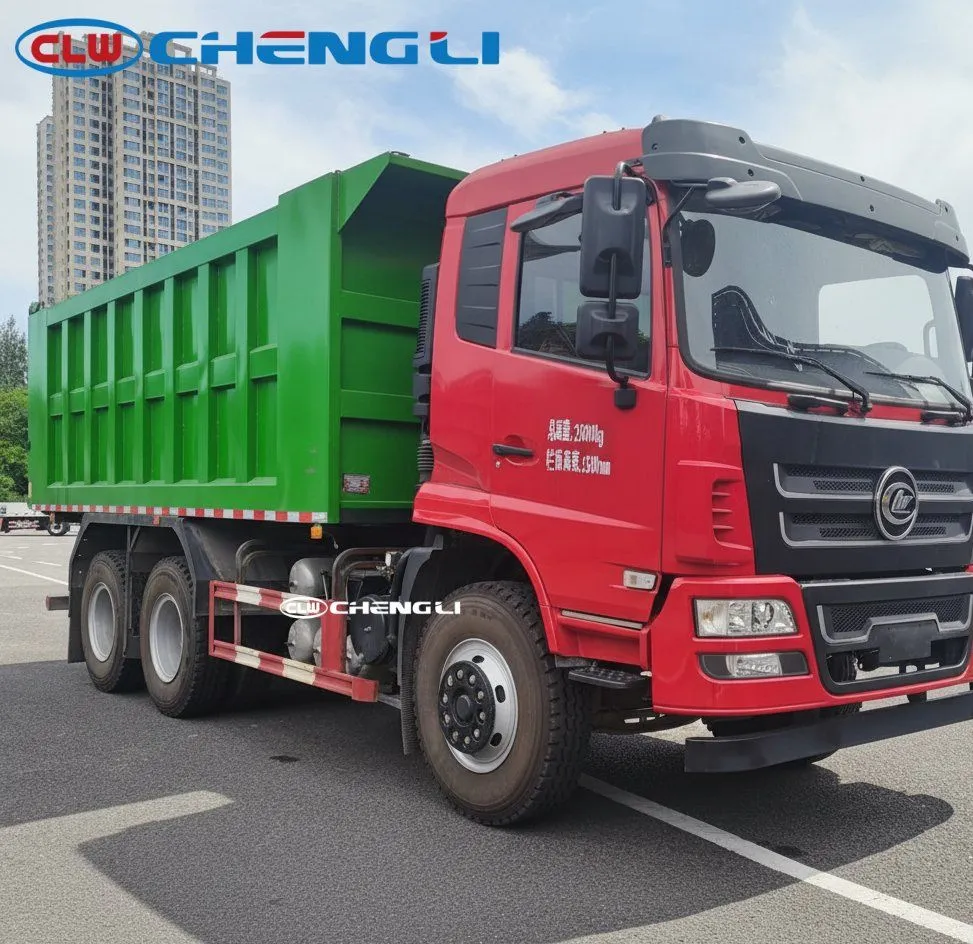

The CLW 6x4 mining tipper is built for blasted rock, ore, coal and aggregate: a tandem-drive chassis with an 18,000 kg double rear axle, the 7.7 L YCK08350-60 at 350 hp through a FAST 12-speed gearbox, and a 15,320 kg payload with body steel, plate thickness and discharge direction all set to the customer material.
Typical applications: Blasted rock, ore, coal and aggregate haulage in mines and quarries.
KEY FEATURES
What this configuration offers
Body built to material
Steel grade and plate thickness matched to rock, ore or coal.
18 t tandem rear axle
Traction and load capacity for hard mine duty.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- 7,000 kg front / 18,000 kg double rear axle (tandem drive)
- Engine
- YCK08350-60, 350 hp, 7,698 ml (listed)
- Overall dimensions
- 8,200 x 2,550 x 3,450 mm (basic) / 7,200 mm length (spec) - confirm
- Suspension
- 9-leaf front / 13-leaf rear springs (listed)
- Transmission
- FAST 12-speed (listed)
- Tyres
- 12R22.5 18PR
- Wheelbase
- 4,150 + 1,350 mm
Body and tank

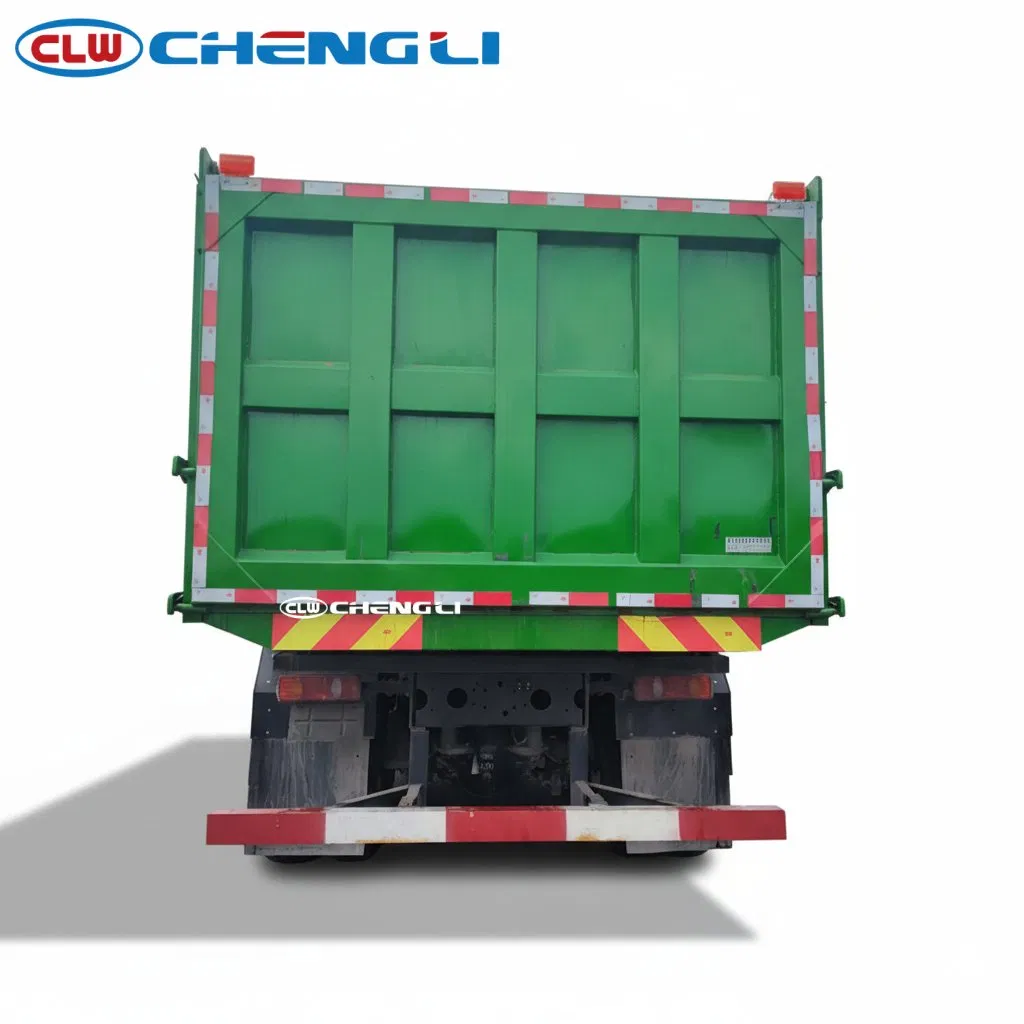

- Body
- 5,200 x 2,400 x 1,500 mm, 180 mm front cylinder
- Body plates
- Bottom 100 / side 80 mm values, customizable (listed)
- Custom
- Steel, plate thickness, cylinder position, discharge direction
Operating performance
- Fuel consumption
- about 35 L/100 km (quoted)
- GVW / curb weight / payload
- 25,000 kg / 9,550 kg / 15,320 kg
- Max speed
- 90 km/h (listed); LHD or RHD; optional sleeper bunk
Safety
- Brakes
- Ruili (listed)
- Seats
- Air-bagged (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Material type and density, route gradients, loads per day
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How much can it carry?
15,320 kg payload on a 25,000 kg GVW with an 18,000 kg tandem rear axle.
What duty is it for?
Blasted rock, ore, coal and construction aggregate on mine and quarry routes that need tandem drive.
What engine?
The YCK08350-60 at 350 hp from 7,698 ml with a FAST 12-speed gearbox.
What is customized?
Body steel, floor and side plate thickness, hydraulic cylinder position and unloading direction are set to your material and site layout.
