VEHICLE OVERVIEW

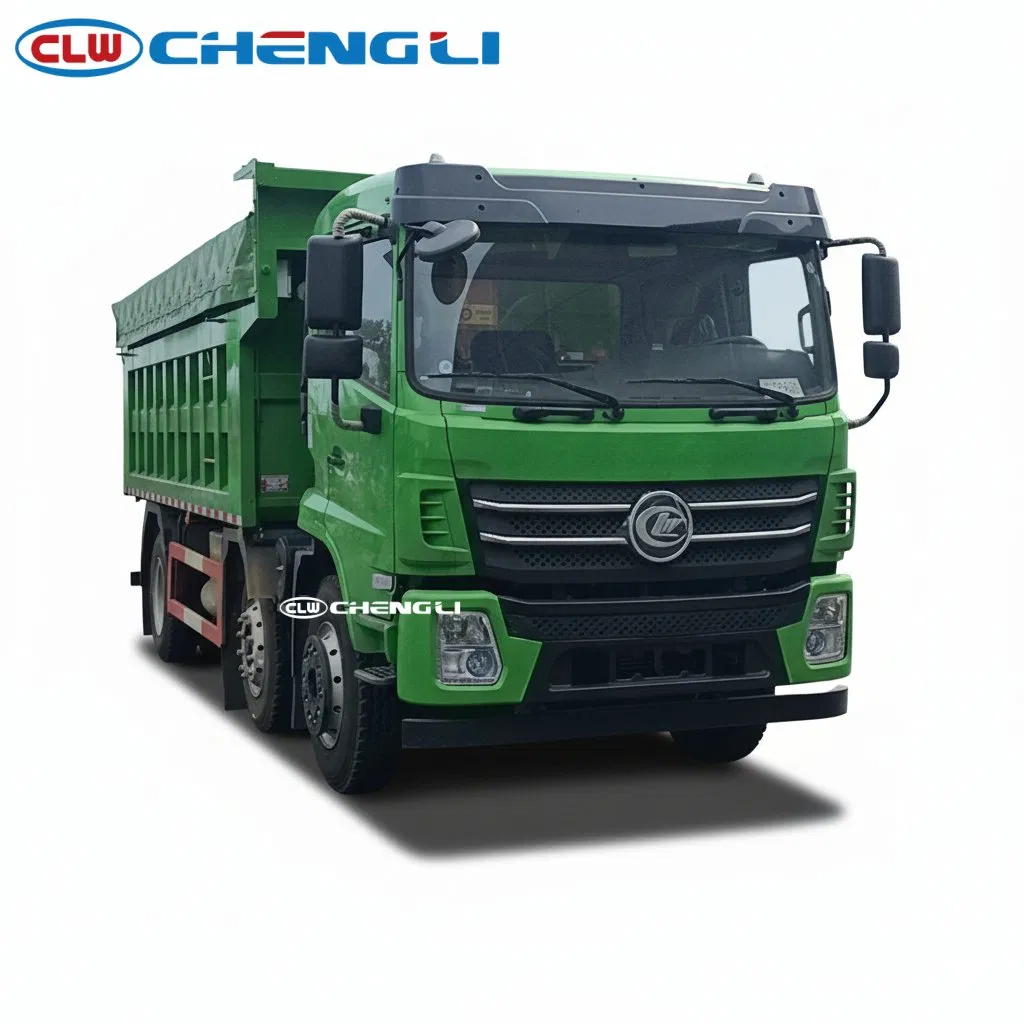

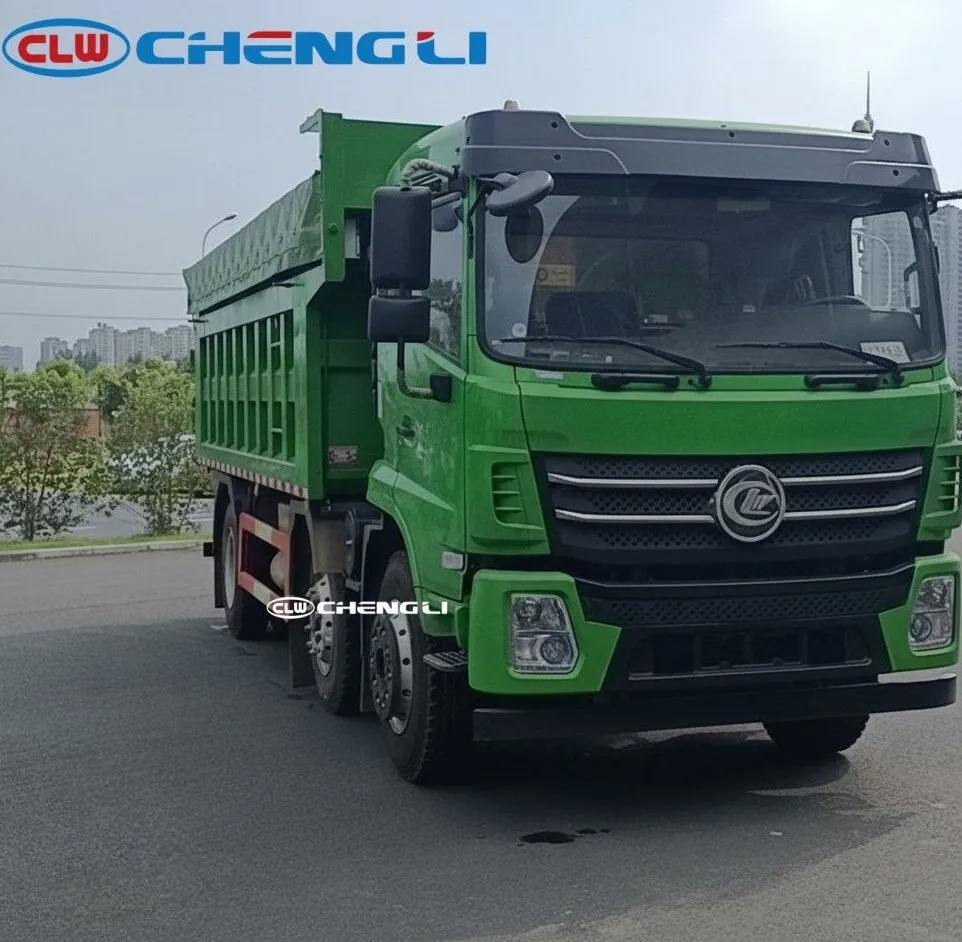

The CLW 6x2 tipper trades a tandem drive for a long load platform: two front axles and one driven rear axle give a 10.4 m body length for coal, soil and demolition debris, with a 13,490 kg payload on a 25-tonne GVW and the 245 hp YCS06245-60 engine.

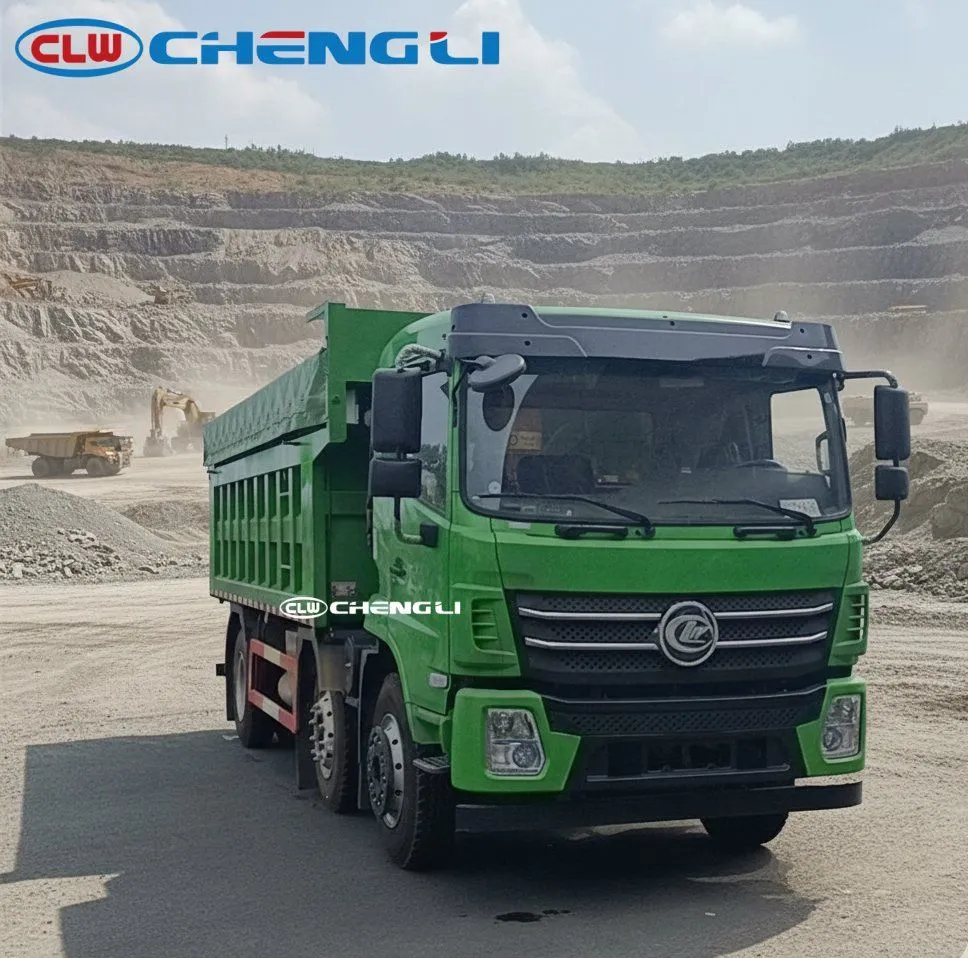

Typical applications: Coal, soil and demolition debris on longer mine-to-site routes.
KEY FEATURES
What this configuration offers
6x2 running cost
One driven axle instead of two on long-haul bulk work.
10.4 m platform
Low-density bulk fills volume before hitting weight limits.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- 7,000 kg front / 11,000 kg rear; 3 axles, 8 wheels
- Engine
- YCS06245-60, 245 hp, 6,234 ml (listed)
- Overall dimensions
- 10,400 x 2,550 x 3,200 mm
- Suspension
- 9-leaf front / 7-leaf rear (listed)
- Transmission
- FAST 12-speed (listed)
- Tyres
- 12R22.5 18PR
- Wheelbase
- 1,850 + 4,900 mm
Body and tank
- Body
- 6,000 x 2,400 x 1,500 mm per spec table (basic field prints 7,600 x 2,400 x 1,500 mm - confirm final size), 21,600 L capacity field

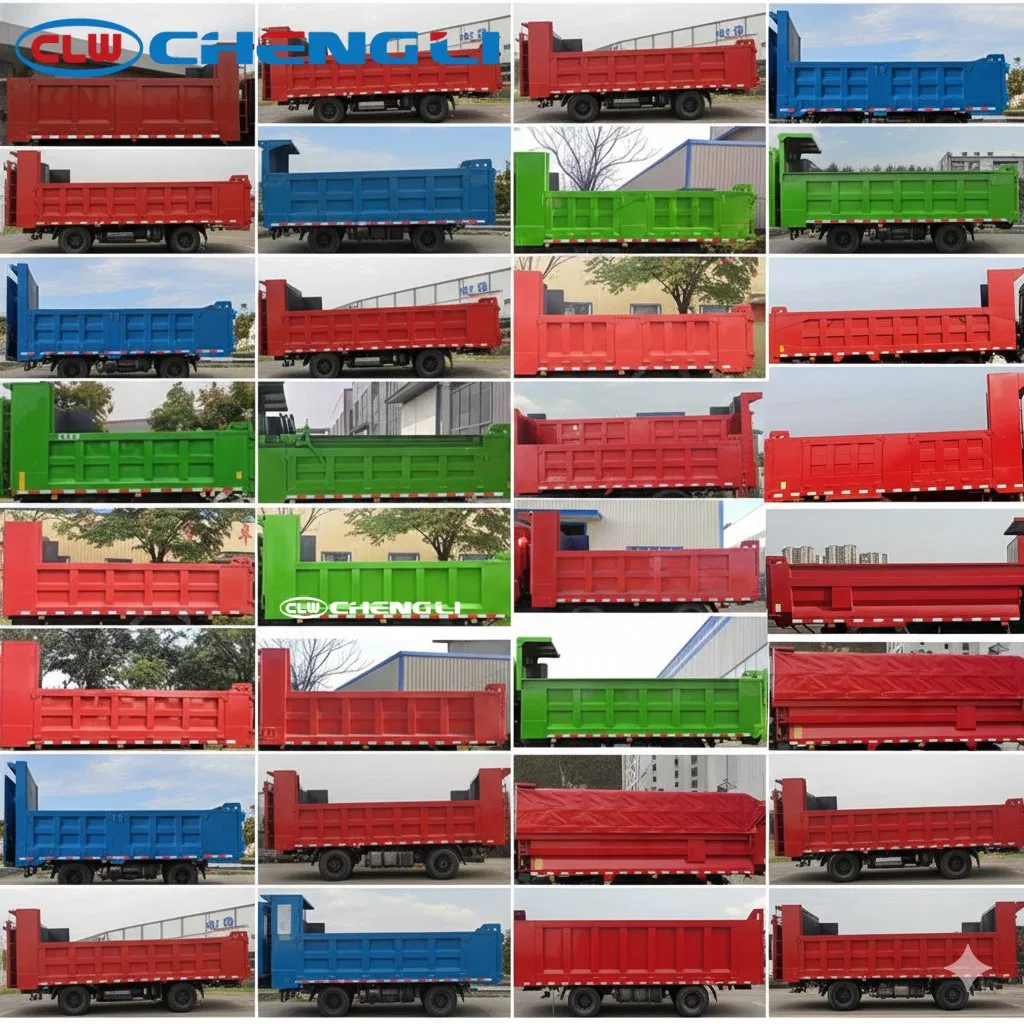

- Body sizes
- 6,000 or 7,600 mm lengths listed (conflict); customized
Working equipment
- Lifting
- Front hydraulic cylinder, 180 mm; side or rear discharge (customized)
Operating performance
- Fuel consumption
- 35.0 L/100 km (quoted)
- GVW / curb weight / payload
- 25,000 kg / 11,380 kg / 13,490 kg (12,000-15,000 kg rating band)
- Max speed
- 90 km/h (listed); LHD or RHD
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Material density, body length needed, route distance
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How much can it carry?
A 13,490 kg stated payload within a 12,000-15,000 kg rating band on a 25,000 kg GVW.
What body sizes are available?
The source prints two body sizes (6,000 and 7,600 mm lengths); plate thickness, cylinder size and discharge direction are customized to order.
What is the fuel economy?
35.0 L/100 km is quoted.
Why choose 6x2?
Two steering axles and one driven rear axle give a long, well-distributed load platform at lower cost than a tandem-drive 6x4 - right for low-density bulk like coal, soil and debris.
