VEHICLE OVERVIEW

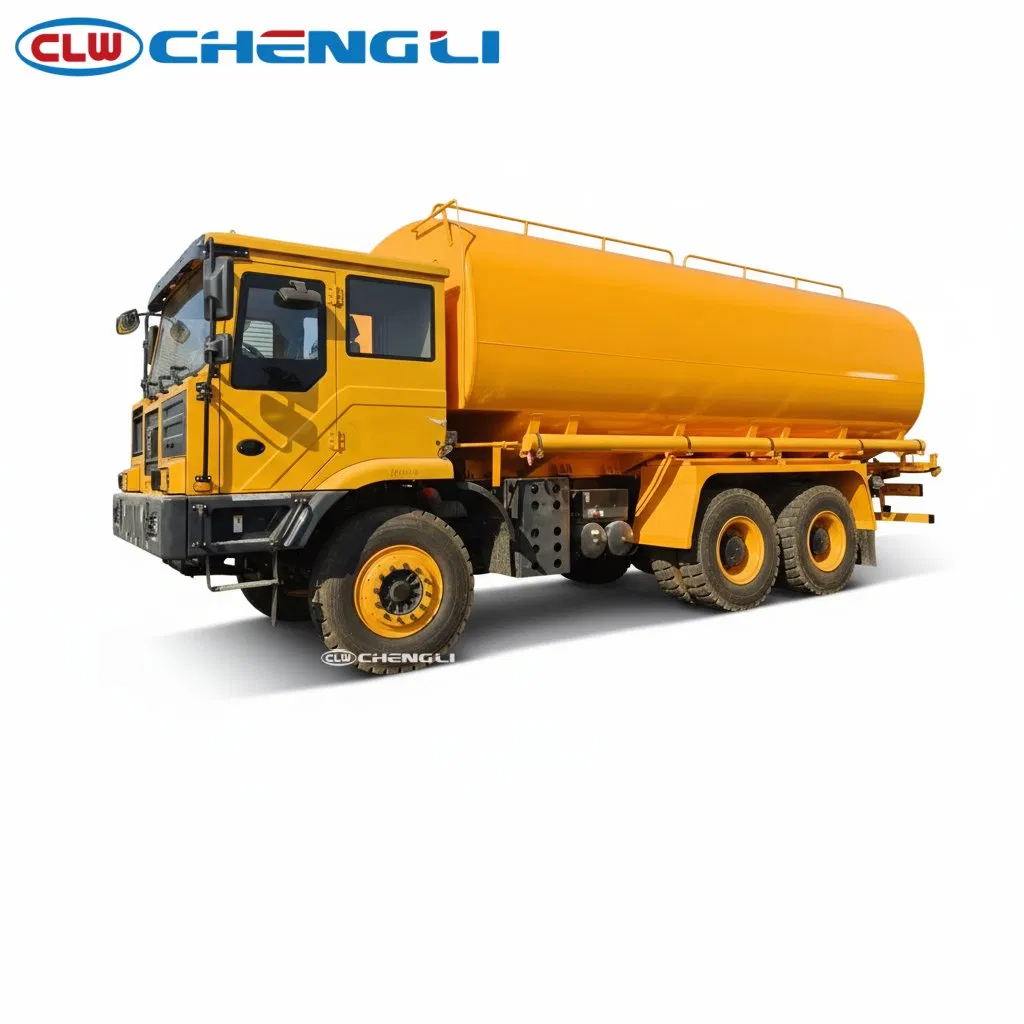

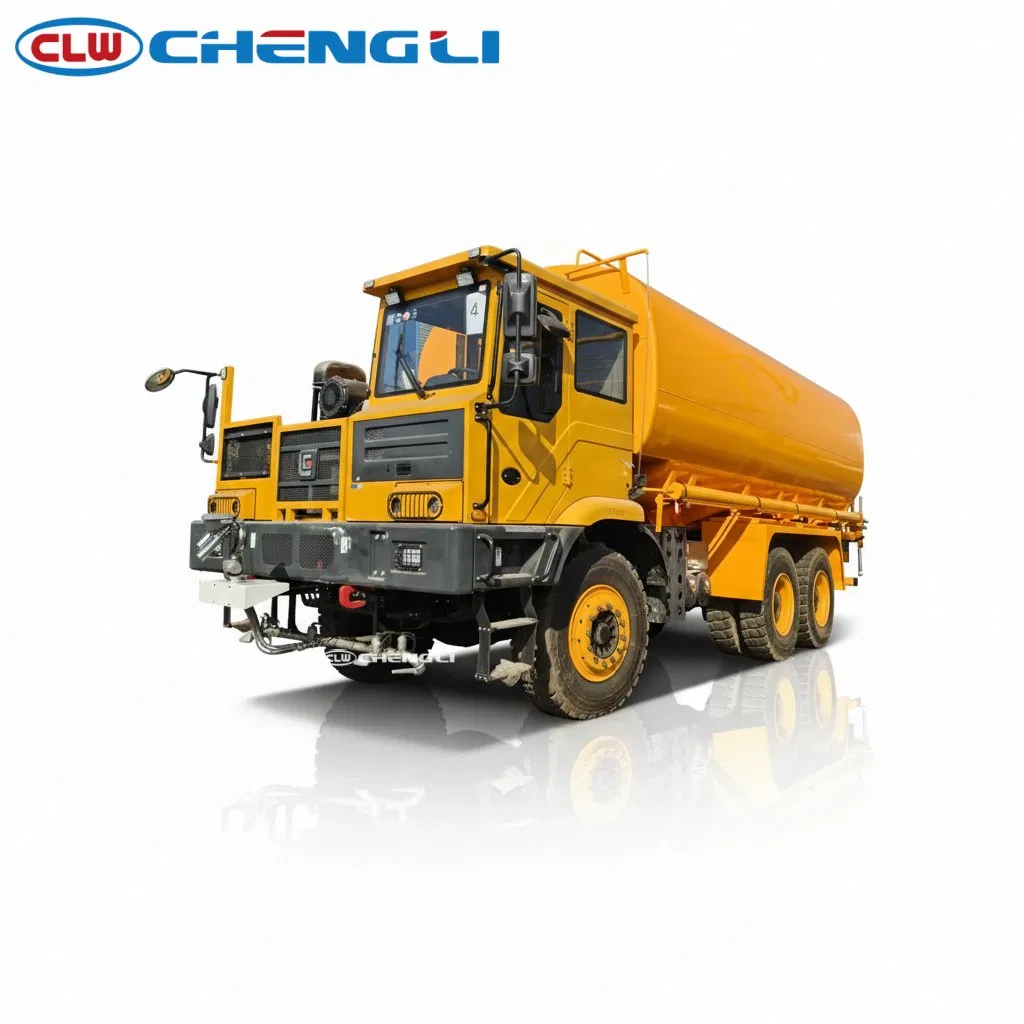

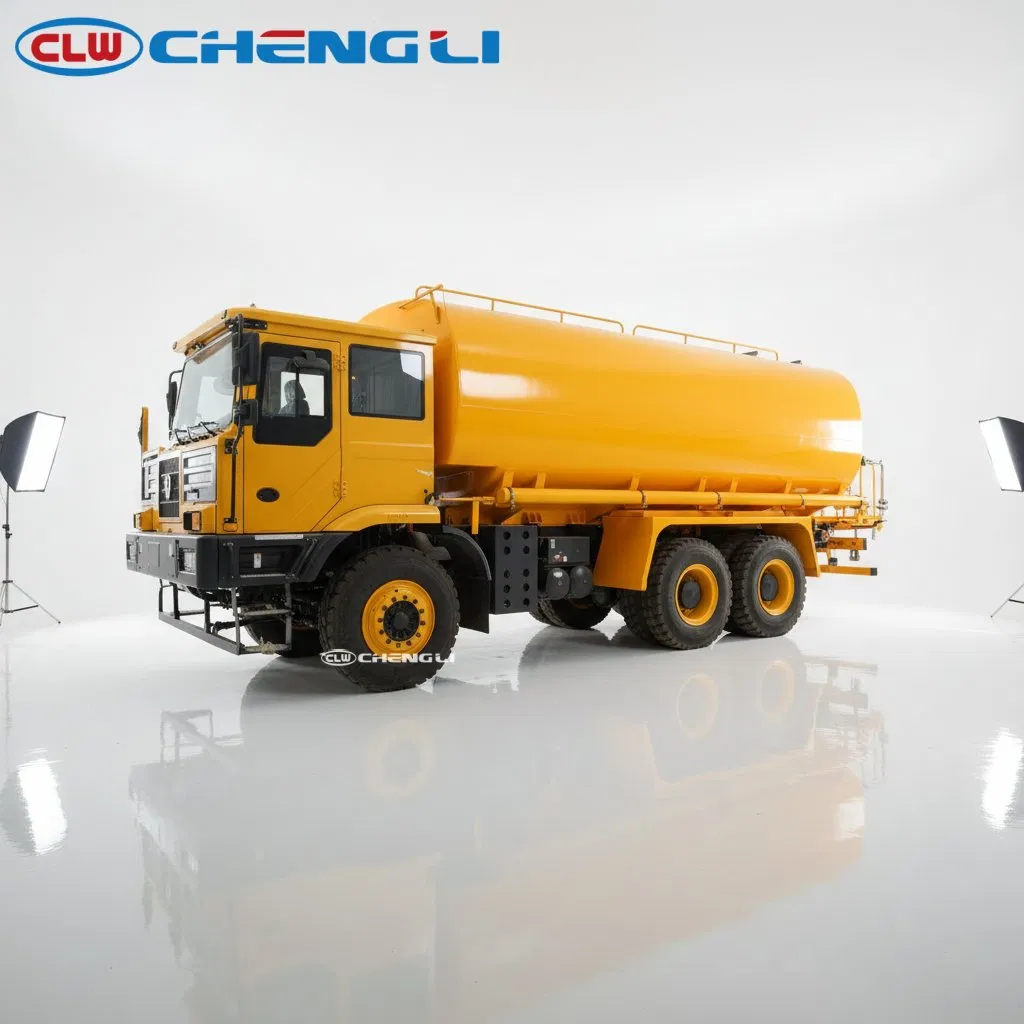

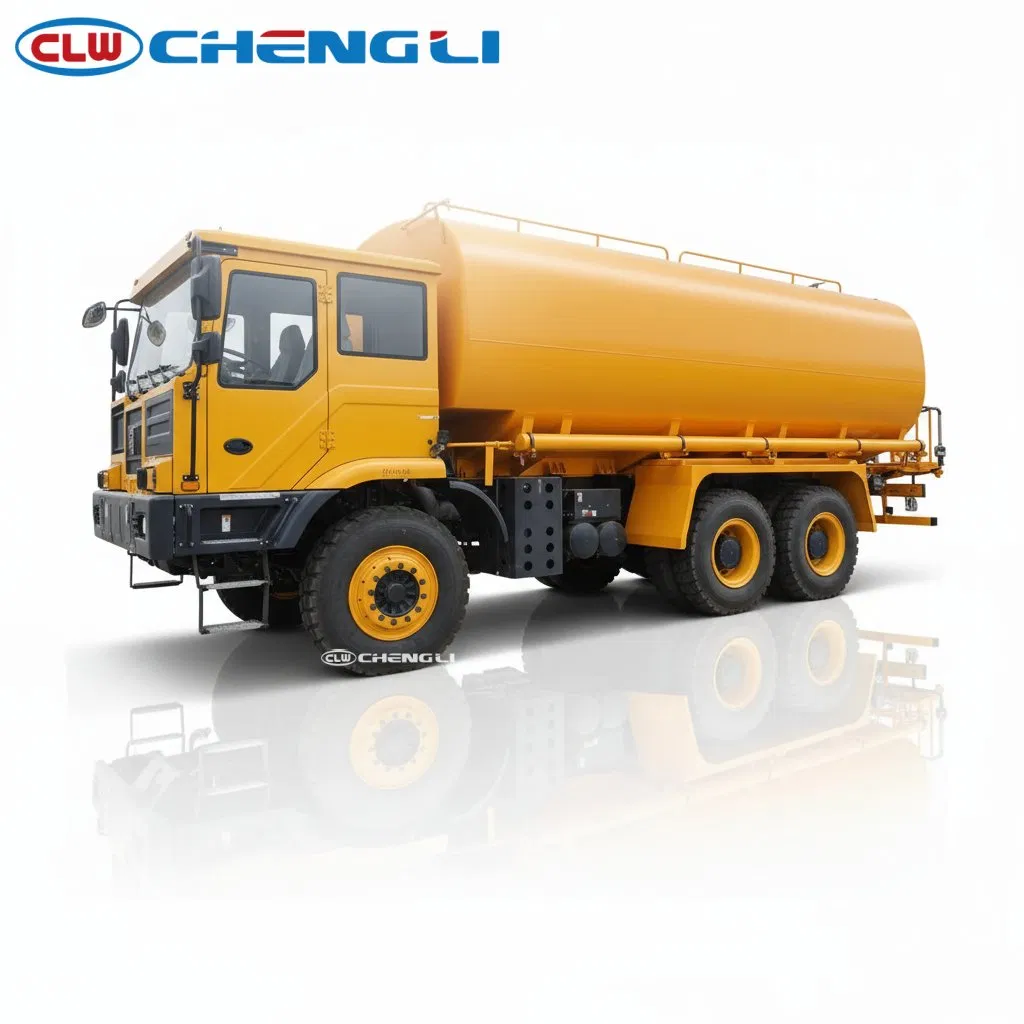

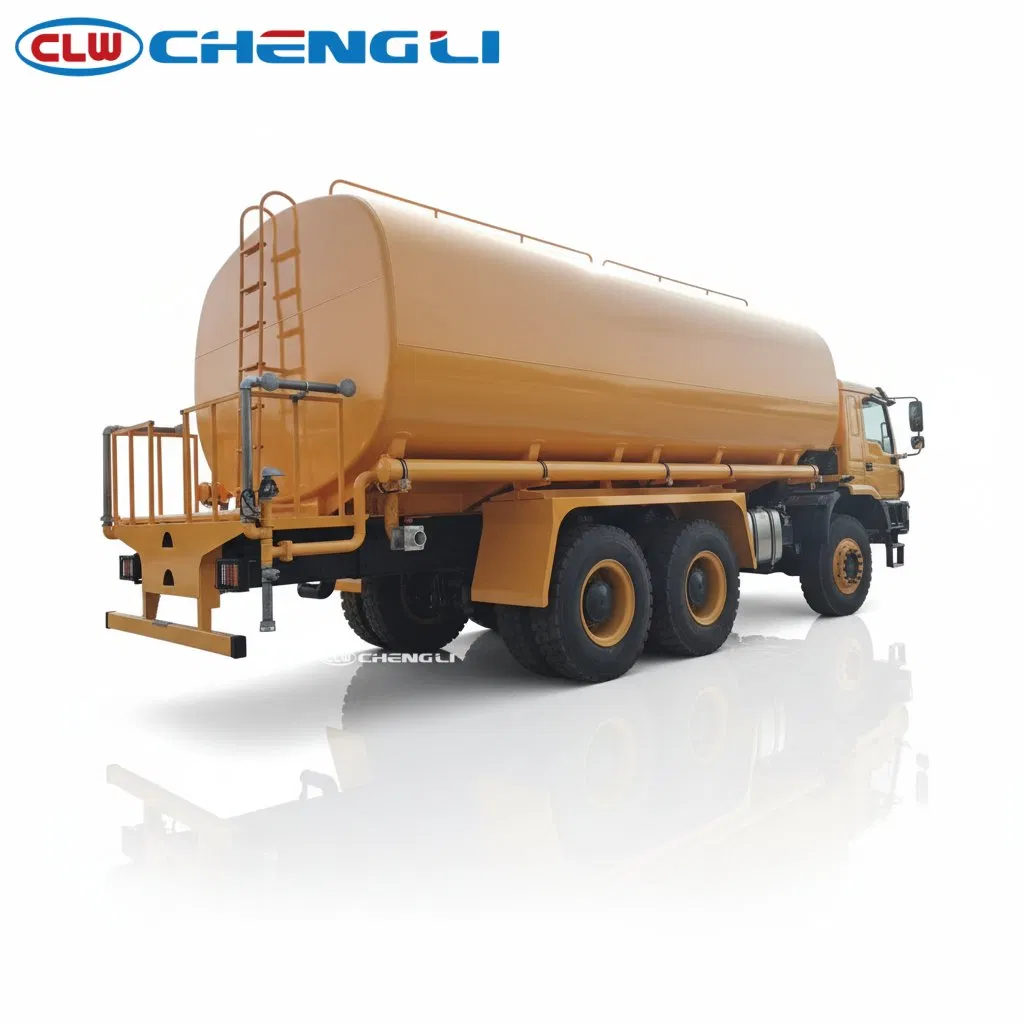

The CLW 50-ton mine water truck keeps open-pit haul roads wet and air clear around loading faces, crushers and waste dumps: a 50,000-litre Q355 high-strength steel tank on a DW90A 6x6 wide-body chassis with 480 hp, ten 14.00R25 tyres and a self-priming BX-80QZB60/90S pump.
Typical applications: Open-pit haul road watering, dust control at faces, crushers and dumps.
KEY FEATURES
What this configuration offers
DW90A 6x6 wide body
Purpose-built off-road chassis with 14.00R25 tyres and 45 km/h site speed.
8 mm Q355 throughout
Walls, heads and partitions all 8 mm for mine duty.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Chassis
- DW90A wide-body 6x6, wheelbase 3,950+1,350 mm
- Dimensions
- 9,075 x 3,450 x 4,300 mm
- Engine
- YC6K.480, 480 hp / 353 kW, 2,200 Nm (listed)
- Secondary beams
- 8 mm Q358B (listed)
- Transmission
- 8DS240 eight-speed (listed)
- Tyres
- 10 x 14.00R25
Body and tank
- Beams
- 8 mm Q358B secondary
- Partitions
- 8 mm fully welded
- Tank
- 50,000 L Q355 steel, 8 mm throughout
Working equipment
- Curb weight / loading capacity
- 31,000 kg / 59,000 kg (listed)
- Optional fittings
- Electronic cannon, electronic valves, duckbill nozzle, rear spray, side sprays (listed)
- Outlets
- 2.5-inch side outlet and 5-inch gravity outlet
- Pump
- BX-80QZB60/90S self-priming (listed)
- Standard
- Iron cannon, front counter-jet, firefighting interface
- Standard fittings
- Iron water cannon, front counter-jet, firefighting interface, aluminium alloy valves (listed)
Operating performance
- Max speed
- 45 km/h (listed); ABS and cab to mine field standard
Equipment and options
Available choices
- Electronic cannon
- Electronic valves
- Duckbill nozzle
- Rear spray
- Side sprays
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Haul road length and climate, watering cycles per shift, water source
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it fight fires?
A firefighting interface is listed as standard.
How does it fill and discharge?
Self-priming and self-draining through a BX-80QZB60/90S pump, 2.5-inch pipework, a right-side 2.5-inch outlet and a 5-inch gravity outlet at the tank tail.
What is this truck for?
Wetting haul roads and suppressing dust at open-pit loading faces, crushers and waste dumps, where road-going sprinklers cannot cope.
What power does it have?
A YC6K.480 engine at 480 hp (353 kW) and 2,200 Nm through an 8DS240 eight-speed gearbox.
