VEHICLE OVERVIEW

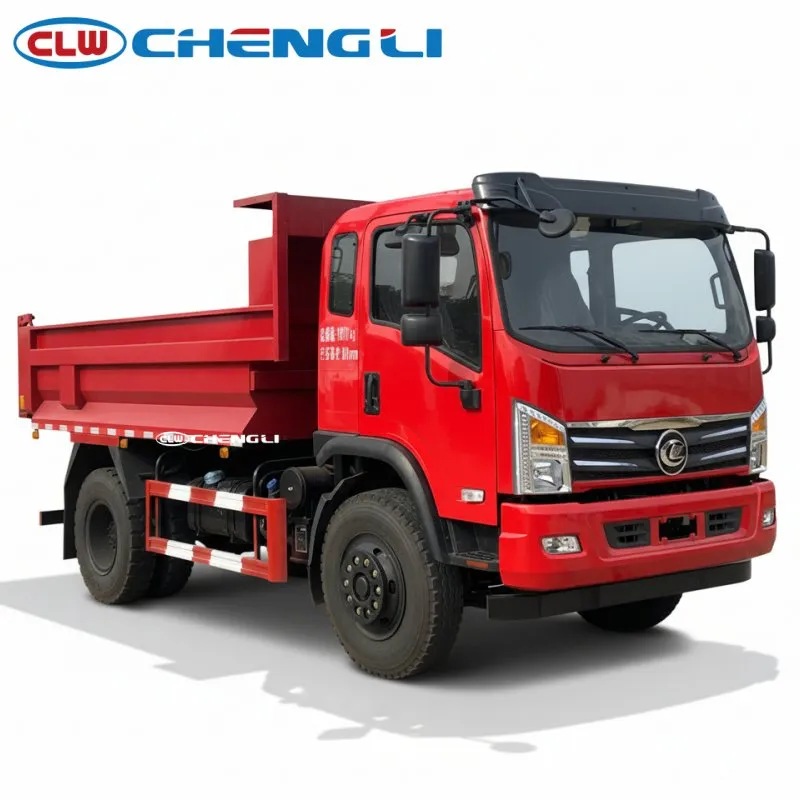

The CLW 4x2 six-wheel tipper is the fuel-conscious entry to mine and construction haulage: a 10,152-litre body on an 18-tonne chassis with the 4.2 L YCS04200-68 diesel at 200 hp, a FAST 12-speed gearbox and quoted consumption of 28.01 L/100 km.

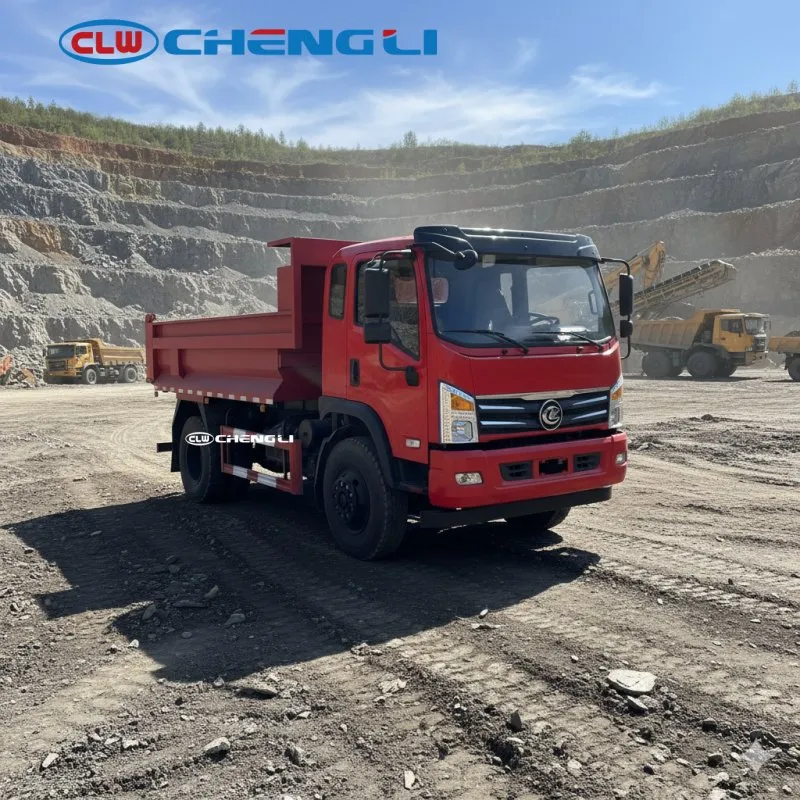

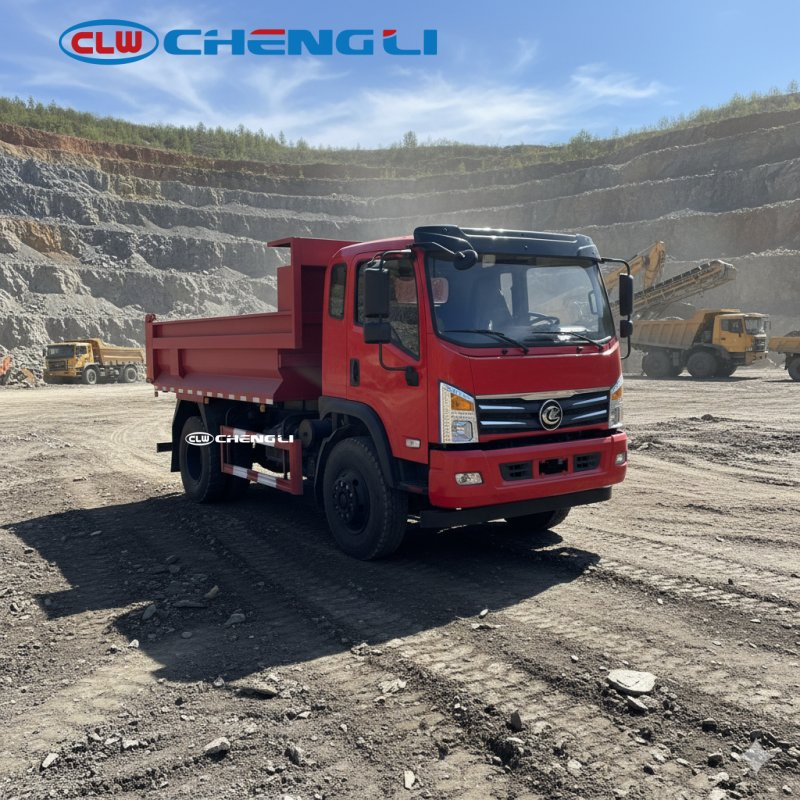

Typical applications: Small mines, sand pits and town construction haulage.
KEY FEATURES
What this configuration offers
28 L/100 km quoted
The lighter 200 hp build keeps running cost down.
FAST 12-speed
Wide ratio spread for loaded climbs and road legs.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- 6,500 kg front / 11,500 kg rear
- Engine
- YCS04200-68, 200 hp, 4,156 ml (listed)
- Overall dimensions
- 7,900 x 2,550 x 3,050 mm
- Suspension
- 10-leaf front / 11-leaf rear springs; four-point cab suspension (listed)
- Transmission
- FAST 12-speed (listed)
- Tyres
- 10.00R20 18PR, 6 wheels
- Wheelbase
- 4,500 mm
Body and tank

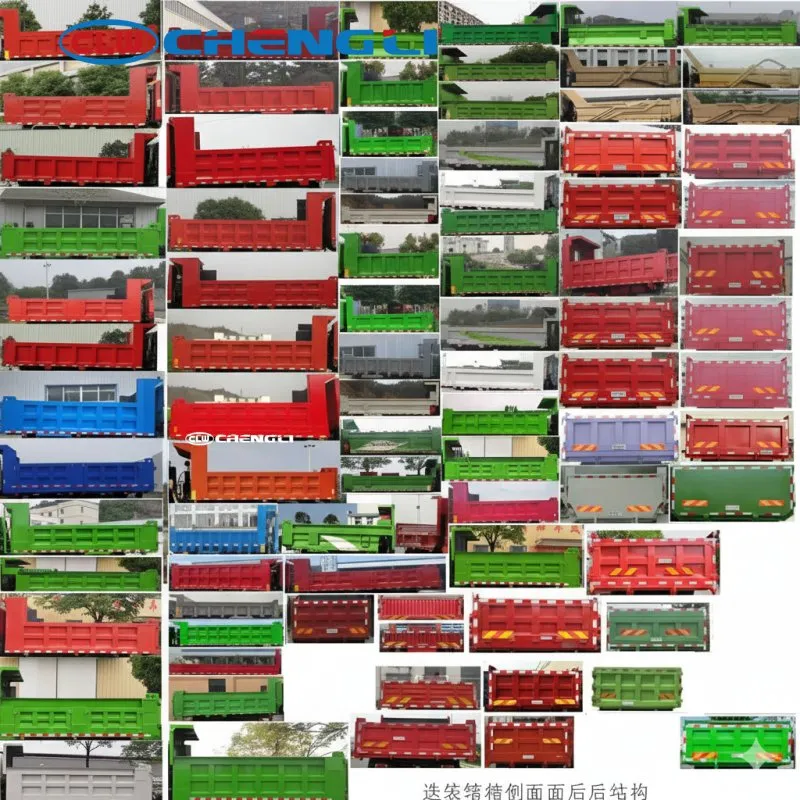

- Body
- 5,400 x 2,350 x 800 mm, front-lift 180 mm cylinder
- Body plates
- Bottom 100 mm / side 80 mm listed values (customizable)

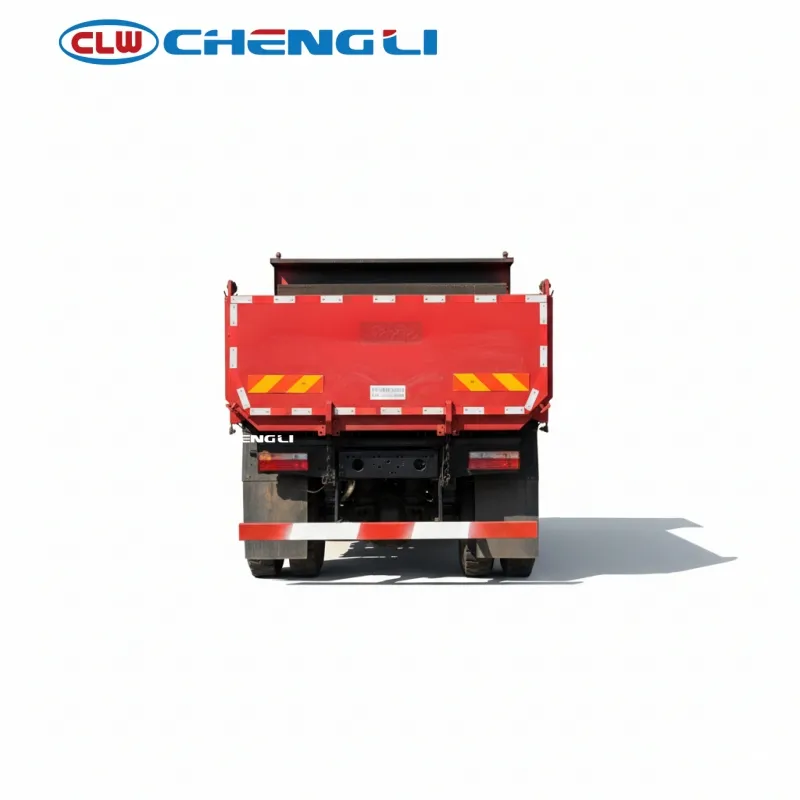

- Discharge
- Side or rear (customized)
- Plates
- Bottom 100 / side 80 mm (customizable values)
Operating performance
- Fuel consumption
- 28.01 L/100 km (quoted)
- GVW / curb weight / payload
- 18,000 kg / 6,800 kg / 11,070 kg
- Max speed
- 89 km/h (listed); LHD or RHD
Safety
- Safety belts
- Yes (listed)
- Seats
- Air-bagged (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Material type and density, loads per day, haul distance and gradient
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
How does it unload?
A front-lift 180 mm hydraulic cylinder raises the body; side or rear discharge arrangements are available.
Left or right hand drive?
Both are listed; confirm your market requirement.
What is the fuel economy?
28.01 L/100 km is quoted - the reason this 200 hp model exists next to the 245 hp version.
What material can it haul?
Sand, gravel, soil and demolition debris on town and small-mine routes; body steel and plate thickness are customized to the material.
