VEHICLE OVERVIEW

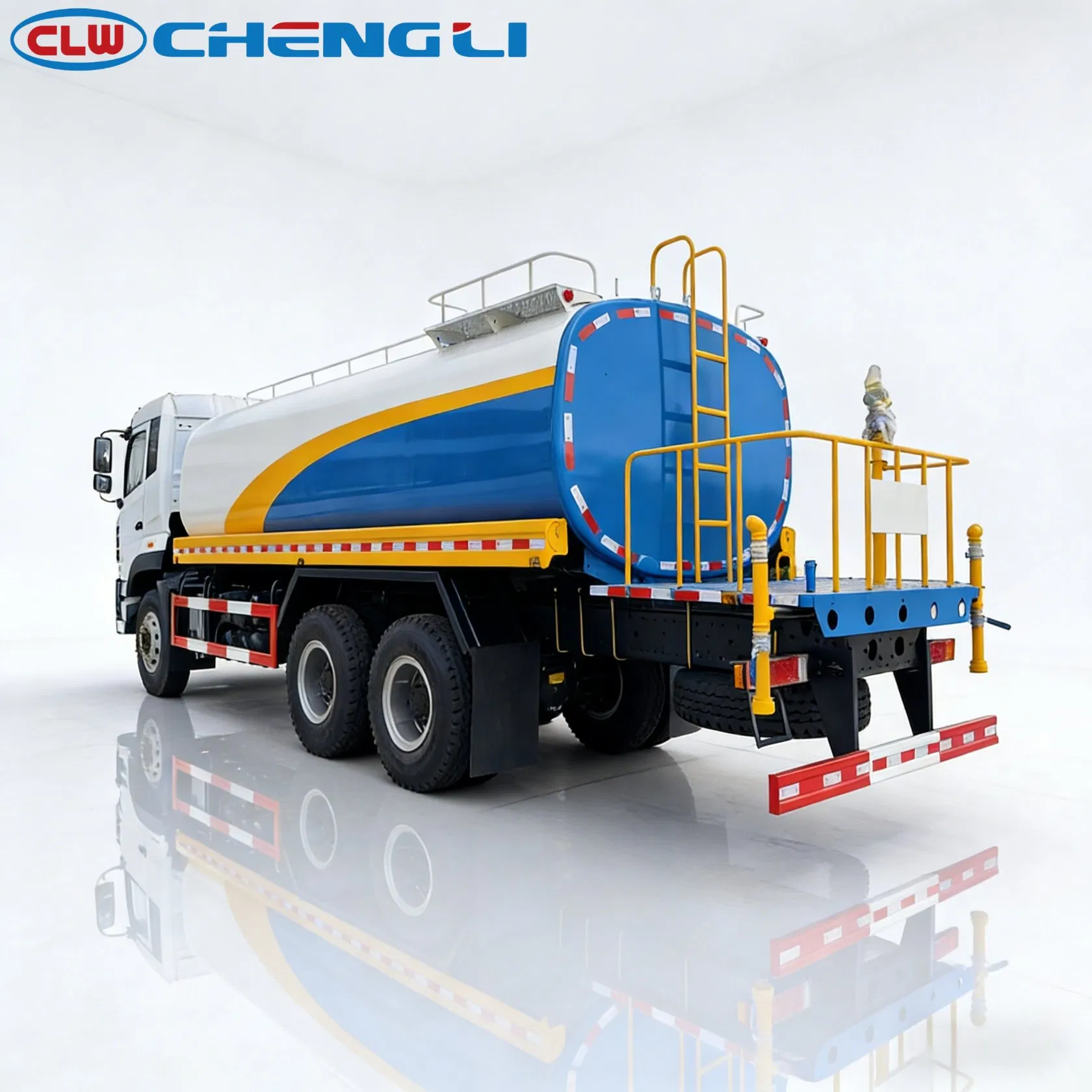

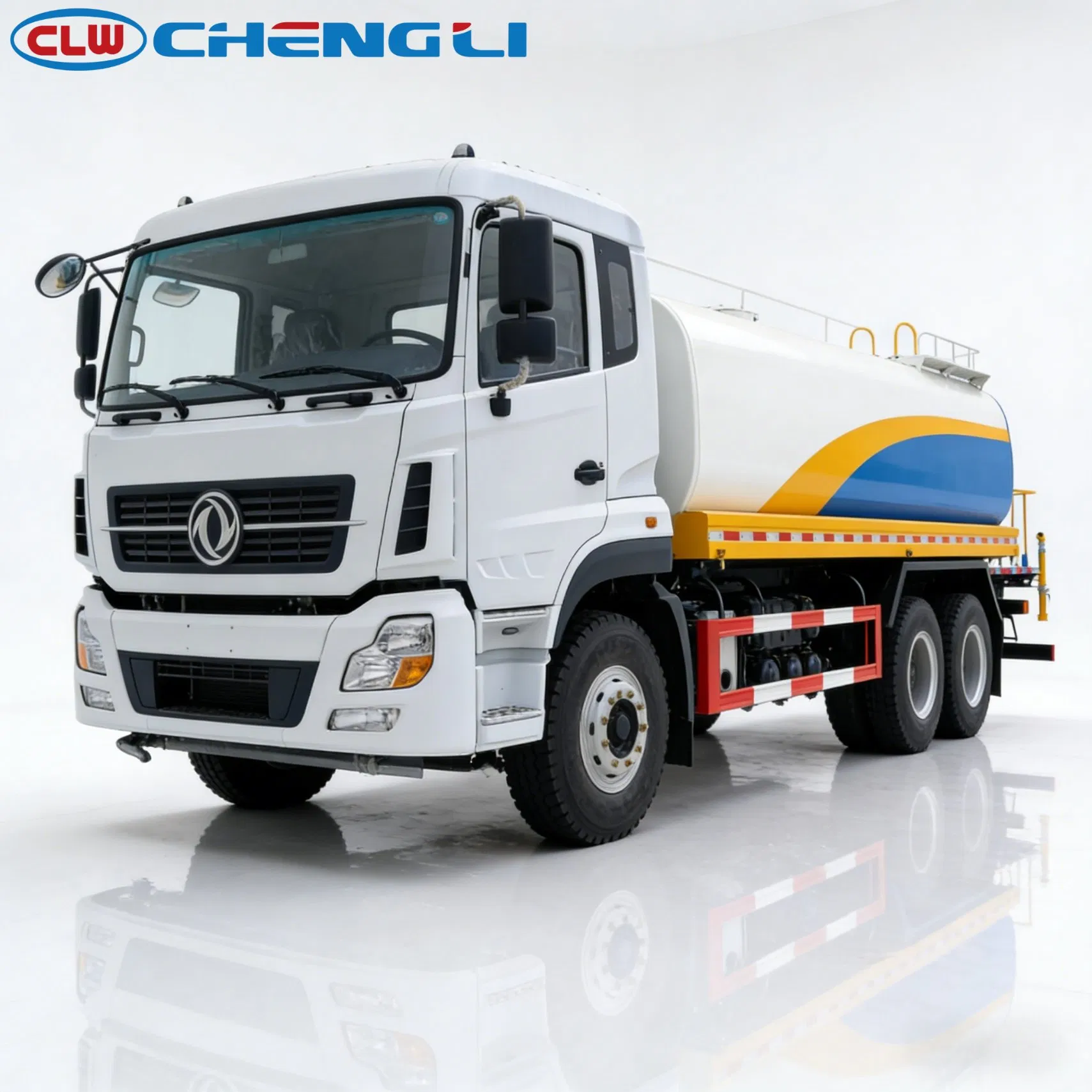

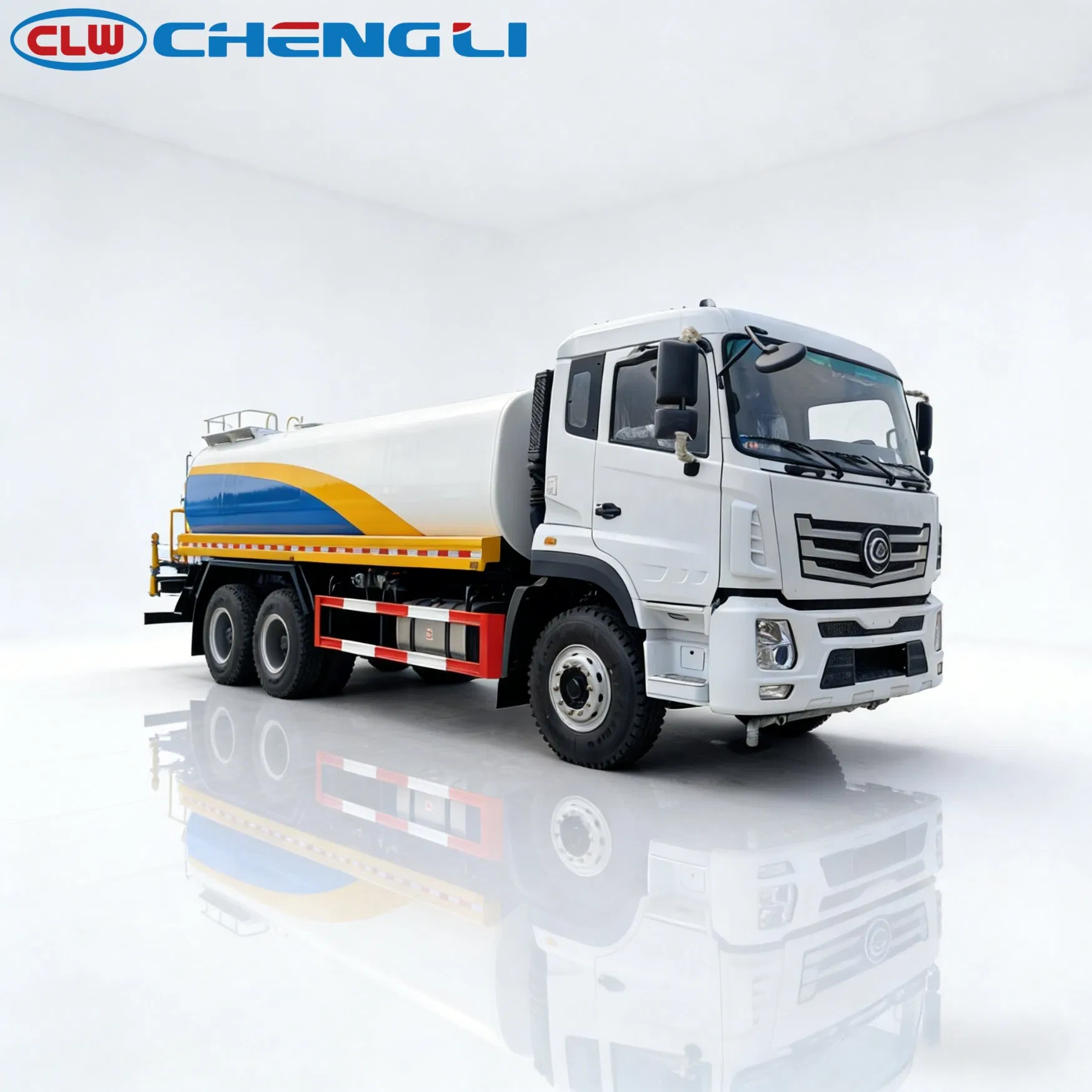

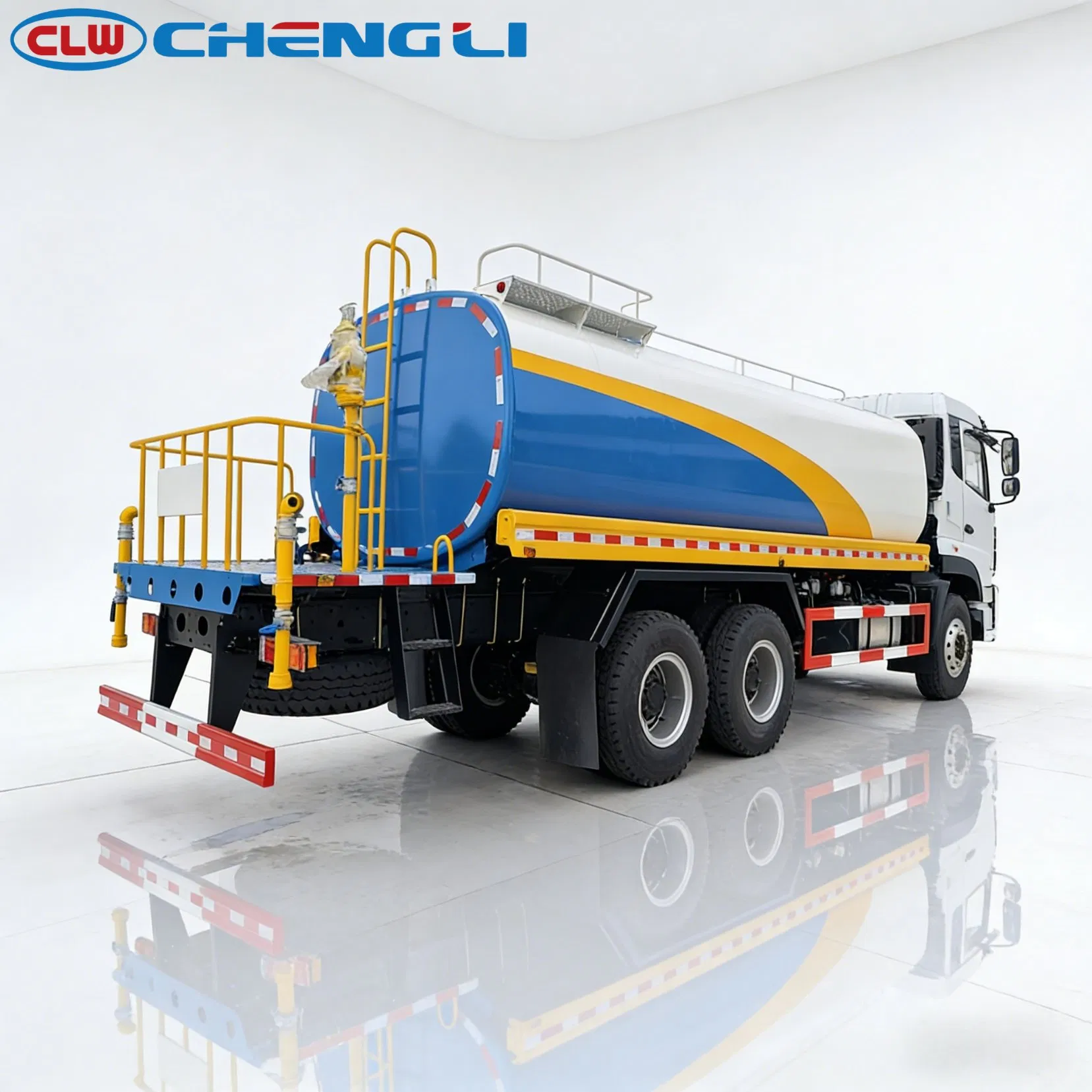

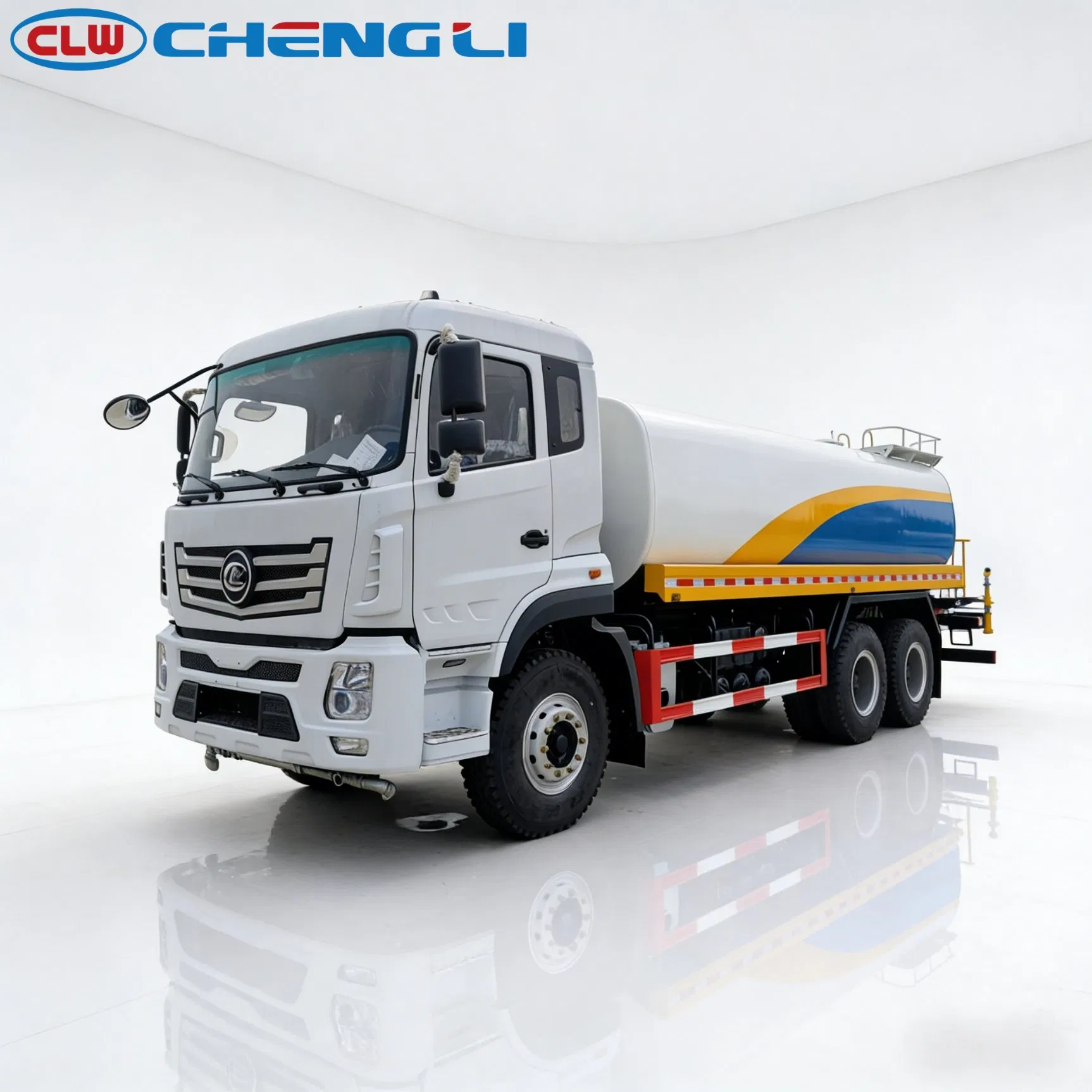

The CLW 20 cbm potable water tanker hauls drinking water in a 304 stainless steel tank with food-grade finish available: a 20,000-litre vessel on a 25-tonne chassis with a 304 stainless 60/90 pump and bilateral water cannons, for waterworks deliveries, emergency supply and communities without piped water.
Typical applications: Potable water delivery for waterworks, emergencies, compounds and remote communities.
KEY FEATURES
What this configuration offers
20,000 L per trip
Fewer trips for bulk drinking-water runs.
Stainless wetted path
Tank and pump in 304 stainless so water quality is preserved.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- 5,000 kg front / 10,000 kg rear (listed)
- Cab
- Reversible 1,880 mm cab, 2-3 seats, knitted fabric (listed)
- Chassis
- CL5290TQ96ZQ, wheelbase 4,530+1,350 mm
- Engine
- YC6A270-50 diesel, 245 hp (listed)
- Overall dimensions
- 10,275 x 2,550 x 3,330 mm
- Transmission
- 10JS120A manual (listed)
- Tyres
- 12R22.5 18PR
Body and tank
- Plate
- 5.0 mm nominal / 4.5 mm actual
- Plate thickness
- 5.0 mm nominal / 4.5 mm actual (listed)
- Supports
- 3 reinforced bending plates, 3 mm
- Tank
- 20,000 L 304 stainless, food-grade finish available
Working equipment
- Cannons
- Bilateral iron, electrophoretic treatment
- Pump
- 304 stainless 60/90 (listed)
Operating performance
- GVW / curb weight
- 25,000 kg / 9,680 kg
Safety
- ABS
- 4S/4M (listed)
- Braking
- ABS 4S/4M (listed)
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Daily litres, delivery points, hygiene/certificate needs
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it spray as well as deliver?
Bilateral water cannons with electrophoretic treatment are listed, so the truck can double as a spraying unit.
How much does it deliver per trip?
The tank holds 20,000 litres; payload capacity follows from the 25,000 kg GVW minus the 9,680 kg curb weight - about 15 tonnes of water density load.
Is the tank really food-grade?
The tank is 304 stainless steel with a food-grade finish available as an option; the pump is also 304 stainless. Confirm the food-grade option and certificates in the quotation.
What is it for?
Waterworks deliveries, emergency drinking-water supply, residential compounds and remote communities without piped supply.
