VEHICLE OVERVIEW

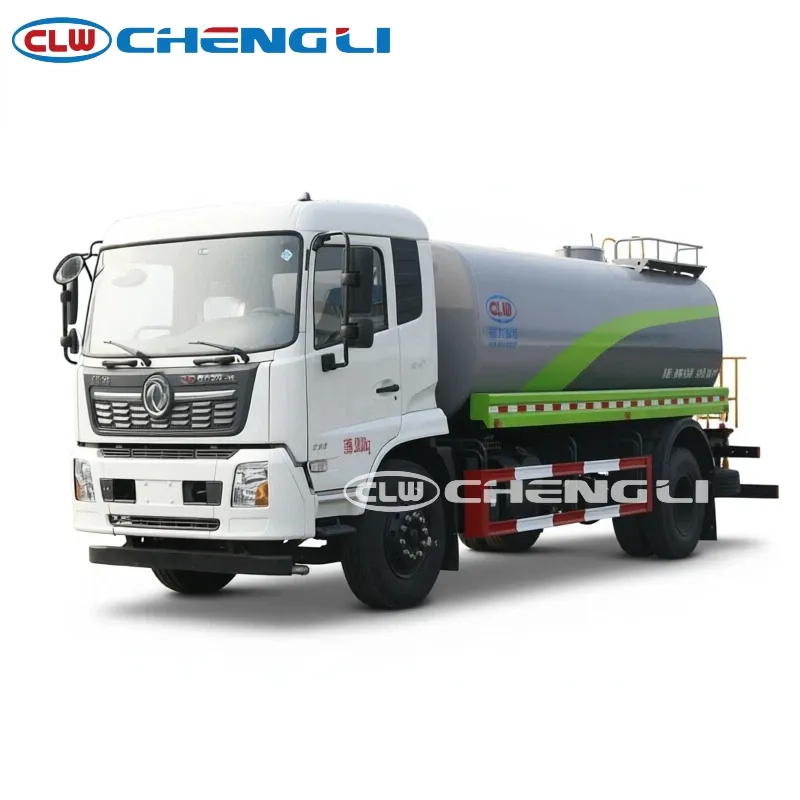

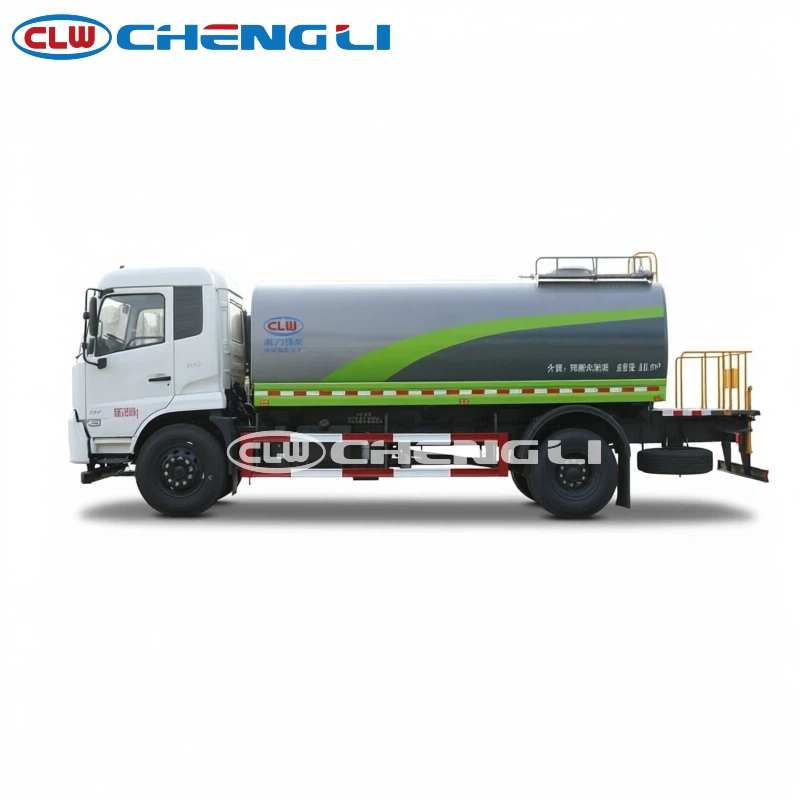

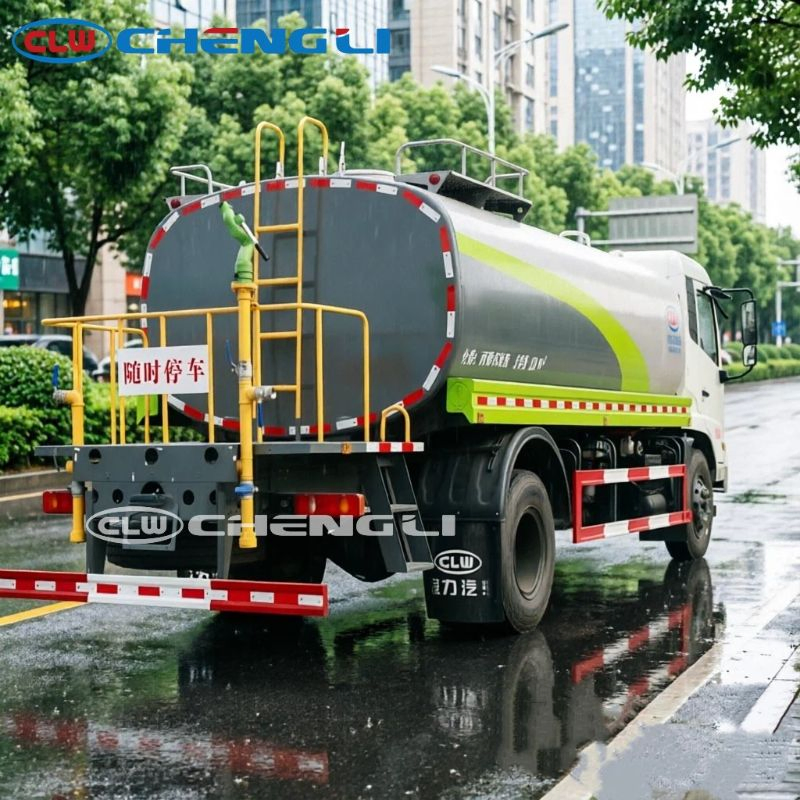

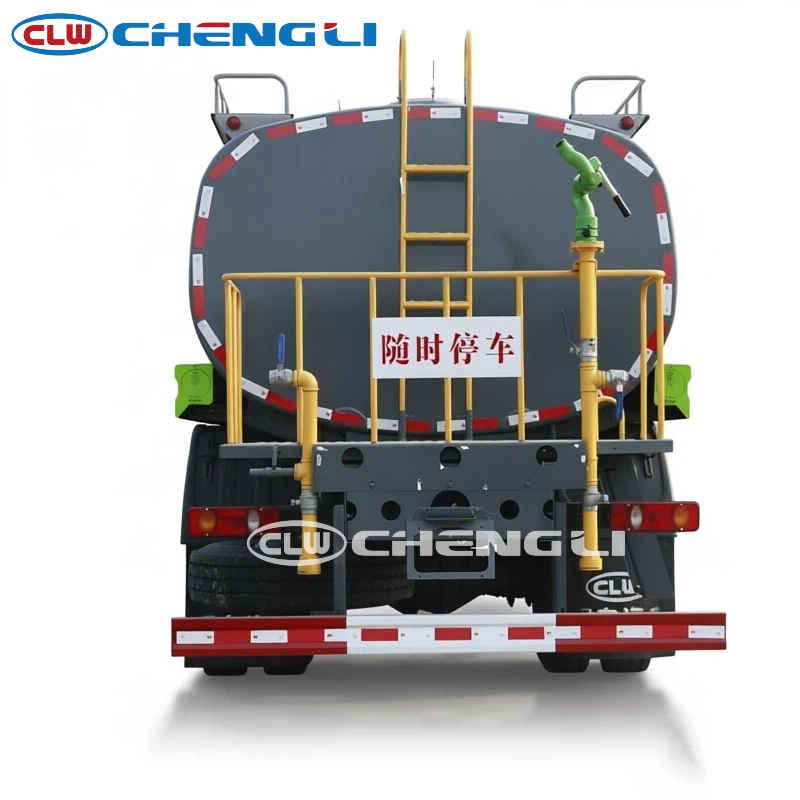

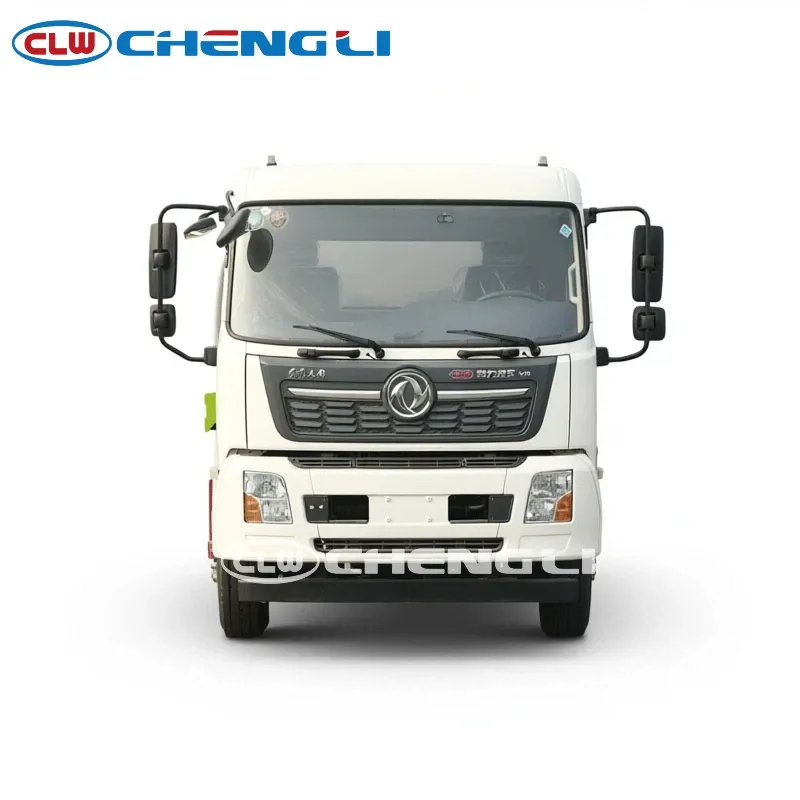

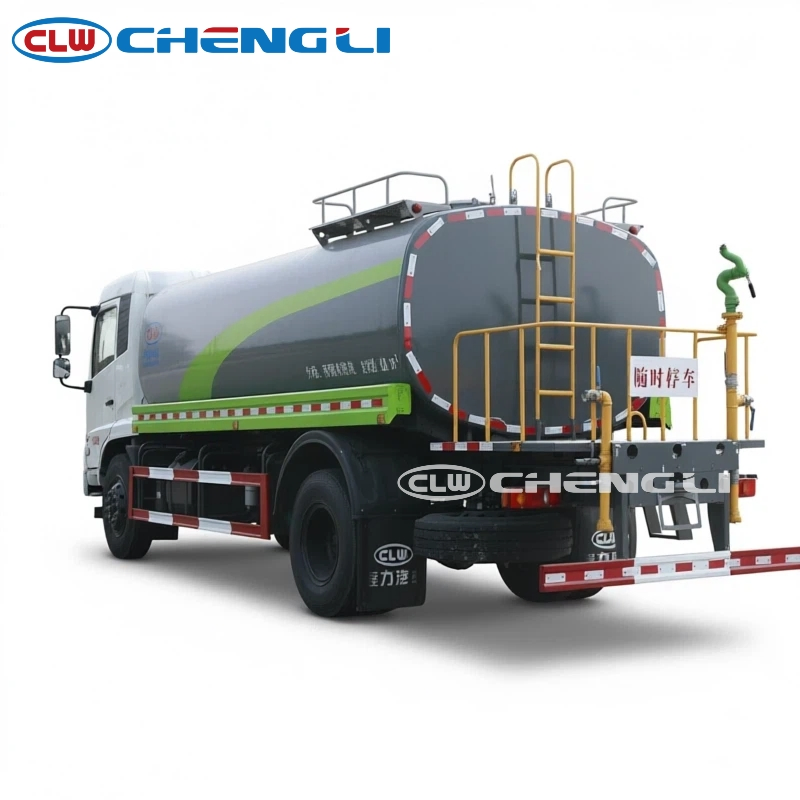

The Chengli 16 cbm road sprinkler is a full municipal-class washing truck: a 16,000-litre Q235 tank with 4 mm walls, 5 mm heads and 3 mm baffles, a 16 m plus spraying width, a 30 m plus S-type water cannon adjustable from jet to mist, and 6 m plus self-priming suction for filling from rivers and ponds.
Typical applications: Municipal road cleaning, greening irrigation and dust suppression.
KEY FEATURES
What this configuration offers
Complete spray set (listed)
Front, rear and side spray plus a 30 m jet-to-mist cannon and fire hose connection.
6 m self-priming
Fills directly from rivers and ponds through a strainer.
TECHNICAL DETAILS
Specifications by system
Values shown are for the listed configuration. Confirm the final chassis, payload and equipment before ordering.
Chassis and dimensions
- Axles
- Front 4.5 t / rear 10 t (DF416 casting, listed)
- Chassis
- Dongfeng-class 4x2, 4,700 mm wheelbase, frame 250x80x7+4 mm
- Engine options
- Longqing 260 hp / Cummins-class 230 hp / Cummins-class 260 hp (options listed)
- Overall dimensions
- 8,820 x 2,550 x 3,250 mm
- Standard equipment
- Front sprinkler, rear spray, side spray, high-pressure water gun, self-priming, fire hose connection, strainer (listed)
- Transmission
- DT08950 or 8JS95E-C (listed)
- Tyres
- 10.00R20 18PR
Body and tank
- Cannon
- S-type, 30 m or more, jet-to-mist
- Plates
- 4 mm wall / 5 mm head / 3 mm partition (listed)
- Tank
- 16 cbm Q235 carbon steel
Working equipment
- Spraying width
- 16 m or more (listed)
- Standard set
- Front sprinkler, rear spray, side spray, water gun, fire hose connection
- Suction
- Self-priming 6 m or more with strainer
- Water cannon
- S-type high-pressure cannon, 30 m or more range, adjustable jet to mist (listed)
Operating performance
- GVW / curb weight
- 18,000 kg / 7,705 kg
What to confirm for your quote
- Delivery
- Quantity, destination country and port, steering side.
- Operating brief
- Road network size, daily water volume, cannon and flushing needs
Final quotation checks
- Commercial scope
- Confirm chassis availability, emission option, delivery basis, inspection and spare-parts list in the quotation.
- Technical scope
- Confirm the exact chassis, body or tank build, working equipment and rated loads on the agreed configuration.
Frequently asked questions
Can it fill from a river?
Yes - self-priming suction of 6 m or more with a strainer is listed, so it can draw directly from rivers and ponds.
Can it help with fires?
A fire hose connection is listed as standard, supporting emergency assistance duty.
How is the tank built?
Q235 carbon steel with 4 mm walls, 5 mm heads and 3 mm partitions for anti-slosh strength.
What can it do in one pass?
Front sprinkler, rear spray and side spray cover 16 m or more, and the S-type cannon throws water 30 m or more, adjustable from a direct jet to mist for trees, dust control and road washing.
